Tannoy Gold 5 Specifications

System
  • Frequency response

    70Hz - 20kHz +/-3dB
    49Hz - 20kHz -10dB

  • Nominal dispersion

    90 deg. conical at -6dB point

  • Maximum SPL

    107dB

  • Crossover type

    2 way, active

  • Crossover frequency

    2kHz

  • Transducers

    1x 5" (127mm) LF driver
    1x 0.8" (20mm) HF drivers

  • Limiter

    Independent high and low frequency limiters

  • Magnetic shielding

    No

Amplifier

Jump to...
  • Maximum output power

    200W

  • Amplifier Type

    Class-AB

  • Protection

    Short circuit, thermal

Connectors

Jump to...
  • Inputs

    1x XLR, balanced
    1x 1/4" TRS, balanced
    3.5mm stereo mini jack

  • Sensitivity

    0dBu, nominal

  • Input impedance

    5kOhms unbalanced, 10kOhms balanced

  • Maximum input level

    +20dBu

  • Outputs

    Monitor link, 3.5mm stereo mini jack

  • User controls

    Power on / off , Input trim, HF trim, Bass adjustment, Auto-standby on / off

Power Supply

Jump to...
  • Power consumption

    50W at 1/8 max power

  • Voltage

    100-240V, 50/60Hz (T 3.15 A L 250 V) (fuses)

  • Mains supply

    IEC mains connector with integrated power switch

General

Jump to...
  • Dimensions (HxWxD)

    294 x 183 x 252mm (11.57 x 7.20 x 9.92")

  • Weight

    12.8 lbs (5.81kg)

  • UPC Code

    4033653103619

2 Accessories for Tannoy Gold 5 Premium 200W Bi-Amplified Nearfield Studio Reference Monitor with Proprietary 5" Dual Concentric Point Source Technology

  • All Accessories (2)
  • Speaker Accessories (1)
  • Monitoring Accessories (1)

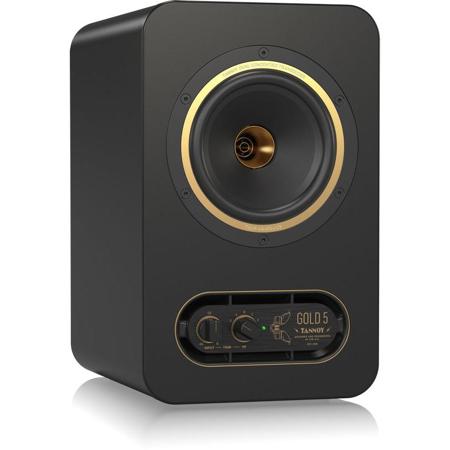

About Tannoy Gold 5

Just as a painter needs a clear, well-lit canvas to create a masterpiece, audio professionals require a studio reference monitor that delivers an accurate, uncolored representation of their work. The Gold 5 Premium 200W Bi-Amplified Nearfield Studio Reference Monitor, with its proprietary 5" Dual Concentric Point Source Technology, is designed to meet the exacting demands of recording, broadcasting, and post-production environments.

This high-quality monitor, engineered to the highest standards, will impress both seasoned Tannoy users and those taking their first step into the world of professional audio equipment. The Gold 5's unrivaled performance is a testament to Tannoy's enduring commitment to perfection, with every new product representing another historic chapter in our journey of advancing the art and science of building world-class reference monitors.

At the heart of the Gold 5's superior performance is an all-new iteration of our legendary Tannoy Dual Concentric Driver Technology. With seven decades of refinement, this technology ensures a near-perfect point source, preserving the tonal character and harmonic structure of program material in a way that no discrete-driver system can. The result is a flat response, controlled dispersion, and a wider sweet-spot in both the horizontal and vertical planes.

The Gold 5's Point Source Tulip Waveguide replicates the natural single point sound source, delivering an exceptionally natural performance with a wide imaging "sweet-spot". This innovative feature, combined with symmetrical dispersion, provides a broad soundstage with remarkably focused and accurate stereo imaging.

Designed to function in a wide variety of environments, the Gold 5 comes equipped with HF trim control and a rear panel filter switch. This allows you to adapt the monitor's low frequency characteristics to suit different room acoustics.

The Gold 5's Class-AB bi-amplification combines the linear performance of Class-A with the higher efficiency performance of Class-B, producing a superior amplifier design for critical listening environments.

With flexible connectivity options, the Gold 5 allows you to connect up to two audio sources simultaneously via its continually-active XLR and TRS inputs. It also includes switchable intelligent signal sensing circuitry, ensuring your monitors switch into an environmentally friendly, power-saving stand-by mode when not in use.

The Gold 5 Dual Concentric Studio Reference Monitor continues Tannoy's long and storied legacy, a legacy that has seen many of the world's greatest hits recorded and mixed using our studio monitors. With greater low frequency extension, higher output, and enhanced reliability, the Gold 5 is more than just a monitor; it's a trusted reference for every project.

Tannoy Gold 5 Features

  • Premium 200 Watt bi-amped nearfield studio reference monitor for accurate sound reproduction with outstanding definition
  • Ultra precise and neutral soundstage delivers non-fatiguing sound for extended listening sessions
  • Legendary Tannoy Dual Concentric driver technology provides class-leading phase coherence and point-source imaging
  • Front-firing bass port design allows for near-wall placement and ensures optimal low frequency performance
  • Next generation 5"Dual Concentric driver secures unrivalled musical articulation and outstanding dynamics
  • 0.75" titanium tweeter with Tulip waveguide produces detailed stereo image with widened "sweet spot"
  • Class-AB system with transducer-matched LF and HF bi-amplification for accurate dynamics
  • Continually-active XLR and TRS phone jack inputs let you connect up to 2 audio sources
  • Dedicated input trim, bass and treble controls let you optimize the audio for your listening conditions
  • Selectable automatic standby mode conserves energy
  • Tannoy over 90 years of British audio innovation
  • 3-Year Warranty Program
  • Designed and engineered in the U.K

Key Features

  • Provides flexible connectivity with continually-active XLR and TRS inputs

What's in the box:

  • Tannoy Gold 5 Premium 200W Bi-Amplified Nearfield Studio Reference Monitor
  • Mains Cord
  • 5m 3.5mm Mini-Jack Cable
  • Tannoy 3 Year Warranty
