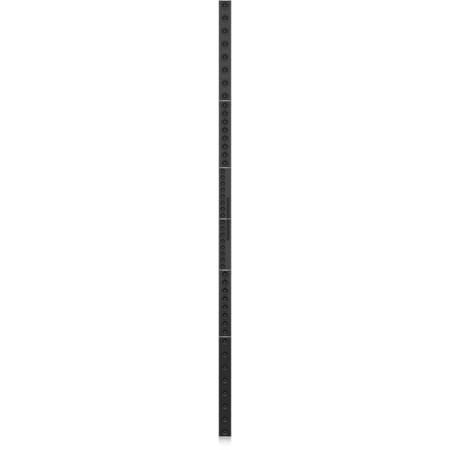

Tannoy QFLEX 64-WP Digitally Steerable Powered Column Array Loudspeaker with 64x Independently Controlled Drivers, Weather Protected

The QFLEX 64-WP is a powered, digitally steerable multi-channel, column array loudspeaker designed as a complete solution for installed applications with challenging acoustics, such as houses of worship, transportation hubs, convention centers, conference facilities, shopping malls, performing arts centers and museums. Certified for water and dust ingress protection to IP54 standard, QFLEX 64-WP is an exceptional choice for indoor swimming pools or work areas with unusually high levels of dust or moisture, as well as outdoor applications where weather conditions are moderate.

The heart of the system is our proprietary VNET loudspeaker networking platform, which comprises both software and hardware DSP components that produce extremely-high speech intelligibility, impactful music reinforcement and complete loudspeaker system diagnostics and monitoring.

Class-Leading Control
While many competing steerable arrays allow only a modest steering range across specific frequencies, the QFLEX 64-WP has a class-leading +/-70 deg. steering control, plus 64 channels of integrated DSP and amplification for consistent and highly intelligible full-range voice and music applications.

A Revolution in Sound Technology
The first digitally steerable column array loudspeaker of its kind, QFLEX 64-WP's revolutionary BeamEngine technology steers the full-range sound away from surfaces that cause reflections. The intuitive BeamEngine GUI allows the designer to specify target areas. Rather than only providing a limited palette of opening and steering angles, the BeamEngine GUI generates a steering algorithm that is tailored for that specific area. The resulting asymmetrical pattern delivers similar sound pressure levels (SPL) in both the near and far field for superb coverage and intelligibility - all in a very aesthetically-pleasing package.

Drivers, Power & DSP
The QFLEX 64-WP column array loudspeaker comprises thirty-two 4" low frequency drivers, sixteen 3" low frequency drivers and sixteen 1" high frequency drivers, each with their own individual 100 Watt Class D amplifier and integrated cutting edge DSP. Presented in a high density array with proportional frequency spacing, QFLEX 64-WP's drivers provide digitally-steerable coverage for distances up to 100m (328') - with no aliasing artefacts. A robust internal DSP engine works seamlessly with the proprietary VNET and BeamEngine software.

Scalability
Designed to provide premium-grade performance as a standalone self-powered column array, QFLEX 64-WP is also an exceptional choice for multiple-column configurations consisting of other TANNOY VNET enabled products. Implementation of the network between nodes is via high-quality rugged Neutrik Ethercon connectors, which are compatible with standard RJ45 plugs and CAT5 cable. Each speaker has a unique address for auto-location on the network.

System Add-Ons
A wide range of accessory options are available for the VNET-enabled QFLEX 64-WP including: The VNET ETHERNET INTERFACE; VNET USB RS232 INTERFACE; VNET2-AES INTERFACE, VNET INTERFACE POWER SUPPLY; VNET INTERFACE RACK MOUNT; SENTINEL SM1, for monitoring VNET networked PA/VA systems, as well as the QFLEX ISOLATOR, for eliminating potential ground/hum issues.

IP54 & PA/VA Compliant
In addition to its IP54 water and dust resistance certification, QFLEX 64-WP's high level of telemetry functionality renders it fully PA/VA compliant for use in any life safety or mass notification environment.

Build Quality
The architecturally styled corrosion resistant aluminum enclosure and perforated grille are finished in a semi matt white paint. The QFLEX 64-WP also includes the necessary custom mounting hardware for quick and accurate installation.
