Tannoy VSX118B Specifications

System
  • Frequency response

    40 Hz - 3 kHz, +/-3 dB
    32 Hz - 4 kHz, -10 dB

  • Recommended low pass crossover

    80 - 300 Hz, 24 dB/Oct

  • Nominal dispersion

    Half space

  • Power handling (IEC)

    1000 W continuous, 4000 W peak

  • Sensitivity

    99 dB (1 W @ 1 m)

  • Maximum SPL

    129 dB continuous, 135 dB peak

  • Impedance

    8 Ohm

  • Components

    1x 18" (460 mm) LF driver

Enclosure

Jump to...
  • Connectors

    2x Neutrik speakON NL4
    1 x barrier strip terminals

  • Wiring

    Pins 1+ / 1- input, pins 2+ / 2- link

  • Construction

    18 mm (3/4") plywood

  • Finish

    Semi matt black paint (white optional)

  • Grille

    Powder coated perforated steel

  • Color

    Black

  • Dimensions (H x W x D)

    23.4 x 25.6 x 25.6" (594 x 650 x 650mm)

  • Net weight

    94.9 lb (43.1kg)

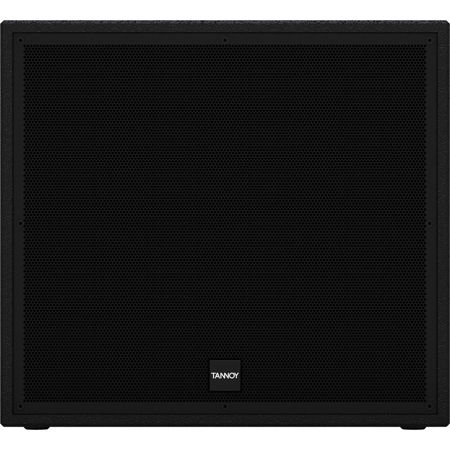

About Tannoy VSX118B

The 4,000-Watt VSX118B is a direct radiating passive 18" subwoofer that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable, and touring audio systems. VSX118B's superb low frequency reproduction makes it the perfect choice for deployment in clubs, bars, theatres and AV applications.

Stunning Performance
A ported bass reflex system, the VSX118B features a high powered 18" low frequency driver that provides extended low frequency response to well below 40 Hz - for chest-pounding bass. Fast and accurate transient response enables the VSX118B subwoofer to generate copious quantities of tight low end output that is virtually distortion-free.

Versatility
VSX118B Subwoofers can be easily deployed in a multitude of configurations, thanks to the integral M10 rigging points and blanking plate for an optional VTH pole mount. For touring and portable applications, the enclosures also feature our Integrip handles, which are ergonomically integrated into the top of each cabinet.

Construction and Connectivity
Finished in a hard wearing semi matt black paint, the cabinet is constructed of internally braced plywood and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. The rear panel connector plate carries Neutrik speakON NL4 and barrier strip connectors for input and link connections to accommodate additional subwoofer, or satellite full range loudspeakers.

Tannoy VSX118B Features

  • Compact direct radiating subwoofer for portable and installation applications
  • 1,000 Watts continuous, 4,000 Watts peak power
  • 18" driver for extended low frequency response to below 40 Hz
  • Low distortion dual port design for maximum sound pressure levels
  • Ideal for background music playback in clubs, bars, theatres and AV applications
  • Internally braced plywood enclosure
  • Finished with a hard wearing semi matt black paint finish
  • Rugged powder coated perforated steel mesh grille
  • Blanking plate for optional VTH pole mount
  • Integral M10 rigging points for ease of installation
  • Integrip handles ergonomically integrated into top of cabinet
  • Neutrik speakON NL4 and barrier strip connectors for input and link output
  • Designed and engineered in the U.K.

Key Features

  • Compact direct radiating subwoofer for portable and installation applications
  • 1,000 Watts continuous, 4,000 Watts peak power
  • 18" driver for extended low frequency response to below 40 Hz
  • Low distortion dual port design for maximum sound pressure levels
  • Ideal for background music playback in clubs, bars, theatres and AV applications
  • Internally braced plywood enclosure

What's in the box:

  • 18 " Direct Radiating Passive Subwoofer (Black)
  • Tannoy 10 Year Limited Warranty
