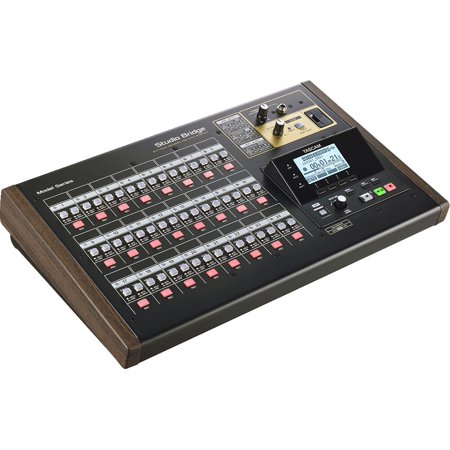

Tascam Studio Bridge 24-Track Recorder and USB Audio Interface with MIDI

SKU: TASTUDIOBRDG MFR: STUDIO BRIDGE
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this 24-track recorder, perfect for studio and live recordings.
  • Seamless USB audio interface connectivity ensures easy integration with your favorite DAW software.
  • Achieve low latency performance for real-time monitoring and recording with this audio interface.
  • Utilize MIDI capabilities to synchronize external instruments and devices for complex arrangements.
  • Enjoy high-quality sound with a wide dynamic range, ideal for professional audio production tasks.
  • Record directly to SD cards for a portable recording solution, eliminating computer dependency.
See More Product Details
Special Order?Estimated to Ship: 09/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Tascam Studio Bridge Specifications

Recorder

Recorder

Jump to...
  • Supported media

    SD (512 MB to 2 GB), SDHC (4 GB to 32 GB), SDXC (64 GB to 512 GB)
    Note: (Class 10 or higher)

  • Recording format

    WAV (BWF)

  • Playback format

    WAV (BWF)

  • Sampling rate

    44.1/48 kHz

  • Quantization bit depth

    16-bit / 24-bit

  • Maximum number of recording tracks

    24

  • Max number of input & output channels

    Inputs: 24 / Outputs: 24

Analog audio input/output ratings

Jump to...
  • Line input connectors

    (1-8, 9-16, 17-24)
    Connector: 25-pin balanced D-sub
    Fixed screws: No. 4-40 UNC (inch type)
    Maximum input level: +24 dBu
    Nominal input level: +4 dBu
    Input impedance: 10 k Ohm or more

  • Line output connectors

    (1-8, 9-16, 17-24)
    Connector: 25-pin balanced D-sub
    Fixed screws: No. 4-40 UNC (inch type)
    Maximum output level: +24 dBu
    Nominal output level: +4 dBu
    Output impedance: 200 Ohm

  • Phones/Local Monitor Jack

    Connector: 1/4" (6.3mm) standard stereo jack
    Maximum output: 80 mW + 80 mW (into 32 Ohm load)
    Working impedance: 16 to 600 Ohm

Control input/output ratings

Jump to...
  • USB

    Connector: USB Type-B
    Transfer format: USB 2.0 High-Speed
    Device classes: Mass storage, USB audio class 2.0 (USB class compliant)

  • USB audio

    Sampling rate: 44.1 kHz / 48 kHz
    Quantization bit depth: 24-bit
    Number of inputs: 24 channels (Output from this unit)
    Number of outputs: 24 channels (Input to this unit)

  • Click Out Jack

    Connector: 1/4" (6.3mm) standard TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)

  • Footswitch Jack

    Connector: 1/4" (6.3mm) standard TRS jack (Tip: FOOTSW1, Ring: FOOTSW2, Sleeve: GND, supports momentary (unlatch) types)

MIDI OUT connector

Jump to...
  • Midi Out Connector

    Connector: 5-pin DIN
    Format: MIDI 1.0

MIDI IN connector

Jump to...
  • Midi In Connector

    Connector: 5-pin DIN
    Format: MIDI 1.0

  • Power

    AC 100-240 V, 50/60 Hz

  • Power consumption

    20W

Environmental

Jump to...
  • Operating temperature range

    32-104 Degree F (0-40 Degree C)

  • Operating humidity range

    5-85% (without condensation)

Audio performance

Jump to...
  • Frequency response

    20 Hz - 20 kHz (+0.3/-0.7 dB, 1 kHz)

  • Dynamic range

    100 dB or more (22kHz LPF + A-weight)

  • Total harmonic distortion ratio

    0.003% or less (1 kHz, at maximum input level) (THD+N)

  • Crosstalk

    -100 dB or less (1kHz BPF)

Recording times

Jump to...
  • Recording format

    Recording time (hours: minutes) for 32GB card

  • 16-bit/44.1kHz WAV, 24 tracks

    4:10

  • 16-bit/48kHz WAV, 24 tracks

    3:50

  • 24-bit/44.1kHz WAV, 24 tracks

    2:47

  • 24-bit/48kHz WAV, 24 tracks

    2:33

Physical

Jump to...
  • Dimensions (W x H x D)

    With side panels: 17.57 x 4.51 x 10.61" (446.5 x 114.6 x 269.5mm) (including protrusions)
    Without side panels: 16.32 x 4.51 x 10.61" (414.6 x 114.6 x 269.5mm) (including protrusions)

  • Weight

    9.92 lbs (4.5kg)

  • UPC Code

    4907034135417

About Tascam Studio Bridge

Take your recording and mixing capabilities to the next level with the Tascam Studio Bridge 24-Track Recorder and USB Audio Interface with MIDI. This versatile device serves as the perfect bridge between your analog mixers and digital recording setups, whether you prefer using a Digital Audio Workstation (DAW) or a DAWless configuration. Preserve the rich, warm tones of your analog mixing console while seamlessly tracking and mixing to your DAW of choice or directly to the Studio Bridge's onboard multitrack recorder. Once recorded, tracks can be returned to your analog console for mix summing, transforming digital recordings into lush analog productions.

The Studio Bridge offers a 24-channel modular multitrack recording solution, allowing you to connect your analog mixer and effortlessly record and mix 24 tracks without the need for a computer. Sum your mixes to the onboard recorder and export stereo mix .wav files for professional, release-ready productions.

As a 24-IN/24-OUT audio and MIDI interface, the Studio Bridge provides an easy connection between your analog mixer and DAW, ensuring your recordings maintain that true analog flavor. Record directly into any DAW and create summed mixes using your console and outboard gear with audio returns. The device also functions as a DAW transport controller, featuring Rec/Play/Stop and Rec Ready buttons that integrate directly with your DAW for streamlined operation. The included control software offers a digital meter bridge for PC/Mac, enabling precise monitoring of audio levels on each channel, including the stereo master bus.

MIDI synchronization is a breeze with the Studio Bridge, thanks to its MIDI In/Out ports. Integrate your favorite drum machines, sequencers, synths, and controllers into any production, enhancing your creative workflow with your trusted analog hardware.

In live recording scenarios, the Studio Bridge transforms into a mobile recording studio when connected to your mixing console, eliminating the need for complex systems or computers. With 24 inputs and outputs over DB25 connectors, the Studio Bridge is equipped to handle larger productions while preserving the integrity of your analog signal chain, as it operates without preamps.

Additional features include a dedicated headphone/local monitor section for monitoring inputs and track sources, a solo function for quick isolation of any of the 24 inputs, and an internal metronome with a dedicated TRS click output to keep performers in sync. Whether you're working with a DAW system, a DAW-less setup, or engaging in multitrack live recording, the Tascam Studio Bridge is designed to meet all your audio production needs with precision and ease.

Tascam Studio Bridge Features

  • On-board 24-track multitrack recorder using SDXC SD card (punch-in/out supported)
  • 24-IN/24-OUT USB audio interface
  • 24 DB25 analog line level input and output
  • DAW transport control and REC READY control via HUI/MCU
  • Dedicated Settings Panel application with Meter Bridge MIDI IN/OUT allows USB MIDI interface and MIDI sync, 1/4" audio click output with tempo control
  • Headphone and Local Monitor Output
  • Dual Footswitch control
  • 44.1k/48kHz 16/24bit WAV(BWF) format
  • Recording media SD card up to 512GB
  • MTC output and MIDI clock with Song Position Pointer
  • Built in Metronome and Click Out
  • 19" Rack-mountable with optional AK-RMSTBG

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Capture pristine audio with this 24-track recorder, perfect for studio and live recordings.
  • Seamless USB audio interface connectivity ensures easy integration with your favorite DAW software.
  • Achieve low latency performance for real-time monitoring and recording with this audio interface.
  • Utilize MIDI capabilities to synchronize external instruments and devices for complex arrangements.
  • Enjoy high-quality sound with a wide dynamic range, ideal for professional audio production tasks.
  • Record directly to SD cards for a portable recording solution, eliminating computer dependency.

What's in the box:

  • Tascam Studio Bridge 24-Track Recorder and USB Audio Interface with MIDI
  • Power Cord
  • User Manual
  • Tascam 1 Year Limited Warranty
