38% Off

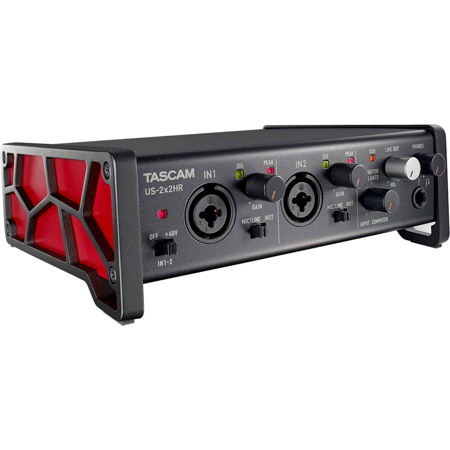

Tascam US-2x2HR 2Mic, 2In/2Out High Resolution Versatile USB Audio Interface

SKU: TAUS2X2HR MFR: US-2X2HR
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this 2In/2Out USB audio interface, ideal for home recording.
  • Experience low latency recording with stable drivers, perfect for virtual instruments.
  • Create professional recordings using high-resolution 24-bit/192 kHz audio fidelity.
  • Utilize the versatile interface for podcasting, streaming, or music production needs.
  • Easily connect mics & instruments with XLR/TRS inputs on this Tascam audio interface.
  • Enjoy seamless integration with your favorite DAW using this USB audio interface.
See More Product Details
Special Order?Estimated to Ship: 09/09/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Tascam US-2x2HR Specifications

Sampling Frequency

Sampling Frequency

Jump to...
  • Sampling Frequency

    44.1k/48k/88.2k/96k/176.4k/192k Hz

Quantization Bit Rate

Jump to...
  • Quantization Bit Rate

    24bit

Analog Audio Inputs: Mic In (In 1/2)

Jump to...
  • Connector

    XLR-3-31(1:GND, 2:HOT, 3:COLD), Balanced

Analog Audio Inputs: Mic In (In 1)

Jump to...
  • Input Impedance

    2.2k ohms

  • Maximum Input Level (Gain:Min)

    +9dBu (2.183Vrms)

  • Gain Range

    56dB

Analog Audio Inputs: Inst In (In 1/2)

Jump to...
  • Connector

    1/4" (6.3mm) TRS-jack (T:HOT, R:COLD, S:GND), Unbalanced

  • Input impedance

    1m ohms or more

  • Maximum input level (Gain:Min)

    +10dBu(3.162Vrms)

  • Gain Range

    56dB

Analog Audio Inputs: Line In (In1/2)

Jump to...
  • Connector

    1/4" (6.33mm) TS-jack(T:HOT, S:GND), Balanced

  • Input impedance

    10k ohms

  • Maximum input level (Gain:Min)

    +20dBu(7.746Vrms)

  • Gain Range

    56dB

Analog Audio Outputs: Line Out (1-2)

Jump to...
  • Connector

    1/4" (6.33mm) TRS-jack(T:HOT, R:COLD, S:GND), Balanced

  • Output impedance

    210 ohms

  • Nominal output level

    +4dBu (1.228Vrms)

  • Maximum output level

    +20dBu (7.746Vrms)

Analog Audio Outputs: Phones

Jump to...
  • Connector

    1/4" (6.33mm) stereo phone jack

  • Maximum output level

    18mW+18mW or more
    (THD+N 0.1% or less, 32 ohms loaded)

Analog Audio Outputs: MIDI In/Out

Jump to...
  • Connector

    Din 5-pin

  • Format

    Standard MIDI format

Analog Audio Outputs: USB

Jump to...
  • Connector

    USB Type-C

  • Format

    USB2.0 High Speed (480Mbps)

Analog Audio Outputs: Power

Jump to...
  • Connected PC

    USB bus powered
    AC Adapter (TASCAM PS-P520E, sold separately)

  • Connected iOS/iPadOS

    AC Adapter (TASCAM PS-P520E, sold separately)

  • Power consumption

    1.75W

Environmental

Jump to...
  • Operating temperature

    41 Degree F to +95 Degree F (5 Degree C to +35 Degree C)

Audio Performance

Jump to...
  • Mic amp EIN (equivalent input noise)

    -128dBu or lower

  • Frequency response: Mic/Line In 1

    44.1k/48k Hz: 20Hz to 20kHz, +0dB/-0.4dB(JEITA)
    88.2k/96k Hz: 20Hz to 40kHz, +0dB/-0.4dB(JEITA)

  • Frequency response: Line Out

    44.1k/48k Hz: 20Hz to 40kHz, +0.2dB/-0.1dB(JEITA)
    88.2k/96k Hz: 20Hz to 40kHz, +0.2dB/-0.4dB(JEITA)

  • THD + N

    0.0013% (MIC IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF)
    0.0011% (LINE IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF)
    0.0012% (LINE OUT, 1kHz sine wave, -4dBFS input, MONITOR knob at maximum, 20kHz SPCL LPF)

  • S/N ratio

    110dB (MIC IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight)
    108dB (LINE IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight))
    110dB (LINE OUT, MONITOR knob at maximum, 20kHz SPCL LPF+A-Weight)

  • Crosstalk

    95dB or more (MIC/LINE IN to LINE OUT, 1kHz sine wave, GAIN knob at minimum)

Windows

Jump to...
  • Compatible computers

    Windows computer with a USB 2.0 (or higher) port

  • CPU type/speed

    2GHz or faster dual core processor (x86)

  • Memory

    2GB or more

  • Driver

    ASIO ASIO2.0, WDM, MIDI

  • Compatible computers

    Mac with a USB 2.0 (or higher) port

  • CPU type/speed

    2GHz or faster dual core processor

  • Memory

    2GB or more

  • Driver

    Core Audio, Core MIDI

iOS/iPadOS device

Jump to...
  • Driver

    Core Audio

General

Jump to...
  • USB audio I/F

    2In/2Out

  • Mic-preamp

    2

  • MIDI I/O

    Available

  • Bus Power

    Available

Physical

Jump to...
  • Dimensions (W x H x D)

    5.74 x 2.16 x 0.78" (186 x 65 x 160mm)

  • Weight

    2.43 lbs (1.1kg)

  • UPC Code

    043774034673

About Tascam US-2x2HR

What sets the US-2x2HR 2Mic, 2In/2Out High Resolution Versatile USB Audio Interface apart is its professional-grade quality, versatility, and reliability. Designed for music production, podcasting, and live streaming, this durable audio interface features two combo jack mic/line inputs with guitar input support, and MIDI IN/OUT ports for seamless integration with other devices.

The US-2x2HR is more than just an audio interface; it's a comprehensive solution for all your audio needs. Its high-resolution 24-bit/192kHz D/A converter ensures crystal-clear audio playback and recording, while the implemented loopback function and OBS support make it an ideal choice for podcasters and live streamers.

This versatile USB audio interface is equipped with a newly improved audio circuit, delivering enhanced audio performance for the most transparent and low-noise sound. The in-house developed Ultra-HDDA mic preamp supports high-resolution reproduction, adhering to TASCAM's policy of recreating sound as close to the original as possible.

The US-2x2HR also features a zero-latency direct monitoring function, which diverges signals before sending them to the computer, ensuring smooth, in-time monitoring without any sound delay during both recording and performance.

To further enhance your production workflow, the US-2x2HR comes bundled with world-renowned software, including Steinberg's Cubase LE/Cubasis LE 3 DAW and IK Multimedia's Sample Tank SE, complete with a massive 30 GB sound library encompassing more than 2,000 different musical instruments. A free 3-month subscription to Auto-Tune Unlimited, a comprehensive suite of industry-standard pitch correction and vocal effects, is also included.

The US-2x2HR's robust metal casing is designed to withstand long hours of hard use. Its sleek design, featuring dye-cast aluminum side panels, not only improves its durability but also adds an eye-catching aesthetic to your setup. With its optimal weight, the US-2x2HR stays put when cables are connected or disconnected, ensuring a stable and reliable audio recording environment.

Whether you're recording vocals, guitars, or using it as an interface for your iPad or other iOS devices, the US-2x2HR 2Mic, 2In/2Out High Resolution Versatile USB Audio Interface offers a high-quality, professional solution for all your audio needs.

Tascam US-2x2HR Features

  • Compatible with iPad and other iOS devices
  • 2-in/2-out USB audio interface
  • Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
  • Supports up to 24-bit/192 kHz audio formats
  • 2 Combo (XLR) combo inputs equipped with Ultra-HDDA mic preamps and +48V phantom power
  • 2 Combo (TRS) line inputs with guitar input support
  • TRS line output 1-2
  • Headphone output
  • Equipped with MIDI IN/OUT terminals
  • USB Type-C connection (USB Type-A to Type-C cable included)
  • Powered by USB bus power
  • Zero-latency direct monitoring
  • Extensive line-up of bundled software: Steinberg Cubase LE, Cubasis LE 3, IK Multimedia Sample Tank 4 SE, Antares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)
  • Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
  • OBS support

Product Documents

User Manual

Key Features

  • Capture pristine audio with this 2In/2Out USB audio interface, ideal for home recording.
  • Experience low latency recording with stable drivers, perfect for virtual instruments.
  • Create professional recordings using high-resolution 24-bit/192 kHz audio fidelity.
  • Utilize the versatile interface for podcasting, streaming, or music production needs.
  • Easily connect mics & instruments with XLR/TRS inputs on this Tascam audio interface.
  • Enjoy seamless integration with your favorite DAW using this USB audio interface.

What's in the box:

  • Tascam US-2x2HR 2Mic 2In/2Out High Resolution Versatile USB Audio Interface
  • USB Cable (Type-A to Type-C)
  • Set of DAW Software Installation Guides
  • Set of DAW Plug-in Software Installation Guides
  • Owner's Manual
  • Tascam 1 Year Limited Warranty
