Telemetrics inTELEgent PTZ Camera Control Panel

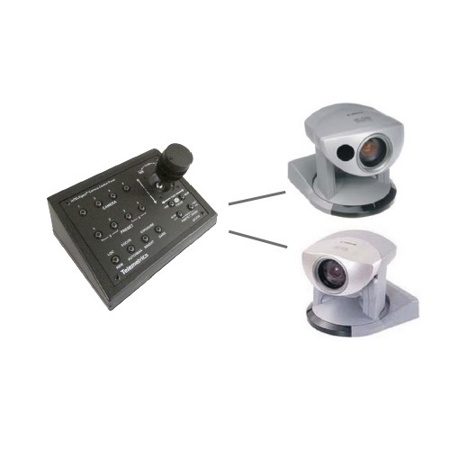

The Telemetrics inTELEgent CP-ITV4-C is an RS-232 serial desktop control panel designed to control Canon PTZ camera models VC-C4, VC-C50, VC-C50i and VC-C50iR. The new intelligent proportional rate joystick provides smooth, simultaneous control of pan, tilt and zoom. The joystick speed sensitivity for pan/tilt movement is adjusted automatically based on the zoom position. Switches are provided to control focus and iris of each camera lens. With six stored presets, pan, tilt, zoom and focus positions, for up to four cameras can be recalled by selecting switches provided.

In addition, user adjustable joystick speeds provide extreme fine control of the pan and tilt. Interacting local and remote control panels, RS-232 interconnected, can control the cameras at either location by selecting the front panel Local/Remote switch. RS-232 addressable external video switchers are also controllable when operating camera select buttons.

Accessories include P/T/Z camera ceiling mount bracket (CAM-CMBKT) and wall mount brackets (CAMWMBKTDH, CAMWMBKTHD1). The pan/tilt video cameras may be connected using daisy chain wiring or home run wiring. Various interconnecting cable accessories are available (not included).
