50Hz - 18kHz +/-3dB
42Hz - 20kHz -10dB
75 deg. H x 55 deg. V at -6dB points, rotatable
132dB peak
Active
1x 15" (387mm) LF driver
1x 1" (25.4 mm) HF compression driver
Independent HF, LF, peak and rms
2,500W
Class-D
Short circuit, open circuit, thermal
2x combo jack/XLR
Line +4 dBu, mic -22 dBu, switchable
20kOhms unbalanced, 40kOhms balanced
+21 dBu
2x XLR Linked to input
XLR, balanced
100Ohms unbalanced, 200Ohms balanced
2x RJ45
Neutrik powerCON input 20A and link 15A
Rotary push-encoder
Buttons for PROCESS, SETUP, EXIT, ENTER
2x gain controls (channels A and B)
2x Line/Mic switch
Positioning, Sound mode
Sound modeling, FBQ
LCD 128 x 32, blue backlit
0 - 300 ms
High and low shelving EQ
2x parametric EQ
Zero attack input limiter
20 total presets, 19 user-definablenable
High Pass L-R 24 dB/oct
Lock-out function for all settings
Signal: 16 channels
Latency: < 0.9 ms
Cables: Shielded CAT5
Cable length: max. 246' / 75m recommended
200W at 1/8 max power
120V, 60 Hz (T 15 A H 250 V)
Injection-moulded polypropylene enclosure
Powder coated perforated steel
602 x 444 x 495mm / 23.7 x 17.48 x 19.49"
30.6kg / 67.46lbs
4033653013086
Models | SKU: TBIQ15B MFR: 000-APN02-00010 $959.00 On Backorder Order now, your card will not be charged until it is ready to ship. | $949.00 Special Order Generally ships in 7-14 days, subject to availability | $849.00 On Backorder Order now, your card will not be charged until it is ready to ship. |
---|---|---|---|
Size | 15" | 18" | 15" |
Speaker Type | - | - | Compact Subwoofer |
Sub Power Type | Active Subwoofer | Active Subwoofer | Active Subwoofer |
Power Type | Active Subwoofer | Active Subwoofer | Active Subwoofer |

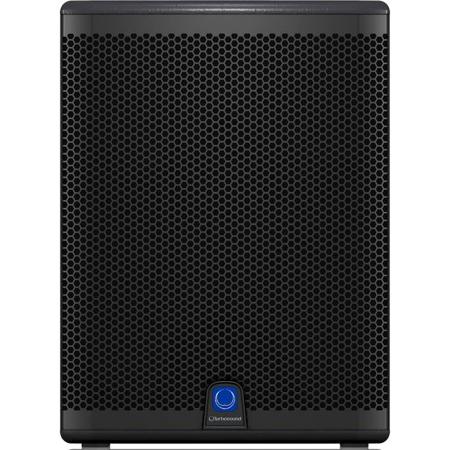

After extensive research and development, the iQ15B 15" Front-Loaded Powered Subwoofer emerges as a powerhouse in the audio industry. With a maximum output power of 3000 Watts, this subwoofer is designed to deliver superior sound quality for a wide array of applications, ranging from portable setups to fixed installations, and catering to both music and speech sound reinforcement needs.
The iQ15B is equipped with a high-excursion 15" low-frequency driver, featuring a double suspension low mass 4" voice coil. This design ensures a fast and accurate transient response, facilitating virtually distortion-free operation, even during the most demanding performances.
At the heart of the iQ15B is a highly efficient and lightweight KLARK TEKNIK Class-D power amplifier, capable of delivering a staggering 3000 Watts of output power. This is complemented by a sophisticated KLARK TEKNIK Digital Signal Processor (DSP), which provides dynamic EQ and transparent limiting, ensuring maximum punch and definition at high output levels, while also guaranteeing long-term reliability.
The iQ15B's advanced DSP speaker modeling presets include detailed and accurate models of some of the most respected speaker systems in the audio industry. The rear panel amplifier module features a fully-featured user interface, complete with an LCD display, Channel A/B gain control, and a single rotary encoder for easy access to level, EQ, Speaker modeling, and Feedback Control (FBI).
The iQ15B also boasts two combination balanced XLR/jack inputs and balanced XLR outputs for powered satellite loudspeakers, a mic/line switch, and a level control with a signal present LED. The subwoofer's proprietary ULTRANET technology allows for the use of CAT5 cables to transmit pristine multi-channel audio signals and other information between ULTRANET-enabled products, such as digital mixers, powered loudspeakers, and personal monitor systems.
This digital distribution networking not only eliminates potential RFI and crosstalk common to analogue methods but also significantly reduces setup or installation time. An onboard USB port provides access for remote control of the iQ15B via a PC, as well as DSP and speaker modeling firmware updates.
The iQ15B is housed in a birch plywood enclosure, finished in a hard-wearing semi-matt black paint and fitted with a rugged powder-coated perforated steel mesh grille. It also features a 35mm pole mount to support a satellite speaker and plated steel castors with rubber tires. Mains power input and link output are provided via Neutrik powerCON connectors, ensuring a seamless and secure connection.
