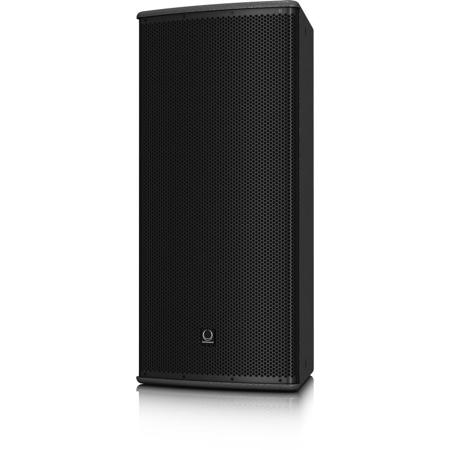

Turbosound Athens TCS-122 Arrayable 2-Way 12" Full Range Loudspeaker with Dendritic Waveguide, 2400W Peak Power, 60x40deg. Dispersion Pattern, Single, Black

The 2 way full range TCS122/64 is a switchable passive/bi-amp 12" 2,400 Watt arrayable loudspeaker system that is ideally suited for a wide range of speech and music sound reinforcement applications. The TCS122/64 is designed to work in conjunction with Turbosound loudspeaker management systems, providing optimal FOH performance, as well as offering considerable flexibility to readily adapt to varying venue requirements. The TCS122/64 arrayable loudspeaker features a glass fiber loaded 12" low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response and a titanium dome 1.4" neodymium motor compression driver mounted on a 60 deg. horizontal by 40 deg. vertical Dendritic waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure and bi-amp mode can be enabled by means of a rear panel switch. The rear panel connector plate carries Neutrik speak ON NL4 and barrier strip connectors for input and link connections to additional enclosures.

Turbosound's proprietary HF Dendritic waveguide features multiple horn lets with identical path lengths, which are designed to provide a flat constant-phase wave front with a 60 deg. horizontal by 40 deg. vertical dispersion pattern. When the waveguide is rotated 90 deg. from the standard position, a 40 deg. horizontal by 60 deg. vertical dispersion is achieved, making the TCS122/64 ideal for an even broader range of applications. Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5/8") birch plywood- and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Internal M10 threaded rigging points are provided for suspension in any orientation or mounting with dedicated brackets- available separately. A dedicated range of fly plates and coupler kits are also available separately for constructing tightly packed custom full-range and subwoofer enclosure arrays for aesthetically pleasing and venue specific coverage requirements.
