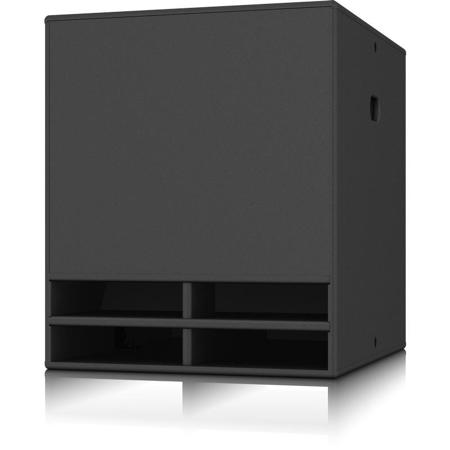

Turbosound Dublin TCX118B 18" Band Pass Subwoofer, 4000W Peak, Black

The DUBLIN TCX118B is a 4,000 Watt 18" dual ported bandpass enclosure that is optimally tuned for extended low frequency response. Engineered to work in conjunction with TURBOSOUND loudspeaker management systems, the TCX118B provides very high output FOH performance and is ideally suited for a wide range of music and live sound reinforcement applications.

• Band pass subwoofer for portable PA and installation applications
• 1,000 Watts continuous, 4,000 Watts peak power
• Double suspension 18" low frequency driver with inside/outside wound coil
• Low distortion dual port design for maximum sound pressure level
• 15 mm (5/8") birch plywood enclosure with hard wearing semi matt black paint finish
• Integral M10 rigging points for ease of installation
• 35 mm pole mount to support satellite speaker
• Neutrik speakON NL4 and barrier strip connectors
• 3-Year Warranty Program

Custom-Engineered Drivers
TURBOSOUND is recognized the world over for designing and building some of the most iconic loudspeakers and subwoofers. They take meticulous care and pride in maintaining that reputation by utilizing only drivers designed specifically for each application - it's what sets them apart from the competition.

The TCX118B features a powerful, double suspension 18" low frequency driver that utilizes a special inside/outside wound voice coil for higher magnetic density, better heat dissipation, high power handling capacity and improved efficiency. For its size and operating bandwidth, the TCX118B delivers extremely high and virtually distortion free output for world-class low frequency performance that will stand the test of time.

Bandpass Enclosure Design
Bandpass enclosures are extremely efficient, creating maximum bass output within a specific frequency range by increasing the acoustic load presented to the driver. The low distortion bandpass design utilized in the TCX118B reinforces the bass musical instrument frequencies and steep cut-off slopes ensure an effective acoustic transition for use with DUBLIN Series full-range loudspeakers. A typical application could consist of a TCX118B providing the low-frequency bass extension for one or two DUBLIN Series top cabinets.

Construction and Connectivity
Constructed from 15 mm (5/8") birch plywood, the cabinet is available in hard wearing semi matt black or optional black textured paint and includes internal M10 threaded rigging points that allow it to be suspended in permanent installations using M10 eyebolts. A pole mount socket is provided to allow two way cabinets to be mounted at the correct height above the subwoofer. The rear connector panel provides two Neutrik speakON NL4 connectors for input and link functions, wired in parallel with a 4-way barrier strip connector.

Rock-Solid Performance
Primarily designed for permanent installations such as houses of worship, banquet facilities, night clubs - and a host of other venues, the 4,000-Watt DUBLIN TCX118B puts touring-grade sound quality into a scalable loudspeaker system. In portable applications the subwoofer can be used with speaker stands or poles, carrying handles are provided for ease of installation and transportation.
