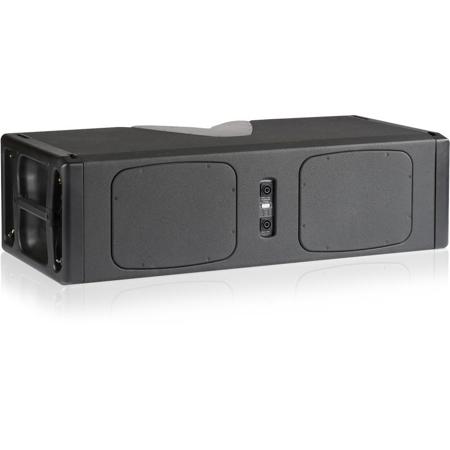

Turbosound FLASHLINE TFS-900H Dual 4-Way 12" Line Array Loudspeaker with Combined Polyhorn and Dendritic Waveguide, 640W Peak Power, Single

The TFS-900H four way flown line array comprises a total of eleven custom designed drive units precisely configured over four frequency bands: three proprietary aluminum dome 1" neodymium motor compression drivers loaded by a Dendritic waveguide, two high efficiency 6.5" neodymium high-mid drivers loaded by a Polyhorn waveguide, four high output horn loaded 6.5" neodymium low-mid frequency drivers and two high excursion horn loaded 12" neodymium low frequency drivers that utilize both front and rear cone radiation for maximum efficiency.

The rigging hardware is fully integrated into the end-cheeks on each side of the TFS-900H cabinet, which also provide grab handle positions. Drop links at the front and rear of the box engage in the flygear of the box above in the array to give a range of inter-cabinet angles from 0deg. to 5deg.. TFS-900H cabinets are normally transported four-Upon the TFS-DOLLY with a heavy duty shower-resistant cover and can be flown directly off the dolly in blocks of four, with the rigging hardware already pre-configured for use. A simple TFS-GRID fly frame and TFS-TIP system is used to fly a typical array; no additional external parts are required to fly the system.

Amplification is provided in the form of the highly advanced and extremely powerful 20000DP four channel amplifier with Lake processing and Dante networking built in. The power capability of the TFS-900H's four frequency bands exactly matches the output of the 20000DP's four output channels, with only four racks of three amplifiers required to deliver optimum energy transfer into a system of 18 TFS-900H tops and 12 TFS-900B subwoofers.

The TFS-900H cabinet is constructed from 15mm birch plywood and finished in black shower-resistant TourTough finish with IP54 rated stainless steel perforated grilles. A recessed rear panel carries two parallel-linked Neutrik speakON NL8 connectors for input and link through connections. Driver maintenance can be performed without removing cabinets from the dolly because all the drivers can be accessed either from the front (the entire mid/high section is removable) or from the rear via the driver access doors.
