This item is no longer available.
Review Summary
35Hz 90Hz +/-3dB
32Hz 100Hz -10dB
Half Space
134dB peak
Active
1x 18" / 457.20mm LF driver
Independent LF, peak and rms
Independent LF, peak and rms
3000W
Class-D
Short circuit, thermal
Short circuit, thermal
1x Combo Jack/XLR, 1x XLR
+4 dBu or +14 dBu software switchable
40 kOhms balanced
+22 dBu
2x RJ45
Neutrik powerCON 20A
Rotary push-encoder and level control
Buttons for process, setup, exit, enter
Positioning, Sound mode FBQ
LCD 128 x 32, blue, backlit
0 - 300 ms
High and low shelving EQ
2x parametric EQ
20 total presets, 19 user-definable
High Pass L-R 24 dB/oct
A/D conversion: 24-bit, 44.1/48 kHz sample rate
Converter type: 24-bit, delta-sigma
Signal 16 channels
Latency: < 0.9 ms
Frequency response: 20Hz to 20kHz (+0 / -3dB)
Dynamic range: typical 92dB
Cables: Shielded CAT5
Cable length: Max. 246' / 74.98m recommended
180W at 1/8 max power
120 V, 60Hz (T 15 A H 250 V)
18 mm (3/4") birch plywood
Powder coated perforated steel
693 x 523 x 725mm / 27.28 x 20.59 x 28.54"
46.3kg / 102.07lbs
748252151643

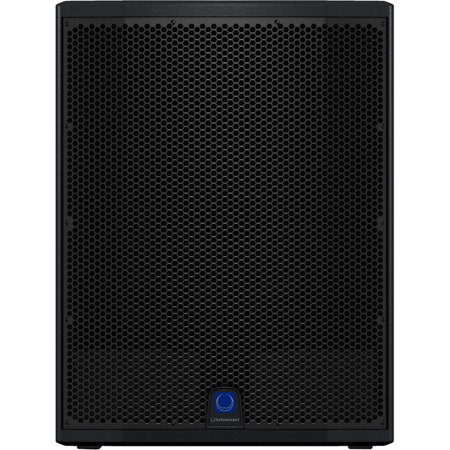

The Siena 3,000 Watt TSP118B-ANis a powered 18" front loaded, bass reflex subwoofer enclosure that is optimally tuned for extended low frequency response. Designed to work individually without a controller, the TSP118B-AN provides very high output FOH performance and is ideally suited for a wide range of music and live sound reinforcement applications.
Front loaded powered subwoofer for portable PA applications
3,000 Watt power featuring KLARK TEKNIK Class-D technology
KLARK TEKNIK Digital Signal Processing for total system control
ULTRANET digital audio networking connects to mixers and other sources
18" low frequency driver with inside/outside wound coil for high power handling
Fully featured user interface with LCD display for ease of navigation
PC remote control software downloadable at Turbosound.com
Low distortion bass reflex port design
18 mm (3/4") birch plywood enclosure with hard wearing semi matt black paint finish
Rugged powder coated perforated steel mesh grille
35 mm pole mount to support satellite speaker
Durable handles for easy lifting and carrying
Mains input on Neutrik powerCON connectors
Designed and engineered in England
Custom-Engineered Drivers
Turbosound is recognized the world over for designing and building some of the most iconic loudspeakers and subwoofers. They take meticulous care and pride in maintaining that reputation by utilizing only drivers designed specifically for each application it's what sets them apart from the competition. The TSP118B-AN features a powerful 18" low frequency driver that utilizes a special inside/outside wound voice coil for higher magnetic density, better heat dissipation, high power handling capacity and improved efficiency. For its size and operating bandwidth, theTSP118B-AN delivers extremely high output that is virtually distortion-free for world-class low frequency performance that will stand the test of time.
