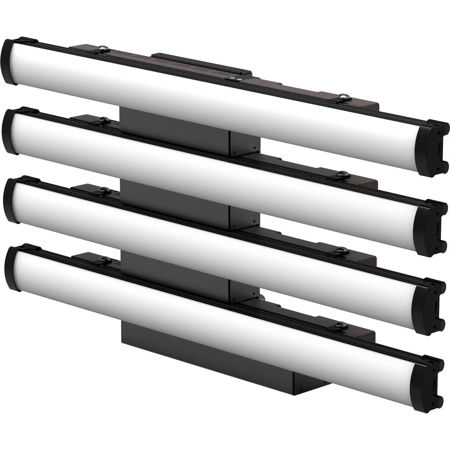

Cineo Lighting LB4-320 LightBlade Edge 4' 320W 4-Blade Fixture with Cables, Baby Pin and Re-Usable Coroplast Box

SKU: TC11000314 MFR: 1100.0314
Earn VIP Reward Points

Key Features

  • Achieve stunning visuals with this 320W LightBlade Edge, perfect for film lighting.
  • Enjoy precise color temperature control from 2700K to 6500K for any scene.
  • Create soft, diffused light with this 4-blade fixture, ideal for portrait photography.
  • This durable LED light wand is designed for years of reliable performance on set.
  • Remotely adjust brightness with DMX control, streamlining your lighting setup.
  • Lightweight design at only 16 lbs, making this LightBlade easy to transport.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Cineo Lighting LightBlade Edge Specifications

Light Fixture

Light Fixture

Jump to...
  • Photometrics

    90 fc / 968.4 lux at 9.84' (3m)

  • Color Accuracy Standard

    CRI 95 at 5600K

  • Color Temperature

    2700 to 6500K

  • Dimming

    Yes, 0 to 100%

  • Cooling System

    Passive

  • Power Source

    AC Adapter

  • Lumens

    20000

Physical Details

Jump to...
  • Dimensions

    48.0 x 12.5 x 4.7" (121.9 x 31.8 x 11.9cm)

  • Weight

    16 lb (7.26kg)

General

Jump to...
  • Battery Plate

    None

  • Remote Control Type

    DMX

  • Certifications

    CE, ETL, as per Manufacturer

  • Operating Temperature

    -4 to 104 Degree F (-20 to 40 Degree C)

  • UPC Code

    856084006793

About Cineo Lighting LightBlade Edge

Because NBCUniversal and Cineo have joined forces to revolutionize the world of creative lighting for Motion Picture and Broadcast, we introduce the LB4-320 LightBlade Edge 4' 320W 4-Blade Fixture. This innovative lighting solution is a key component of the modular LightBlade Edge fixtures, designed with individual Blades that offer unmatched versatility and a low-profile footprint.

Measuring 24" (610mm) or 48" (1.2m) in width and 2 1/2" (64mm) in depth, these individual LightBlades are engineered to illuminate even the most challenging corners of your set discreetly and efficiently. Each LightBlade operates as a stand-alone fixture, equipped with an internal AC power supply and control electronics, offering both DMX and Local control for maximum flexibility.

The LB4-320 LightBlade Edge 4' 320W 4-Blade Fixture is not just a lighting tool, but a powerhouse of illumination. It combines superior white light with groundbreaking full-gamut saturated color technology, delivering up to 5,000 lumens at an 80-watt power draw. Both the 24" and 48" LightBlades stand as the most potent linear lighting engines available on the market.

The unique modular design of the LightBlade Edge fixtures allows for LightBlades to be integrated into the mounting system, creating the Edge 160 (2-Blade) and Edge 320 (4-Blade) fixtures. These configurations deliver an impressive 10,000 or 20,000 lumens of light output. The LightBlades within the Edge fixture can operate as an integrated light source or independently for dynamic lighting effects.

The LB4-320 LightBlade Edge 4' 320W 4-Blade Fixture offers the simplicity of a complete lighting fixture with the adaptability of individual LightBlade control. Available in six configurations - 1, 2, or 4 blades at 24" or 48", this fixture provides a unique modular design. With an output of up to 20,000 lumens, it delivers a powerful 90 fc@10ft / 970 lx@3m. Each individual LightBlade can operate as a stand-alone fixture, complete with an internal AC power supply and control electronics with DMX and Local control.

Cineo Lighting LightBlade Edge Features

  • Innovative lighting solution developed by NBCUniversal and Cineo for Motion Picture and Broadcast
  • Versatile and low-profile individual LightBlades measuring 24" or 48" in width and 2 1/2" in depth
  • Each LightBlade operates as a stand-alone fixture with internal AC power supply and DMX and Local control
  • Delivers superior white light and full-gamut saturated color technology, up to 5,000 lumens at 80-watt power draw
  • Unique modular design allows for integrated or independent operation of LightBlades
  • High output of up to 20,000 lumens, offering powerful illumination for all your lighting needs

Product Documents

User Manual

Key Features

  • Achieve stunning visuals with this 320W LightBlade Edge, perfect for film lighting.
  • Enjoy precise color temperature control from 2700K to 6500K for any scene.
  • Create soft, diffused light with this 4-blade fixture, ideal for portrait photography.
  • This durable LED light wand is designed for years of reliable performance on set.
  • Remotely adjust brightness with DMX control, streamlining your lighting setup.
  • Lightweight design at only 16 lbs, making this LightBlade easy to transport.

What's in the box:

  • LB4-320 LightBlade Edge 4' 320W 4-Blade Fixture
  • 4x 80W LightBlade Tubes
  • Cable Set
  • Reusable Colorplast Box
  • Baby Pin
  • Cineo Lighting 2 Year Limited Warranty
