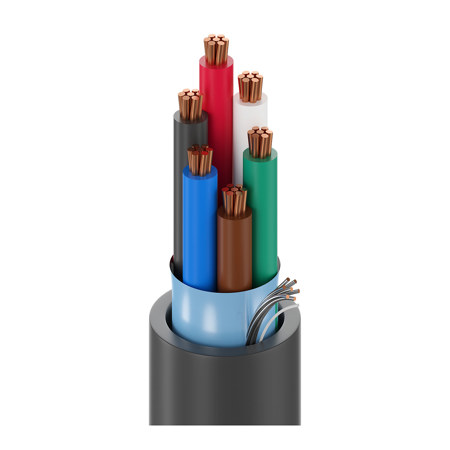

Belden Security & Sound 1000' 6 Conductor 22AWG Shielded Plenum-CMP Alarm Cable
See all Belden items
New Arrival

Belden Security & Sound 1000' 6 Conductor 22AWG Shielded Plenum-CMP Alarm Cable

SKU: TC6504FE877U MFR: 6504FE877U10
Be the first to review this itemAsk a Question
$346.40
OR
$58/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Ensure crystal-clear audio with this Belden shielded cable, minimizing interference for superior sound.
  • This 1000' Belden audio cable is CMP-rated, perfect for plenum spaces requiring fire safety compliance.
  • Customize your setup; this 6-conductor, 22AWG cable is ideal for security, intercom, and speaker systems.
  • Enjoy reliable signal quality with this Belden cable, designed for power-limited controls in noisy areas.
  • Bare copper conductors in this audio cable provide excellent conductivity and durability for long-lasting use.
  • Simplify installations with the Belden cable's ripcord feature, saving time and effort on every project.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Belden Security & Sound Specifications

General

General

Jump to...

  • Cable Length

    1000' (304.8m)

  • Suitable Applications

    Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Construction: Conductor

Jump to...

  • Material

    BC - Bare Copper

  • No. of Elements

    6

  • Size

    22AWG

  • Stranding

    7 x 30

Construction: Insulation

Jump to...

  • Color

    Black, Red, White, Green, Brown, Blue

  • Material

    PVC - Polyvinyl Chloride

  • Nom. Thickness

    0.23mm

  • Nom. Insulation Diameter

    1.2mm

Construction: Outer Shield

Jump to...

  • Material

    Bi-Laminate (Alum+Poly)

  • Coverage

    1

  • Drainwire Type

    24AWG (7 x 32) TC

Construction: Outer Jacket

Jump to...

  • Material

    PVC - Polyvinyl Chloride

  • Nom. Thickness

    0.38mm

  • Nom. Diameter

    4.45mm

  • Ripcord

    Yes

  • Overall Cable Diameter

    4.45mm (Nominal)

Electricals

Jump to...

  • Nom. Conductor DCR

    16.2 Ohm/1000'

  • Nom. Capacitance Cond-to-Cond

    33 pF/ft (110 pF/m)

  • Nom. Capacitance Cond-to-Other

    59 pF/ft (190 pF/m) (Conds + Shield)

  • Max. Current

    1.9 Amps per Conductor at 25 Degree C

  • UL Voltage Rating

    300V (CMP)

Mechanical

Jump to...

  • Temperature

    UL : 167 Degree F (75 Degree C)
    Operating: 32 Degree F to 167 Degree F(0 Degree C to +75 Degree C)

  • Bend Radius

    Stationary Min.: 1.75" (44.5mm)
    Installation Min.: 1.75" (44.5mm)

  • Max. Pull Tension

    60 lbs (27kg)

Standards and Compliance

Jump to...

  • Environmental Suitability

    Indoor - Plenum, Indoor

  • Flammability/Reaction to Fire

    NFPA 262, UL 910 (Plenum), FT6

  • CPR Compliance

    CPR Euroclass: Eca

  • NEC/UL Compliance

    Article 800, CMP

  • CEC/C(UL) Compliance

    CMP

  • European Directive Compliance

    EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

  • UK Regulation Compliance

    UKCA Mark

  • APAC Compliance

    China RoHS II (GB/T 26572-2011)

  • Non-Plenum Number

    5504FE

Physical

Jump to...

  • Weight

    24 lbs (10.89kg)

Other

Jump to...

  • UPC Code

    612825177845

About Belden Security & Sound

Security & Sound Cable, Plenum-CMP, 6-22 AWG stranded bare copper conductors with Flamarrest insulation, Beldfoil shield and Flamarrest jacket with ripcord

Belden Security & Sound Features

  • High-performance security and sound cable with Flamarrest insulation for safety
  • Plenum-rated CMP cable suitable for commercial installations
  • Stranded bare copper conductors (6-22 AWG) for flexibility and durability

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure crystal-clear audio with this Belden shielded cable, minimizing interference for superior sound.
  • This 1000' Belden audio cable is CMP-rated, perfect for plenum spaces requiring fire safety compliance.
  • Customize your setup; this 6-conductor, 22AWG cable is ideal for security, intercom, and speaker systems.
  • Enjoy reliable signal quality with this Belden cable, designed for power-limited controls in noisy areas.
  • Bare copper conductors in this audio cable provide excellent conductivity and durability for long-lasting use.
  • Simplify installations with the Belden cable's ripcord feature, saving time and effort on every project.

What's in the box:

  • Belden Security & Sound 1000' 6 Conductor 22AWG Shielded Plenum-CMP Alarm Cable
