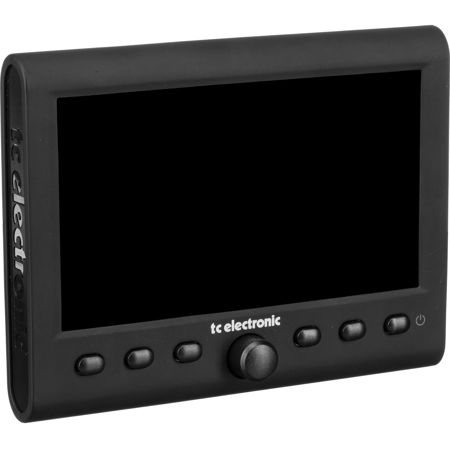

TC Electronic Clarity M 2.0 Stereo and 5.1 Audio Loudness Meter
See all TC Electronic items

TC Electronic Clarity M 2.0 Stereo and 5.1 Audio Loudness Meter

SKU: TCECLRTYMV2
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TC Electronic Clarity M 2.0 Specifications

  • Digital Audio Inputs

    Input 1: BNC (AES3id, S/PDIF)
    Input 2: BNC (AES3id, S/PDIF)
    Input 3: BNC (AES3id, S/PDIF)
    Input 4: TOSLINK (EIAJ Optical)

  • GPIO

    2x External Switch Inputs, 1 Relay Output (100 mA Max, Optically Isolated)
    1x 3.5 mm Mono (GPO)
    1x Stereo (2x GPI)

  • USB

    USB 2.0, Micro-B

  • User Controls

    Rotary Encoder, 6 Selection Buttons

  • Display

    7" TFT Color 800 x 480

  • Sample Rate

    Standalone
    Stereo: 44.1, 48, 88.2 and 96 kHz
    Surround: 44.1 and 48 kHz

    Plug-In
    Stereo: 44.1, 48, 88.2 and 96 kHz
    Surround: 44.1, 48, 88.2 and 96 kHz

  • Power Consumption

    12 VDC, 0.5 A

  • Dimensions

    5.5 x 7.2 x 1.5" (140 x 182 x 38mm)

  • Weight

    2.6 lbs (1.2kg)

  • UPC Code

    4033653090285

About TC Electronic Clarity M 2.0

New vector scope
By tracing the left and right audio waveforms into a cloud-like shape, the high precision vector scope coming to Clarity M will help you identify important stereo balance and phase issues in your mix. The vector scope will automatically scale to the input levels and you can of course customize the scope color any way you like.

Introducing the Balance-O-Meter
The Balance-O-Meter is an innovative new meter type that allows you to quickly check the Left-Right and Mid-Side balances of your mix.

Offline Plug-in Mode
Get instant overview of your song by measuring it faster-than-real-time from within your VST, AU or AAX compatible DAW.

New PPM meter scales
Highly configurable, full height PPM meter for all sorts of broadcast and music production purposes. The new scales in Clarity M 2.0 cover a multitude of integration and return times, different Permitted Maximum and Alignment Levels as well as various methods for handling transients in the signal.

New layout
You can now tailor your display layout for optimal, personal view.

TC Electronic Clarity M 2.0 Features

  • Super precise vector scope
  • Support for 96 kHz digital stereo input
  • Innovative stereo mid/side Balance-O-Meter
  • Lightning fast offline plug-in mode
  • Massive increase to the number of PPM Meter scales
  • Color scheme tweaks to improve readability - especially in low-light scenarios
  • Highly improved flexibility to display layout
  • A wealth of new application specific presets
  • General improvements to usability

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure precise audio levels with this loudness meter, perfect for broadcast & film!
  • Achieve accurate sound measurements using its wide frequency range for any audio setup.
  • Get reliable readings, thanks to selectable weighting options on this reference mic.
  • Analyze trends with the data logging feature, crucial for consistent audio production.
  • Capture every nuance with the wide dynamic range, ideal for complex soundscapes.
  • Maintain accuracy with regular calibration, ensuring your audio always meets standards.

What's in the box:

  • TC Electronic Clarity M 2.0 Stereo and 5.1 Audio Loudness Meter
  • AC Adapter
  • DB15 Cable Assembly
  • BNC Female to RCA Male Adapter
  • 3.3' USB Type-A to Micro-USB Type-B Cable
  • TC Electronic 3 Year Limited Warranty with Registration
