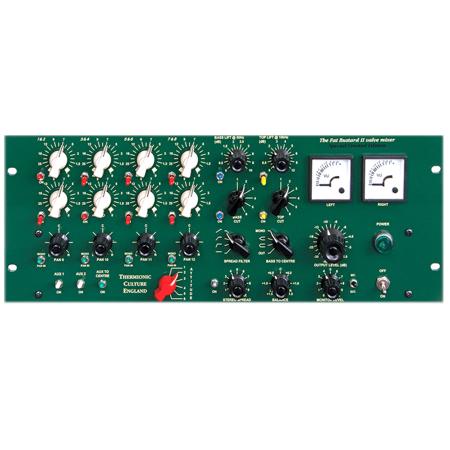

Thermionic Culture Ltd 12 Channel Summing Mixer: Picture 1 thumbnail
Thermionic Culture Green Fat Bustard Audio Demo
1 video
Thermionic Culture Ltd 12 Channel Summing Mixer + EQ Limited Edition

Thermionic Culture Ltd 12 Channel Summing Mixer + EQ Limited Edition

SKU: TCFATBSTRDLE
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Thermionic Culture Ltd 12 Channel Summing Mixer Specifications

  • Input impedance

    10kOhm (dependent upon channel and setting), "semi floating"

  • Output impedance

    600Ohm unbalanced

  • Monitor

    5kOhm unbalanced

  • Gain (ch. 1-8)

    0 at Attitude 1, +11.5dB at max attitude

  • Maximum Output level

    +25dBU

  • Distortion

    (at Attitude 1) 0.013% +8dBm output
    (at Attitude 3) 0.2%
    (at max. attitude) >/=1% (dependent on how hard valves are driven)

  • Signal to noise (30kHz filter)

    at least 103dB below MOL at Att.1

  • Freq. response (+/-1dB)

    11Hz to 55kHz (at Attitude 1)

  • Max bass lift

    +10dB @ 50Hz

  • Max top lift

    +12db @ 12kHz

  • Phase shift (10kHz) with EQ flat

    (at Att.1), 5% (18 degree)
    (at Att.4), 8% (29 degree)

  • Crosstalk (at Attitude 2)

    60dB @ 1kHz, 48dB @ 10kHz.
    Crosstalk will increase at high attitude settings and when stereo spread and/or bass to centre controls are used.

About Thermionic Culture Ltd 12 Channel Summing Mixer

Mixer (special equalisation for the mix,stereo width, bass to centre) but a little less colourisation and even lower distortion and noise, though not as much max "Attitude". The top response now extends to 50+ kHz with consequently less phase shift.

It uses 6072A double triode input valves in place of 5965s.

Both Fat Bustards have exactly the same 14 inputs, and same controls. The black more Aggressive Fat Bustard continues to be made, so the user has a choice until all the Green ones have been sold.

Thermionic Culture Ltd 12 Channel Summing Mixer Features

  • All valve 14 channel passive summing mixer with many extras
  • Pan controls on 4 channels with centre detents
  • Unique Varislope Top and Bass lifts plus filters
  • Attitude control to add harmonics
  • Stereo width controls / Bass to centre and mono
  • Precision ELMA switch to control main level (fadeable)
  • Monitor outputs with level control and switching
  • Hand wired with point to point wiring throughout
  • Exceptional sound quality- very low distortion except when required and massive 'headroom'
  • Frequency response extends from below audio range to well above

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • All valve 14 channel passive summing mixer with many extras
  • Pan controls on 4 channels with centre detents
  • Unique Varislope Top and Bass lifts plus filters
  • Attitude control to add harmonics
  • Stereo width controls / Bass to centre and mono
  • Precision ELMA switch to control main level (fadeable)

What's in the box:

  • Thermionic Culture Ltd 12 Channel Summing Mixer + EQ Limited Edition
  • Audessence 1 Year Limited Warranty (Extended 2 Year Warranty on Registration)
