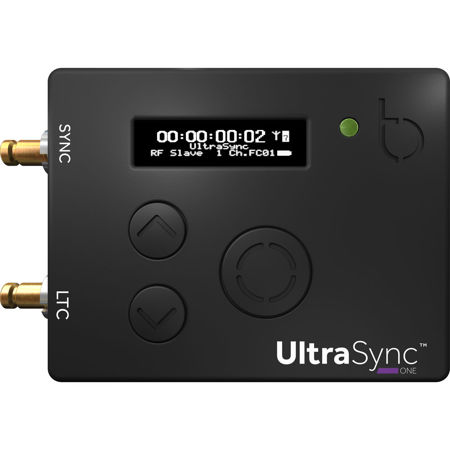

TimeCode Systems UltraSync ONE TimeCode Sync Solution Bundle, 2 Pack

SKU: TCULTRADUBLE

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

TimeCode Systems UltraSync ONE Specifications

  • Blue OLED display

    128 x 32 pixel resolution

  • Supported FPS modes

    23.976, 24, 25, 29.97, 30, 29.97DF, 30DF

  • Supported sync outputs

    PAL, NTSC, 720p, 720p2 (double frame rate)1080i-PSF1080p, 1080p2. Word Clock standards 44.1, 88.2, 48. 96 and 192KHz

  • BLINK

    Communication between units over BLINK RF

  • BLINK Hub

    Monitor & control from the BLINK Hub app

  • Data port

    Professional Locking DIN 1.0/2.3 connector

  • Range

    200m (656.16') Approx.

  • Sync Modes

    LTC TimeCode, genlock & word clock

  • Frequency

    865.050MHz to 923.200MHz

  • Internal power

    Lithium Polymer rechargeable battery, 3.7V battery 800mAh 2.96Wh, minimum 25 hours duration

  • External power

    USB-C (5V DC)

  • Dimensions

    55 x 44 x 17mm (2.17 x 1.73 x 0.67")

  • Weight

    39g (1.38 oz)

About TimeCode Systems UltraSync ONE

Super compact. Lightweight. The flexibility to configure as a TimeCode master or slave. The battery life to easily last even the longest shooting day. The UltraSync ONE integrates the most advanced TimeCode and sync options on the market. At a pricepoint that makes it a cost-effective, multicamera solution. Configure UltraSync ONE as a TimeCode master, TimeCode slave or TimeCode LTC slave. You can even use the SYNC port as for a second LTC, genlock or word clock output. Or alternatively jam to house TimeCode or an OB truck.

And the UltraSync experience is just as amazing whether you're syncing multiple units with each other or combining them into a BLINK network with cameras and sound equipment using :pulse, :wave and SyncBac PRO units for TimeCode. And this is down to using uncongested sub GHz frequency bands for a completely reliable synchronization with a range of 200m.

Product Documents

User Manual

What's in the box:

  • 2x TimeCode Systems UltraSync ONE TimeCode Sync Solution
  • USB Type-C Cable
  • Mini COAX to RA BNC (Blue) Adapter for LTC
  • Mini COAX to RA BNC (Red) Adapter for Genlock
  • TimeCode Systems 1 Year Limited Warranty
