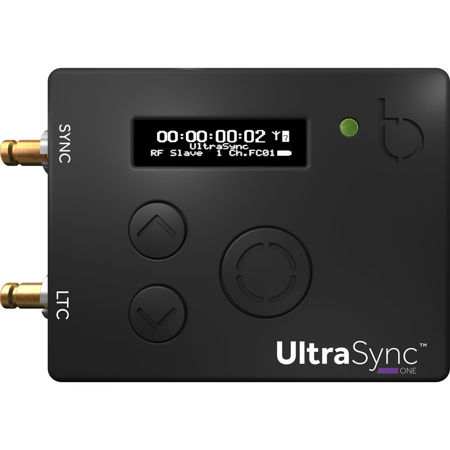

TimeCode Systems UltraSync ONE Timecode Unit (3 Pack)

SKU: TCULTRATRPLE

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

TimeCode Systems UltraSync ONE Specifications

  • Power

    25+ hours battery life

  • Blink

    Communication between units over Blink RF

  • Data port

    Professional Locking DIN 1.0/2.3 connector

  • Range

    Approx. 200m (656.16')

  • USB-C

    For firmware updates and external power

  • Sync modes

    LTC timecode, genlock & word clock

  • Display

    128 x 32 pixels OLED display

  • FPS

    23.98, 24.00, 25.00, 30.0D, 30.00, 29.97D, 29.97

  • Frequency

    865.050MHz to 923.200MHz

  • Dimensions

    55 x 44 x 17mm (2.17 x 1.73 x 0.67") (of one UltraSync ONE)

  • Weight

    39g (1.38 oz) (of one UltraSync ONE)

  • UPC Code

    708744010025

About TimeCode Systems UltraSync ONE

Timecode Systems ULTRATRIPLE (ULTRA-TRIPLE) 3x UltraSync ONE Bundle. Each UltraSync ONE unit comes with two mini COAX to BNC cables for LTC and genlock, in addition to a mini USB-C cable for charging.

Timecode Systems will unveil the new UltraSync ONE solution at the 2017 NAB Show. With its latest product, the company has taken the full extent of its sync capability, increased battery life to at least 25 hours. This creates the most cost-effective, RF-powered timecode and genlock solution on the market, offering the most robust and flexible sync available at a price point that makes it affordable for multicamera, multi-audio shoots and professional 360-degree VR custom rigs.

Our goal with UltraSync ONE was ambitious: inject the full capability of our timecode, genlock, word clock and RF technology into the most compact sync product on the market, all at a price point that makes it a cost-effective option in a multicamera environment. That meant re-engineering every element to make UltraSync ONE not only smaller, but also superior to any comparable timecode solution on the market. In terms of features and cost, there is no need for our customers to look anywhere else.

Think big, sync small
Advances in filming are changing the landscape of the film and broadcast industry and what it demands from timecode technology manufacturers. Size and price are obviously important factors, but not at the cost of the quality of the sync and the confidence that battery life will last an entire day of filming. Measuring just 55mm x 44mm x 17mm, UltraSync ONE is the smallest generator and transceiver on the market to provide timecode, genlock for camera sync and word clock for sound, all synchronized wirelessly and with sub-line sync accuracy over bi-directional BLINK RF.

This combines to provide synchronization to such a high degree of accuracy that it's suitable for even genlock-synchronized 360-degree VR arrays. And even with every UltraSync ONE feature turned on and an OLED display set to maximum brightness, 25 hours of battery life is the minimum that can be expected from a single charge through its USB C port, providing the added reassurance that UltraSync ONE has the power to keep going throughout the filming day, whatever twists and turns a shoot takes.

What's in the box:

  • 3x Timecode Systems UltraSync ONE Timecode Unit
  • 6x Mini COAX to BNC Cable
  • 3x Mini USB-C Cable
  • TimeCode Systems 1 Year Warranty
