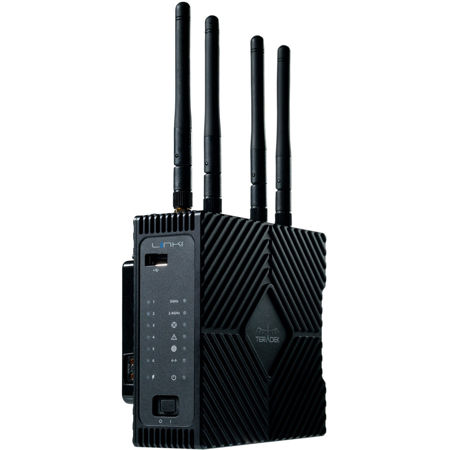

Teradek Link Pro Cellular Bonding and Dual Band Wi-Fi Router, No Battery Mount

SKU: TE100051

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Teradek Link Pro Specifications

Protocol Support

Protocol Support

Jump to...
  • Network Protocols

    TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

  • Bonding

    Up to 6 devices, Ethernet, Wi-Fi

  • Remote

    No

Interfaces

Jump to...
  • HTTP

    Feature-rich web UI for configuration and control

  • Switches

    On/Off and Reset switch

  • Expansion

    2x USB 3.0 Type-A

  • Status LEDs

    Multiple LEDs for device, wireless and network statuses

  • Interface

    4x 4-pin locking connectors

Environmental

Jump to...
  • Temperature

    Operating: -10 to 50 deg. C (14 to 122 deg. F)
    Storage: -40 to 90 deg. C (-40 to 194 deg. F)

  • Humidity

    Operating: 5% to 95% (non-condensing)
    Storage: Max. 90%

Network

Jump to...
  • Ethernet

    2x Gigabit Ethernet RJ45 Ports, Auto MDI-X

  • Wireless Wi-Fi

    2x2 2.4GHz 802.11b/g/n, max 20dBm per chain
    2x2 5GHz 802.11a/n/ac, max 16dBm per chain
    Frequency Range 2.412 to 2.472GHz, 5.180 to 5.825GHz

  • Encryption

    802.1x, 802,11i, WPA2, WPA and WEP
    64/128 TKIP 128-bit AES

  • Power Input

    2-Pin Circular Locking Connector, 12-24V

  • Nominal Power Consumption

    19W max + up to 5W USB

Physical

Jump to...
  • Construction

    Milled aluminum (chassis)

  • Mountability

    1/4"-20 threaded hole, 2x 4-40 threaded holes

  • Battery Plate

    No

  • Dimensions (WxHxD)

    1.69 x 4.72 x 5.22" (4.29 x 11.99 x 13.26cm)

  • Weight

    19.8 oz (561.32g)

About Teradek Link Pro

The Link Pro is a powerful Wi-Fi router that gives you a robust Internet connection wherever you go. Featuring built-in cellular bonding technology, each router offers rock-solid Internet even in the most remote or Wi-Fi congested locations, allowing you to work from areas you otherwise couldn't.

Standalone
This Link Pro Standalone unit comes with no Teradek Nodes, allowing you to supply your own cellular modems and mounting solutions.

Maximum Redundancy
Link Pro combines up to six 3G/4G/LTE modems into a single, robust Internet connection for devices to connect to. This eliminates a single point of failure, allowing you to browse the web seamlessly without any interruptions to your work.

Powerful Range
Up to 1000 ft. of wireless range.

Built to Withstand
Link Pro's rugged aluminum chassis is built to withstand the harshest of work environments, whether you're in the studio or on-the-go.

Dual Band 2.4 / 5.0 GHz Wi-Fi
Choose the network that's right for your environment. Whether you require more range for your work (2.4GHz) or a less-congested band (5.0GHz), Link Pro supports the latest in Wi-Fi standards.

Battery Options
Both Gold & V-mount battery options are available for the Link Pro so it can integrate into any workflow.

Core
A subscription to our Core platform is required to get the most out of Link Pro. With Core, you can leverage multiple cellular data links at one time to surf the web, upload files, stream video and more. Without a subscription, Link Pro cannot operate over bonded connections.

Teradek Link Pro Features

  • All in one complete Bonding Solution for all Network Traffic
  • Network Bonding with LTE Modems and High Gain Antennas
  • Dual Band 2.4/5 GHz 802.11ac Wi-Fi
  • 1000ft range
  • High Throughput with Quad Core Processor
  • PoE Power

What's in the box:

  • Teradek Link Pro Cellular Bonding and Dual Band Wi-Fi Router
  • Protective SKB Case
  • 2x Ethernet Cables
  • 4x 2dBi Wi-Fi 2.4/5.8 GHz Antennas
  • 2-Pin Connector to 30W AC Adapter with International Plugs
  • 1/4-20 " Lightstand Adapter
  • Teradek 1 Year Limited Warranty
