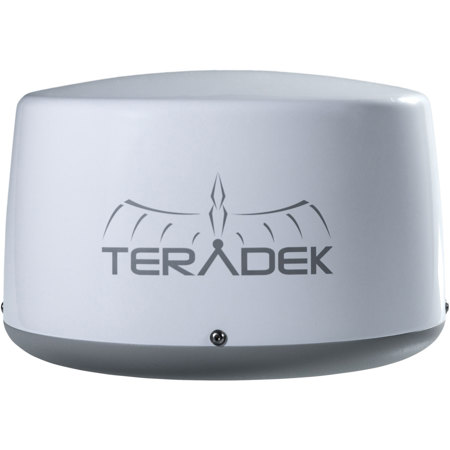

Teradek Link Pro Radome Wireless Access Point Router, North America, Gold-Mount
See all Teradek items

Teradek Link Pro Radome Wireless Access Point Router, North America, Gold-Mount

SKU: TE100054RNG
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Teradek Link Pro Radome Kit Specifications

Link Pro Radome

Link Pro Radome

Jump to...

  • Construction

    Plastic Housing, Milled Aluminum Base, regulation-compliant
    PCB

Node

Jump to...

  • Construction

    Milled Aluminum (Chassis), regulation compliant
    PCB

  • Mountability

    1/4"-20 threaded hole
    2x 4-40 threaded holes
    Additional mounting options available

  • Temperature

    Operating: -10 to 50 deg. C (14 to 122 deg. F)
    Storage: -40 to 90 deg. C (-40 to 194 deg. F)

  • Humidity

    Operating: 5% to 95% (non-condensing)
    Storage: Max. 90%

  • Interface

    2 Status LEDs

  • Connector

    4-pin to 4-pin connector

  • LTE

    USA: LTE FDD Cat 4, Bands 2,4,5,13,17

  • UMTS

    USA: HSDPA Cat 24, HSUPA Cat 6
    Bands: 850/1900

  • RF

    2x2 MIMO SMA
    Band 17 (700 MHz), Band 13 (750 MHz) Band 5 (850 MHz)
    Band 4 (1700 MHz) Band 2 (1900 MHz)

  • Power Class

    Class 3 23dBm LTE mode
    Class 3 24 dBm for UMTS/HSDPA/HSUPA mode

  • Data Rate

    LTE cat. 4: up to 150 Mb/s DL, 50 Mb/s UL
    HSDPA cat.14, up to 21 Mb/s DL
    HSUPA cat.6, up to 5.6 Mb/s UL

  • Sim

    Full size SIM

  • Power Input

    2-Pin Connector, 5-28V

  • Battery

    No

  • Nominal Power Consumption

    5W Max

Link Pro Gold Mount

Jump to...

  • Network Protocols

    TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

  • Bonding

    Up to 6 devices, Ethernet, Wi-Fi

  • Remote

    No

  • Construction

    Milled aluminum (chassis)

  • Mountability

    1/4"-20 threaded hole
    2x 4-40 threaded holes
    Additional mounting options available

  • Battery Plate

    Integrated Gold Battery Plate

  • HTTP

    Feature-rich web UI for configuration and control

  • Switches

    On/Off and Reset switch

  • Expansion

    2x USB 3.0 Type-A

  • Status LEDs

    Multiple LEDs for device, wireless and network statuses

  • Interface

    4 x 4-pin locking connectors

  • Temperature

    Operating: -10 to 50 deg. C (14 to 122 deg. F)
    Storage: -40 to 90 deg. C (-40 to 194 deg. F)

  • Humidity

    Operating: 5% to 95% (non-condensing)
    Storage: Max. 90%

  • Ethernet

    2x Gigabit Ethernet RJ45 Ports
    Auto MDI-X

  • Wireless Wi-Fi

    2x2 2.4GHz 802.11b/g/n, max 20dBm per chain
    2x2 5GHz 802.11a/n/ac, max 16dBm per chain
    Frequency Range 2.412 to 2.472GHz, 5.180 to 5.825GHz

  • Encryption

    802.1x, 802,11i, WPA2, WPA and WEP
    64/128 TKIP 128bit AES

  • Power Input

    2-Pin Circular Locking Connector
    12-24V

  • Nominal Power Consumption

    19W max + up to 5W USB

General

Jump to...

  • Dimensions

    Link Pro Radome: 422.4 x 176.0mm (16.63 x 6.93")
    Node: 82.75 x 18.5 x 59.25mm (3.26 x 0.73 x 2.33")
    Link Pro Gold Mount (WxDxH): 43 x 132.6 x 120mm (1.69 x 5.22 x 4.72")

  • Weight

    Link Pro Radome: 1300g (45.86 oz)
    Node: 4 oz (113.40g)
    Link Pro Gold Mount: 19.8 oz (561.32g)

Other

Jump to...

  • UPC Code

    818264023983

About Teradek Link Pro Radome Kit

Radome is a Node housing unit that easily mounts to light stands on emergency and industrial vehicles. It features 3/8-16" mounting points on the base of the unit and stores up to 4 Nodes inside. A protective hull shields your Node modems from the harshest of elements, while also providing robust 4G LTE connections to your Link Pro within the vehicle. Set includes the Radome, Link Pro and 4x Nodes.

Node
Teradek Node is a high-powered 3G/4G/LTE modem that offers 2 to 3 times the performance of carrier-branded modems. With comprehensive data band support, Node supports SIM cards in regions all around the world.

Maximum Redundancy
Link Pro combines up to six 3G/4G/LTE modems into a single, robust Internet connection for devices to connect to. This eliminates a single point of failure, allowing you to browse the web seamlessly without any interruptions to your work.

Powerful Range
Up to 1000 ft. of wireless range.

Dual Band 2.4 / 5.0 GHz Wi-Fi
Choose the network that's right for your environment. Whether you require more range for your work (2.4GHz) or a less-congested band (5.0GHz), Link Pro supports the latest in Wi-Fi standards.

Core
A subscription to our Core platform is required to get the most out of Link Pro. With Core, you can leverage multiple cellular data links at one time to surf the web, upload files, stream video and more. Without a subscription, Link Pro cannot operate over bonded connections.

Teradek Link Pro Radome Kit Features

  • Housing unit that mounts to light stands on vehicles
  • All in one complete Bonding Solution for all Network Traffic
  • Network Bonding with LTE Modems and High Gain Antennas
  • Dual Band 2.4/5 GHz 802.11ac Wi-Fi
  • 1000' range
  • High Throughput with Quad Core Processor

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Teradek Link Pro Radome Wireless Access Point Router
  • Manfrotto 2909 Super Clamp with 2907 Reversible Short Stud
  • 16mm Female Adapter
  • 3/8 to 1/4 " Small Adapter
  • Link Pro
  • Radome
  • 4x 72 " 4-Pin to 4-Pin Connector Cable
  • Link Pro Quickstart Guide
  • Link Pro Insert
  • Teradek 1 Year Limited Warranty
