Teradek Bond 658 Cellular Bonding Solution Package, Includes Bond 318 4-Pin Cellular Expansion Module, Cube 655 Encoder and MPEG Transport Stream

Cube 655 Encoder

Designed for Professionals
Cube is manufactured in the USA and features 3G-SDI and HDMI inputs along with a new, high-powered 802.11AC Wi-Fi adapter. Cube's rugged aluminum chassis and professional locking 2-Pin Connector ensure it's ready for constant use in any environment.

• Real-Time H.264 (AVC) Encoder
• Dual-Band 2.4/5.8 GHz Wi-Fi, Ethernet and USB Interfaces
• HDMI and SDI Video Inputs
• Camera Top Form Factor
• Built-In Color Grading
• On-Board SD Card Recording
• Two-Pin LEMO-Type Power Input

Higher Bitrates
The Cube 600 series encodes video at bitrates up to 15 Mbps for pristine quality in any application. When bandwidth is limited, adaptive bitrate allows Cube to automatically adjust and stream at the highest quality achievable.

Improved Wireless Performance
Built-in 802.11ac dual band (2.4/5GHz) Wi-Fi offers higher data throughput and stronger wireless connectivity at longer distances.

iPad Monitoring for All
Cube 600 supports monitoring on up to 6 devices iOS devices simultaneously so clients, crew and director can all see the action.

Built-in Color Grading
Support for 33 point 3D LUTs and Pomfort LiveGrade integration allows your creative team to monitor graded footage on set or off. Looks can be applied to the stream itself or controlled independently within the TeraView app.

All New User Interface
Cube's intuitive new user interface makes it easier than ever to configure your device. Pages load more quickly, configuration changes apply instantly and all encoder statuses are updated dynamically.

Onboard Recording
Cube's built-in SD card slot gives you the option to save high quality backup recordings for post-event editing. (Recorded video file bitrate and resolution match encoded stream quality.)

Test Pattern Generator
A configurable test pattern generator allows you to test your stream without connecting a video source and prevents interruptions if video sync is lost.

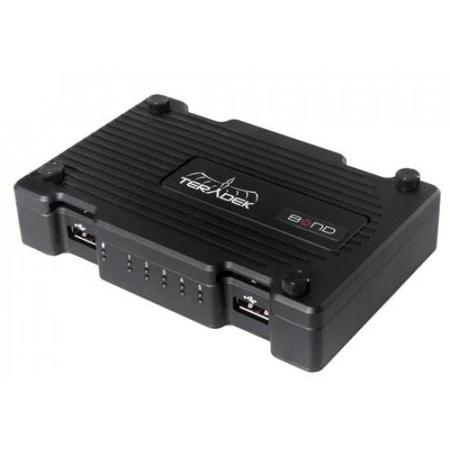

Bond 4-Pin Cellular Expansion Module
The Bond expansion module converts the Cube 600 (H.264), 700 (HEVC) and 800 (HEVC 4K) series into a professional cellular bonding device. (The Bond expansion module is not compatible with Cube 100 and 200 series encoders.)

• Allows a Cube Encoder to Bond 4 additional USB Modems (total 5)
• Secure Modem Mounting
• Built-in Li-ion Battery for swapping
• Compatible with Teradek Node Modems and Core

Support for up to 10 total network connections
Combine bandwidth from up to 5 cellular modems, 4 iPhone LTE connections and Ethernet to build a streaming pipeline with enough redundancy to ensure your stream reaches its destination in high quality no matter where you're going live from. The Bond expansion module adds 4 additional USB modem connections to your Cube encoder.

Built-in Li-ion battery
The built-in battery powers your streaming solution for a short time during external battery swaps so your live feed doesn't goes down.

Compatible with Node modems
Node is a high performance 3G / 4G / LTE modem that provides exceptional connectivity and weather resistance compared to traditional USB modems. The modem can operate on every 3G / 4G/ LTE data band for any region around the world. Paired with a Bond system, Node offers state of the art connectivity without breaking the bank.

Compatible with Core
Core is a complete IP video management ecosystem in the cloud. The platform allows you to route, configure, monitor, archive and transcode all of your Teradek professional codecs in one place from anywhere in the world. A Core subscription is required for Bond users to demux incoming bonded streams.

4-Pin Connectors
The 4-pin connector option offers superior linkage to the chassis and weather resistance for Node modems only

MPEG Transport Stream
License activation key is e-mailed to the Customer. (Licenses Are Non-Refundable and Non-transferable). Create a MPEG-TS over IP (TCP or UDP) video stream that is compatible with television broadcast equipment and IPTV set-top boxes. Compatible with all Cube Encoders.
