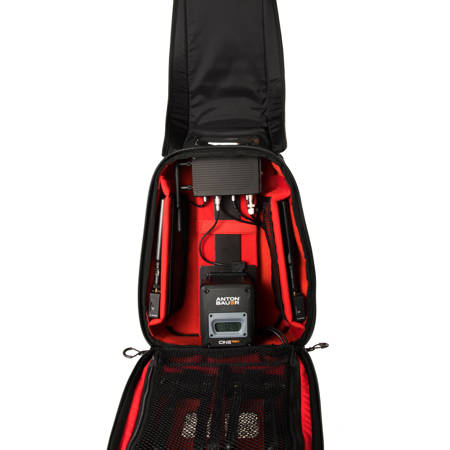

Teradek Bond 659 AVC Backpack with AB Mount Battery Plate, Asia Pacific & SA
See all Teradek items

Teradek Bond 659 AVC Backpack with AB Mount Battery Plate, Asia Pacific & South America

SKU: TE100659SAG
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Teradek Bond 659 AVC Backpack Specifications

Module

Module

Jump to...

  • USB

    Up to five USB devices

  • Connectivity

    Ethernet and Wi-Fi (built into Cube)
    Up to four iOS devices

  • Compatibility

    Cube 605/655, 715/755, 805/855

  • Interfaces

    Controlled through Cube
    4x powered USB 2.0 host port

  • Battery

    Internal lithium-ion

  • Power Consumption

    Nominal: 0.5 W, up to 5 W per USB device
    Power supplied by Cube

  • Temperature

    Operating: 14 to 122 Degree F (-10 to 50 Degree C)
    Storage: -40 to 194 Degree F (-40 to 90 Degree C)

  • Humidity

    Operating: 5% to 95% (non-condensing)
    Storage: Maximum 90%

  • Construction

    Milled aluminum (Chassis), regulation-compliant PCB

  • Dimensions

    1 x 3 x .4.7" (24 x 77 x 120mm)

  • Weight

    7.9 oz (224g)

Encoder

Jump to...

  • Video Inputs

    1x SD/HD-SDI (75 Ohms BNC)
    1x HDMI type A receptacle

  • Channel Bonding

    TeraLink

  • Supported Resolutions

    1080p 23.98/24/25/29.97/30/50/59.94/60
    1080i 50/59.94/60
    1080psF 23/24/25/29/30
    720p 50/59.94/60
    576i
    480i
    480p (for HDMI input only)
    576p (for HDMI input only)
    Ingests 1080p 50/59/60

  • Video Compression

    H.264, Baseline, Main, and High Profile

  • Supported Video Bit Rates

    250 kbps to 15 Mbps
    15 Mbps (wired), 10 Mbps (Wi-Fi)

  • Test Pattern Generator

    Supports custom test pattern

  • Video Format

    Built-in video scaler and deinterlacer

  • Color Correction

    CDL/1024 1D LUT (supports 10-bit color)
    33 x 33 x 33 3D LUT (supports 10-bit color)

  • Network Protocols

    TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

  • Video Transport Support

    Supported Video Transport Protocols: RTMP
    RTP, RTSP, RTSP over HTTP
    MPEG-TS (MPEG-TS is an optional paid license)

  • Remote Control

    Teradek Core

  • Software Integration

    Ustream, YouTube Live, Facebook, and new Livestream

  • Audio Compression

    AAC-LC, MPEG Layer 2

  • Audio Input

    Embedded audio input
    Analog line or mic in, adjustable gain

  • Audio Output

    Headphone output

  • Interfaces

    Http: WebUI for configuration and control
    Configuration Interfaces:
    OLED display with joystick navigation button
    Feature-rich WebUI for configuration and control

  • Switches

    On/Off and reset switch

  • Recording storage

    SD Card: Full-size

  • Mobile App

    Vuer, Live:Air

  • USB Interface

    Powered USB 2.0 host port

  • Ethernet

    10/100/1000 BASE-T gigabit

  • Wi-Fi

    2.4/5 GHz 802.11 ac/a/b/g/n MiMo

  • Channel Selection

    Auto with three Modes: 2.4 or 5 GHz, Auto 2.4 GHz only, Auto (5 GHz only)
    Configurable to specific channels

  • Encryption

    802.1x, 802,11i, WPA2, WPA, and WEP 64/128 TKIP 128-bit AES

  • Power Input

    2-pin connector power input
    Auxiliary: 6-28 VDC

  • Power Consumption

    Nominal: 8 W, 7 W (no Wi-Fi)

  • Mount

    Can be mounted horizontally or vertically with 1/4"-20 mounting holes

  • Construction

    Milled aluminum

  • Dimensions

    4.75 x 3 x 1.1" (120.7 x 76.2 x 27.9mm)

  • Weight

    11.6 oz (328.9g)

Node Cellular 4G LTE USB Modem (Asia-SA)

Jump to...

  • Network

    LTE: LTE FDD Cat 4, Bands 1, 3, 5, 7, 8, 28
    UMTS: HSDPA Cat 24, HSUPA Cat 6, Bands 850/900/1900/2100
    RF: 2 x 2 MIMO SMA Band 17 (700 MHz), Band 13 (750 MHz), Band 5 (850 MHz), Band 4 (1700 MHz), and Band 2 (1900 MHz)
    Power Class: Class 3, 23 dBm LTE mode
    Class 3, 24 dBm for UMTS/HSDPA/HSUPA mode
    Data Rate: LTE cat 4: up to 150 Mb/s DL, 50 Mb/s UL
    HSDPA cat 14, up to 21 Mb/s DL
    HSUPA cat 6, up to 5.6 Mb/s UL
    SIM: Full size

  • Power Input

    2-pin connector, 5 to 28 V

  • Power Consumption

    5 W maximum

  • Interface

    2 Status LEDs

  • Temperature

    Operating: 14 to 122 Degree F (-10 to 50 Degree C)
    Storage: -40 to 194 Degree F (-40 to 90 Degree C)

  • Humidity

    Operating: 5 to 95% (non-condensing)
    Storage: Maximum 90%

  • Construction

    Milled aluminum (chassis), regulation-compliant PCB

  • Mounting

    1/4"-20 threaded hole
    2x 4-40 threaded holes
    Additional mounting options available

  • Dimensions

    3.3 x 0.7 x 2.2" (82.8 x 18.5 x 59.3mm)

  • Weight

    4 oz (110g)

Other

Jump to...

  • UPC Code

    818264021309

About Teradek Bond 659 AVC Backpack

Next Level Mobile Broadcasting
The Bond Backpack is an all in one professional HEVC/H.264 streaming solution for broadcasters seeking the best in signal reception and video quality.

High Gain Antennas
Wireless reception for Teradek Node modems is greatly enhanced with two high gain antennas attached to the interior of the backpack.

Gold or V Mount Battery Plate
Choose between Gold-mount, V-mount, or no battery plate for portable power. When your battery runs dry, Cubes internal Li-Ion battery will give you 5 minutes of operation while you swap power sources.

Node Modems
Each backpack supports up to 5 USB or Teradek Node modems, ensuring you have connectivity wherever you go.

Integrated Locking Cables
To keep things tidy, weve neatly integrated several locking connector cables to attach your bonding encoder to each Node modem, ensuring your system is always running even if your backpack is dropped or tossed across the room.

AVC Bonding Codec
At the heart of the Bond Backpack is the Cube encoder, a High Profile AVC encoder that supports bitrates up to 15 Mbps, both HDMI and 3G-SDI inputs, and a boot-to-live time of just 20 seconds. HEVC encoders are also available.

Active Cooling
To keep you comfortable and your gear operating optimally, we've integrated a practically silent fan to keep hot air out and cool air in.

Ergonomic, Weather Resistant Design
The Bond Backpack is ergonomic, lightweight, and weather resistant, allowing the camera operator to focus on the content and not on fatigue or damage from the elements. Nylon strips on the backpacks shoulder straps keep your cables neatly dressed along your shoulder, while the quick release lock on the front offers quick access to both the encoder and battery.

Teradek Bond 659 AVC Backpack Features

  • All in one complete Bonding Solution
  • Real-Time H.264 Encoder
  • Network Bonding with LTE Modems
  • High Gain Antennas
  • Gold or V Mount Battery Options (battery not included)
  • Integrated Locking Cables
  • Active Cooling keeps gear running optimally

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • All in one complete Bonding Solution
  • Real-Time H.264 Encoder
  • Network Bonding with LTE Modems
  • High Gain Antennas
  • Gold or V Mount Battery Options (battery not included)
  • Integrated Locking Cables

What's in the box:

  • 1x Backpack with AB-Mount
  • 1x Cube 655 AVC Encoder
  • 2x Antenna 2dBi Wifi 2.4/5.8GHz
  • 1x SDI BNC to BNC Cable
  • 1x Bond Expansion Module
  • 4x Teradek Nodes for North America
  • 8x Antenna 2G/3G/4G Sma Mount
  • 1x 2-Pin to PTap 6.5 " Cable
  • 1x 4-Pin Connector to 4Pin Connector 34 " Cable
  • 1x Quick Start Guide
  • Teradek 1 Year Limited Warranty
