Teradek Bond 757 - Cube 755 + Bond + MPEG-TS Package, USB
See all Teradek items

Teradek Bond 757 - Cube 755 + Bond + MPEG-TS Package, USB

SKU: TE100757
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Teradek Cube 755 + Bond + MPEG-TS Specifications

Module

Module

Jump to...

  • USB

    Up to five USB devices

  • Connectivity

    Ethernet and Wi-Fi (built into Cube)
    Up to four iOS devices

  • Compatibility

    Cube 605/655, 715/755, 805/855

  • Interfaces

    Controlled through Cube
    4x powered USB 2.0 host port

  • Battery

    Internal lithium-ion

  • Power Consumption

    Nominal: 0.5 W, up to 5 W per USB device
    Power supplied by Cube

  • Temperature

    Operating: 14 to 122 Degree F (-10 to 50 Degree C)
    Storage: -40 to 194 Degree F (-40 to 90 Degree C)

  • Humidity

    Operating: 5% to 95% (non-condensing)
    Storage: Maximum 90%

  • Construction

    Milled aluminum (Chassis), regulation-compliant PCB

  • Dimensions

    1 x 3 x .4.7" (24 x 77 x 120mm)

  • Weight

    7.9 oz (224g)

Encoder

Jump to...

  • Video Inputs

    1x SD/HD-SDI (75 Ohms BNC)
    1x HDMI type A receptacle

  • Channel Bonding

    TeraLink

  • Supported Resolutions

    1080p 23.98/24/25/29.97/30/50/59.94/60
    1080i 50/59.94/60
    1080psF 23/24/25/29/30
    720p 50/59.94/60
    576i
    480i
    480p (for HDMI input only)
    576p (for HDMI input only)
    Ingests 1080p 50/59/60

  • Video Compression

    H.264, Baseline, Main, and High Profile
    H.265, Baseline, Main and High Profile

  • Supported Video Bit Rates

    250 kbps to 15 Mbps
    15 Mbps (wired), 10 Mbps (Wi-Fi)

  • Test Pattern Generator

    Supports custom test pattern

  • Video Format

    Built-in video scaler and deinterlacer

  • Color Correction

    CDL/1024 1D LUT (supports 10-bit color)
    33 x 33 x 33 3D LUT (supports 10-bit color)

  • Network Protocols

    TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

  • Video Transport Support

    Supported Video Transport Protocols: RTMP
    RTP, RTSP, RTSP over HTTP
    MPEG-TS (MPEG-TS is an optional paid license)

  • Remote Control

    Teradek Core

  • Software Integration

    Ustream, YouTube Live, Facebook, and new Livestream

  • Audio Compression

    AAC-LC, MPEG Layer 2

  • Audio Input

    Embedded audio input
    Analog line or mic in, adjustable gain

  • Audio Output

    Headphone output

  • Interfaces

    Http: WebUI for configuration and control
    Configuration Interfaces:
    OLED display with joystick navigation button
    Feature-rich WebUI for configuration and control

  • Switches

    On/Off and reset switch

  • Recording storage

    SD Card: Full-size

  • Mobile App

    Vuer, Live:Air

  • USB Interface

    Powered USB 2.0 host port

  • Ethernet

    10/100/1000 BASE-T gigabit

  • Wi-Fi

    2.4/5 GHz 802.11 ac/a/b/g/n MiMo

  • Channel Selection

    Auto with three Modes: 2.4 or 5 GHz, Auto 2.4 GHz only, Auto (5 GHz only)
    Configurable to specific channels

  • Encryption

    802.1x, 802,11i, WPA2, WPA, and WEP 64/128 TKIP 128-bit AES

  • Power Input

    2-pin connector power input

  • Power Consumption

    Nominal: 8 W, 7 W (no Wi-Fi)

  • Power Input

    Auxiliary: 6-28 VDC

  • Mount

    Can be mounted horizontally or vertically with 1/4"-20 mounting holes

  • Construction

    Milled aluminum

  • Dimensions

    4.75 x 3 x 1.1" [120.7 x 76.2 x 27.9mm]

  • Weight

    11.6 oz (328.9g)

About Teradek Cube 755 + Bond + MPEG-TS

Bond
The Bond expansion module seamlessly connects to any Cube 600, 700, or 800 series through a pogo pin connector. Once connected, the module offers up to 4 additional modem connections via USB or 4-pin connector. A built-in 5 minute Li-Ion offers continuous power during battery swaps.


Cube
At the heart of Bond is Cube, a High-Profile H.264 and H.265 encoder that supports bit rates up to 30Mbps and a boot-to-live time of 20 seconds. Cube is capable of streaming in 4K and includes a series of professional features such as adaptive streaming, closed-captioning, and both HDMI and SDI inputs.

Teradek Cube 755 + Bond + MPEG-TS Features

  • Real-Time H.265/H.264 Encoder with Network Bonding
  • H265 and H264 encoding. H265 can send the same quality as H264 with half of the bandwidth
  • SDI and HDMI
  • Maximum 30 Mbps
  • Maximum input resolution 1080p60
  • 10 Network connections: Combine up to 5 USB connections, WifFi and Ethernet. WiFi can be used with a regular WiFi, a hotspot or up to 4 simultaneous iPhones
  • Full duplex IFB. Only when used with the new generation decoders

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Real-Time H.265/H.264 Encoder with Network Bonding
  • H265 and H264 encoding. H265 can send the same quality as H264 with half of the bandwidth
  • SDI and HDMI
  • Maximum 30 Mbps
  • Maximum input resolution 1080p60
  • Full duplex IFB. Only when used with the new generation decoders

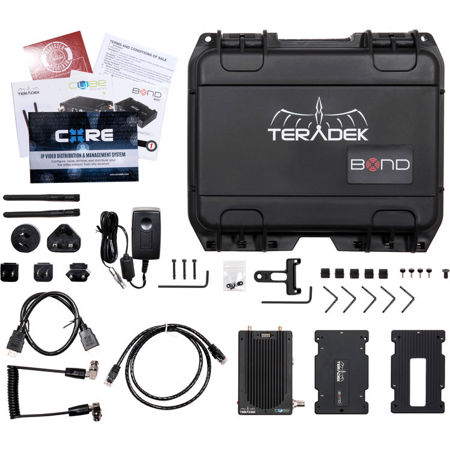

What's in the box:

  • 1x Bond Module
  • 1x 2-Pin Connector to 30 W AC Adapter 6' Cable with International Plugs
  • 5x USB Modem Clips
  • 1x USB Modem Plate
  • 4x Thumb Screw Black 4-40 x 3/8 in Length
  • 1x Cube Encoders
  • 1x 2-Pin Connector to 18W AC Power Adapter
  • 1x Ethernet Cable
  • 1x SDI 10 " Cable (BNC to BNC)
  • 1x HDMI 36 " Cable (Full Type A to Full Type A)
  • 1x Hot Shoe Adapter
  • 2x Wireless Antennas (2dBi 2.4/5.8 Ghz)
  • Teradek 1 Year Limited Warranty
