Teradek Bond 757 - Cube 755 + Bond + MPEG-TS Package, 4-Pin
See all Teradek items

Teradek Bond 757 - Cube 755 + Bond + MPEG-TS Package, 4-Pin

SKU: TE100758
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Teradek Cube 755 + Bond + MPEG-TS Specifications

General

General

Jump to...

  • Bond to Modem Connection

    4-Pin

Module

Jump to...

  • USB

    Up to five USB devices

  • Connectivity

    Ethernet and Wi-Fi (built into Cube)
    Up to four iOS devices

  • Compatibility

    Cube 605/655, 715/755, 805/855

  • Interfaces

    Controlled through Cube
    4x powered USB 2.0 host port

  • Battery

    Internal lithium-ion

  • Power Consumption

    Nominal: 0.5 W, up to 5 W per USB device
    Power supplied by Cube

  • Temperature

    Operating: 14 to 122 Degree F (-10 to 50 Degree C)
    Storage: -40 to 194 Degree F (-40 to 90 Degree C)

  • Humidity

    Operating: 5% to 95% (non-condensing)
    Storage: Maximum 90%

  • Construction

    Milled aluminum (Chassis), regulation-compliant PCB

  • Dimensions

    1 x 3 x .4.7" (24 x 77 x 120mm)

  • Weight

    7.9 oz (224g)

Encoder

Jump to...

  • Video Inputs

    1x SD/HD-SDI (75 Ohms BNC)
    1x HDMI type A receptacle

  • Channel Bonding

    TeraLink

  • Supported Resolutions

    1080p 23.98/24/25/29.97/30/50/59.94/60
    1080i 50/59.94/60
    1080psF 23/24/25/29/30
    720p 50/59.94/60
    576i
    480i
    480p (for HDMI input only)
    576p (for HDMI input only)
    Ingests 1080p 50/59/60

  • Video Compression

    H.264, Baseline, Main, and High Profile
    H.265, Baseline, Main and High Profile

  • Supported Video Bit Rates

    250 kbps to 15 Mbps
    15 Mbps (wired), 10 Mbps (Wi-Fi)

  • Test Pattern Generator

    Supports custom test pattern

  • Video Format

    Built-in video scaler and deinterlacer

  • Color Correction

    CDL/1024 1D LUT (supports 10-bit color)
    33 x 33 x 33 3D LUT (supports 10-bit color)

  • Network Protocols

    TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

  • Video Transport Support

    Supported Video Transport Protocols: RTMP
    RTP, RTSP, RTSP over HTTP
    MPEG-TS (MPEG-TS is an optional paid license)

  • Remote Control

    Teradek Core

  • Software Integration

    Ustream, YouTube Live, Facebook, and new Livestream

  • Audio Compression

    AAC-LC, MPEG Layer 2

  • Audio Input

    Embedded audio input
    Analog line or mic in, adjustable gain

  • Audio Output

    Headphone output

  • Interfaces

    Http: WebUI for configuration and control

  • Configuration Interfaces

    OLED display with joystick navigation button
    Feature-rich WebUI for configuration and control

  • Switches

    On/Off and reset switch

  • Recording storage

    SD Card: Full-size

  • Mobile App

    Vuer, Live:Air

  • USB Interface

    Powered USB 2.0 host port

  • Ethernet

    10/100/1000 BASE-T gigabit

  • Wi-Fi

    2.4/5 GHz 802.11 ac/a/b/g/n MiMo

  • Channel Selection

    Auto with three Modes: 2.4 or 5 GHz, Auto 2.4 GHz only, Auto (5 GHz only)
    Configurable to specific channels

  • Encryption

    802.1x, 802,11i, WPA2, WPA, and WEP 64/128 TKIP 128-bit AES

  • Power Input

    2-pin connector power input

  • Power Consumption

    Nominal: 8 W, 7 W (no Wi-Fi)

  • Power Input

    Auxiliary: 6-28 VDC

  • Mount

    Can be mounted horizontally or vertically with 1/4"-20 mounting holes

  • Construction

    Milled aluminum

  • Dimensions

    4.75 x 3 x 1.1" (120.7 x 76.2 x 27.9mm)

  • Weight

    11.6 oz (328.9g)

Other

Jump to...

  • UPC Code

    818264020890

About Teradek Cube 755 + Bond + MPEG-TS

Bond
The Bond expansion module seamlessly connects to any Cube 600, 700, or 800 series through a pogo pin connector. Once connected, the module offers up to 4 additional modem connections via USB or 4-pin connector. A built-in 5 minute Li-Ion offers continuous power during battery swaps.


Cube
At the heart of Bond is Cube, a High-Profile H.264 and H.265 encoder that supports bit rates up to 30Mbps and a boot-to-live time of 20 seconds. Cube is capable of streaming in 4K and includes a series of professional features such as adaptive streaming, closed-captioning, and both HDMI and SDI inputs.

Teradek Cube 755 + Bond + MPEG-TS Features

  • Real-Time H.265/H.264 Encoder with Network Bonding
  • H265 and H264 encoding. H265 can send the same quality as H264 with half of the bandwidth
  • SDI and HDMI
  • Maximum 30 Mbps
  • Maximum input resolution 1080p60
  • 10 Network connections: Combine up to 5 USB connections, WifFi and Ethernet. WiFi can be used with a regular WiFi, a hotspot or up to 4 simultaneous iPhones
  • Full duplex IFB, Only when used with the new generation decoders

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Real-Time H.265/H.264 Encoder with Network Bonding
  • H265 and H264 encoding. H265 can send the same quality as H264 with half of the bandwidth
  • SDI and HDMI
  • Maximum 30 Mbps
  • Maximum input resolution 1080p60
  • Full duplex IFB, Only when used with the new generation decoders

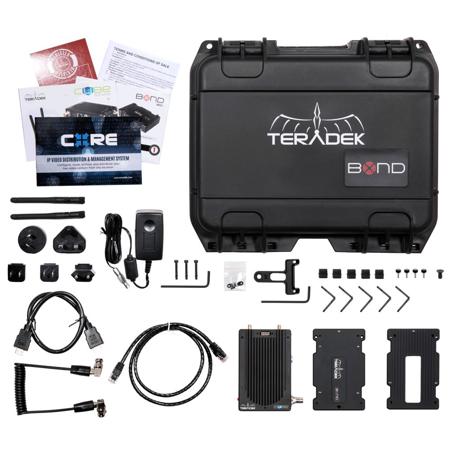

What's in the box:

  • 1x Bond Module
  • 1x 2-Pin Connector to 30 W AC Adapter 6' Cable with International Plugs
  • 5x USB Modem Clips
  • 1x USB Modem Plate
  • 4x Thumb Screw Black 4-40 x 3/8 in Length
  • 1x Cube Encoders
  • 1x 2-Pin Connector to 18W AC Power Adapter
  • 1x Ethernet Cable
  • 1x SDI 10 " Cable (BNC to BNC)
  • 1x HDMI 36 " Cable (Full Type A to Full Type A)
  • 1x Hot Shoe Adapter
  • 2x Wireless Antennas (2dBi 2.4/5.8 Ghz)
  • Teradek 1 Year Limited Warranty
