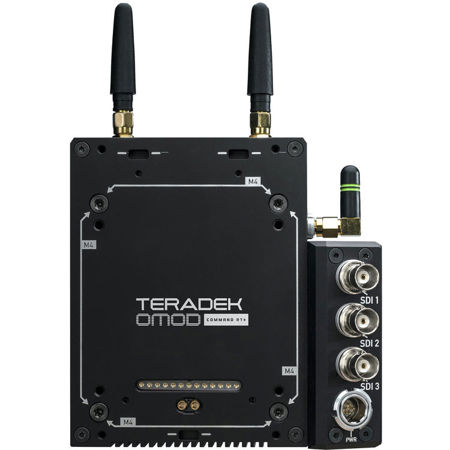

Teradek OMOD Command RT+ Expander Module for RED DSMC2 Cameras

OMOD COMMAND RT+ is a module for your RED DSMC2 camera that adds 3-axis wireless lens control for use with Teradek RT's MK3.1 hand controller and Thumbwheels in addition to:

• Ambient ACN Wireless Timecode and Internal Genlock Generator
• Powerful Dual Band Wi-Fi and Advanced Signal Path Options
• Wireless Color Processing Functionality with Three Independent HDSDI outputs

Command, Control and Communications between the camera, cinematographer and crew on the connected set. Live color grade to the camera with:

• Pomfort LiveGrade
• Qtake
• FilmLight Prelight
• Colourlab
• Codex Live

You can also connect Teradek RT lens motors for three axis PL lens control. LATITUDE allows control of focus and iris of EF lenses over RF at ranges up to 1500'. The DSMC2's HDMI monitor path is converted to 10-bit HDSDI. CDL/1024 1D LUTs and 33x33x33 3D LUTs with ACES compliance, all in real-time, wireless to the camera. Real-time resolution and frame-rate conversions including 1080 60i output. Output the leading HDR display standard, SMPTE 2084, for real-time HDR images while shooting in addition to simultaneous monitoring standard dynamic range (SDR). Extend the functionality and features of your RED WEAPON, EPIC-W, SCARLET-W or RAVEN DSMC2 camera with advanced signal and meta-data I/O, lens control integration, professional field audio, color processing and look management.

Wireless Lens Control
OMOD POE and OMOD Command RT+ feature an integrated, internal RF lens control receiver for Teradek RT/Latitude. Other LCS options are in development. Control EF lenses with thumbwheels or over long range RF, ideal for drones and gimbals or plug lens motors directly into the OMOD.

Live Grade & Look Management
OMOD COMMAND and Command RT+ feature advanced signal path options and color processing functionality with three independent HD-SDI outputs. CDL/1024 1D LUTs and 33x33x33 3D LUTs with ACES compliance, all in realtime, wirelessly to the camera. Integrated with industry leading live-grading solutions Pomfort LiveGrade, CODEX Live and QTAKE Advanced Video Assist with other integrations in the works. Grade CDLs and 3D LUTs live and wirelessly - direct to the camera from a laptop or iOS device.

Real-time HDR-2084 Monitoring
Output the leading HDR display standard, SMPTE 2084, real-time HDR images while shooting, in addition to simultaneous monitoring standard dynamic range (SDR).

Wireless Internal Timecode & Genlock
OMOD COMMAND and Command RT+ include an integrated AMBIENT ACN TimeCode Module for receive/transmit and sync timecode wirelessly to any AMBIENT ACN slate or device like the Tiny Lockit or Master Lockit. Internally generated genlock assure precise shutter sync with the timecode. AMBIENT's MasterLockit can also capture the clip filenames from the OMOD.

Monitor Calibration Integration
OFFHOLLYWOOD and SpectraCal have collaborated to integrate CalMAN software, the industry standard for ensuring accuracy in video displays, into OMOD COMMAND and Command RT+. The OMOD delivers the necessary video test patterns at CalMAN's direction. CalMAN measures the display's output, creates a 3D display correction LUT and loads it into the OMOD onto any specific SDI monitor output path allowing three independent outputs with monitor specific calibration LUTs.

OMOD PRO AUDIO
OMOD models that feature OMOD PRO AUDIO have best-in-class pre-amps, push-to-operate controls, high pass filters, AES digital audio input and per channel line / mic levels and Phantom power (+48V) empowering documentary filmmakers and ENG operators with professional, high quality in-camera audio.
