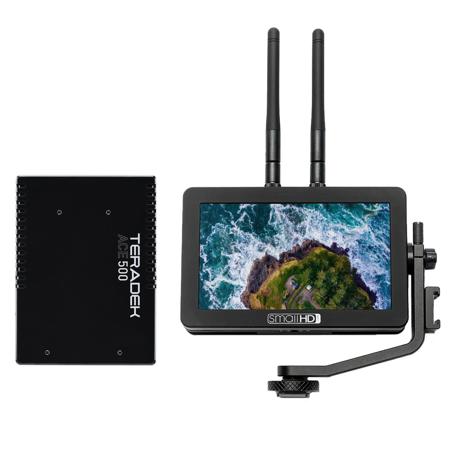

Teradek On-Camera Monitor Bundle, Includes SmallHD Focus Bolt 500 Transmitter and Ace 500 Receiver

IPS Touchscreen

5"

1280x720

294 PPI

16:9

5

800 nits

70% NTSC

10-bit processing

160 Degrees

White LED

Yes

Supports UHD-1 4K at 30/29.97 at RGB 444 8bit, YCC 444 8bit, YCC 422 12 bit & 24/23.98 at RGB 444 10/8 bit, YCC 444 10/8bit, YCC 422 12 bit, YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50

720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200

HDMI

Stereo Out (headphones)

1x Wireless

No

<1mSec (0.001 sec)

1080p60/59.94, 1080p/50, 1080i60/59.94, 1080i/50, 1080p30/29.97, 1080p24/23.98, 720p60/59.94, 720p/50, 480i60/59.94, 480p60/59.94, 576i50, 576p/50

Visually lossless

48 kHz 24-bit PCM

No

5GHz

AFS (Automatic frequency selection)

AES-128

22dBm EIRP

Up to 500' line of sight (or 500' LoS)

Can coexist with Wi-Fi and 5 Ghz cordless phones

1x Micro-HDMI Input

1/8" Stereo mini-jack

1x Sony L-Style Battery slot

Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor

1x Micro-USB for future use

Capacitive Touchscreen

Capture Tool

SD Card for Image Capture / Overlay, LUT Loading, Firmware Upgrades

Compatible with SmallHD BTR1 Wireless Remote

1x Sony L-Style Battery slot, 1x barrel connector for powering camera

6.0 - 8.4V

10.4W

Battery Only Device

Yes

Li-ion

Mirrors Input Voltage from battery

2000mAh - 6300mAh

Monitor does not support the charging of batteries

FCC, IC, CE

32 to 113 deg. F (0 to 45 deg. C)

(3) 1/4-20 thread points (top, bottom & right side)

2x & 4x with smooth pan via pinch zoom gesture

Preset Aspect Ratios & Customizable

Canon 5DMkii & Canon 7D

Underscan Only

1.33x, 1.5x, 1.66x, 2.0x

Automatic or Manual Control

Automatic or Manual Control

User Adjustable Color Style and Intensity

User Adjustable Intensity

Spectrum, Arri Style and Fully User Customizable

Dual - User Configurable

Luma & RGB Style, Fully User Customizable with Region of Interest Highlighting

Yes

Fully User Customizable

Luma & RGB Style

No

With Dedicated Button and Image Gallery

Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

No

Applied on Output Preview Page

Via SD Card or USB Storage Device

Opacity Slider and Blink Setting

No

Up to 8 channel

1x HDMI Type-A receptacle

HDMI: RGB 4:4:4, 8-bit

<0.001sec (without format conversion)

1080p 23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p59.94/576p50 (via HDMI ports only)
480i(NTSC)/576i(PAL)

Visually lossless

Yes

No

No

48kHz 24-bit PCM

Embedded Audio Input

Aluminum and ABS plastic

1/4"-20 mounting threads
2x 4-40 mounting holes

OSD that appears on the Video Output which can be controlled with the Menu Joystick

Reset Button

Feature-rich Bolt Manager Application for OSX & Windows

Upgrade via Mini-USB

Internal Antennas

Non-DFS Frequencies:
US: 5.19 to 5.23 GHz and 5.755 to 5.795 GHz
EU & JP: 5.19 to 5.23 GHz
DFS Frequencies:
US: 5.27 to 5.55 GHz and 5.67 GHz
EU & JP: 5.27 to 5.67 GHz

Auto only (NOT configurable)

AES-128

Up to 17dBm

Up to 500' line of sight

Unicast / Multicast

Can coexist with Wi-Fi and 5GHz cordless phones

Barrel Connector 7-17 VDC

No

7.3 Watts (Measured at 1080p60)

0 to 40 deg. C (32 to 104 deg. F)

Transmitter (HxWxD): 3.3 x 1.18 x 5.25" (8.38 x 3.00 x 13.34cm)
Receiver: 3.4 x 4.5 x 0.6" (8.64 x 11.43 x 1.52cm)

Transmitter: 9.2 oz (260.82g) (without battery)
Receiver: 146g (5.15 oz)

818264025444
