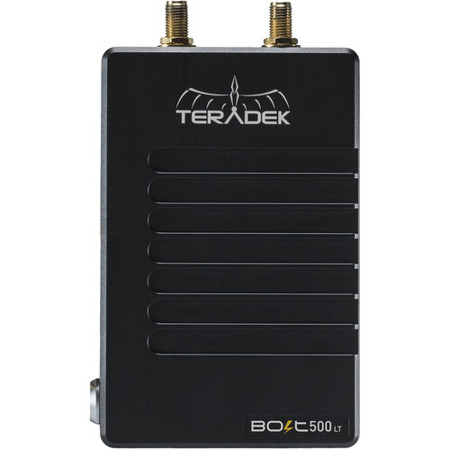

Teradek Bolt 500 LT HDMI Wireless Transmitter, Up to 500' Line of Sight

SKU: TE101906

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Teradek Bolt 500 LT Transmitter Specifications

  • Video Inputs

    1x HDMI (Type A receptacle)

  • Video Outputs

    1x HDMI Loop-out (Type A receptacle)

  • SDI Ancillary Data Support

    Supports metadata, timecode and start/stop flags from certain camera manufacturers

  • Color Sampling

    HDMI: RGB 4:4:4, 8-bit

  • Delay Tx to Rx

    <0.001sec (without format conversion)

  • Supported Resolutions

    1080p 23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p59.94/576p50 (via HDMI ports only)
    480i(NTSC)/576i(PAL)

  • Video Compression

    Visually lossless

  • Color Correction

    CDL/1024 1D LUT (supports 10-bit color)
    33x33x33 3D LUT (supports 10-bit color)

  • Audio Compression

    48kHz 24-bit PCM

  • Audio Input

    Embedded Audio Input

  • HTTP Interface

    No

  • Configuration Interfaces

    No

  • Switches

    On/Off and Reset Switch

  • Desktop App

    Feature-rich Bolt Manager Application for OSX & Windows

  • USB Interface Functionality

    Upgrade via Mini-USB

  • Wireless Network

    Non-DFS Frequencies:
    US: 5.19 - 5.23GHz and 5.755 - 5.795GHz
    EU & JP: 5.19-5.23GHz

    DFS Frequencies:
    US: 5.27 - 5.55GHz and 5.67GHz
    EU & JP: 5.27 - 5.67GHz

  • RF Channel Selection

    Auto only (Not configurable)

  • Encryption

    AES-128

  • RF Power

    17dBm EIRP

  • Range

    Up to 500' (152.40m) line of sight

  • Unicast Multicast

    Unicast / Multicast

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones

  • Power Input

    2-Pin Connector 7-17 VDC

  • Battery

    No

  • Nominal Power Consumption

    7.3Watts (Measured at 1080p60)

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Construction

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with M3 and 1/4" holes
    3/8" ARRI style accessory mount

  • Dimensions

    0.95 x 2.6 x 4.47" (24.13 x 66.04 x 113.54mm)

  • Weight

    8 oz (226.80g)

  • UPC Code

    818264023051

About Teradek Bolt 500 LT Transmitter

The Bolt LT takes Teradek's industry-leading wireless performance and packages it into an affordable, streamlined series of zero-delay wireless video systems. The LT line is available in 500ft. or 1000ft. max-range models, with the LT 500 offering external antennas on the transmitter for enhanced wireless performance. Not only lighter, but smaller too, the Bolt LT is the essential, no-frills high performance wireless video system. Each transmitter includes a single 3G-SDI or HDMI input with matching looping output, while the receiver includes a single 3G-SDI or HDMI output. Several 3/8" and 1/4"-20 mounting points allow Bolt LT to mount seamlessly to any camera rig and integrated bi-directional Sony L-series or Canon LP-E6 pass-through battery plates allow you to power your system far more easily than before.

Existing 3rd-generation Bolt users can rejoice because Teradek designed the Bolt LT to be backward compatible with the Bolt 500, 1000, Sidekick II and 703 Bolt, as well as the powerful new Bolt XT. This feature makes it easier than ever to build onto existing Bolt systems or plug into others already operating on set. The Bolt LT also retains critical features from the previous generation, including AES 128 encryption to protect your video feed from prying eyes and multicasting to up to 4 receivers.

Teradek Bolt 500 LT Transmitter Features

  • Compatible with 3rd generation Bolt 500, Bolt 500 XT, Sidekick II, Focus Bolt RX and 703 Bolt
  • HDMI loop out on TX
  • External antennas on Bolt 500 TX
  • Smaller and lighter chassis design with robust mounting points (3/8" and 1/4"-20)
  • Extremely affordable and offers the same wireless performance as the XT

What's in the box:

  • Teradek Bolt 500 LT HDMI Wireless Transmitter
  • 2-pin Connector to PowerTap 18 " Cable
  • Hot Shoe Adapter (1/4 "-20 ")
  • 2x Antenna 2dBi Wi-Fi 2.4/5.8GHz
  • USB 2.0 Cable (A-Male to Mini-B)
  • HDMI 18 " Cable (Type A to Type A)
  • Teradek 1 Year Limited Warranty
