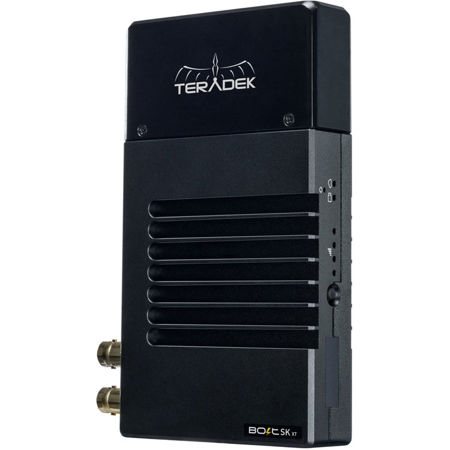

Teradek Bolt Sidekick XT 500 Universal Wireless Video Receiver
See all Teradek items

Teradek Bolt Sidekick XT 500 Universal Wireless Video Receiver

SKU: TE101953
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Teradek Bolt Sidekick Specifications

Video

Video

Jump to...

  • Video Outputs

    1 x HDMI Type-A receptacle
    2x SD/HD/3G-SDI (75 Ohm BNC)

  • SDI Ancillary Data Support

    Supports metadata, timecode, and start/stop flags from certain camera manufacturers.

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
    HDMI: RGB 4:4:4, 8-bit

Supported Resolutions

Jump to...

  • Supported Resolutions

    1080p60/59.94/50/30/29.97/25/24/23.98
    1080psf30/29.97/25/24/23.98
    1080i60/59.94/50
    720p60/59.94/50
    480p59.94/576p50 (via HDMI ports only)
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...

  • Video Compression

    visually lossless

  • Test Pattern Generator Support

    Yes

  • Video Format Conversion Support

    Yes

  • Color Correction

    CDL/1024 1D LUT (supports 10-bit color)
    CDL/1024 1D LUT (supports 10-bit color)

Audio Processing

Jump to...

  • Audio Compression

    48KhZ 24-bit PCM

Outputs

Jump to...

  • Audio Output

    Embedded Audio Output

Interfaces

Jump to...

  • Configuration Interfaces

    OLED Screen with Menu Joystick Navigation

  • Switches

    On/Off and Reset Switch

  • Desktop App

    Feature-rich Bolt Manager Application for OSX & Windows

  • USB Interface Functionality

    Upgrade via Mini-USB

Network

Jump to...

  • Wireless

    Non-DFS Frequencies:
    US: 5.19 - 5.23 GHz and 5.755 - 5.795 GHz
    EU & JP: 5.19 - 5.23 GHz
    DFS Frequencies:
    US: 5.27 - 5.55 GHz and 5.67 GHz
    EU & JP: 5.27 - 5.67 GHz
    (20MHz and 40MHz channels)

  • RF Channel Selection

    Auto only (Not configurable)

  • Encryption

    AES-128

  • RF Power

    15dBm EIRP

  • Range

    Up to 500' line of sight

  • Unicast Multicast

    1 Bolt TX can transmit to a maximum of 4 RX

  • Noise Rejection

    Can coexist with WiFi and 5GHz cordless phones

Power

Jump to...

  • Power Input

    2-Pin Connector 7-28 VDC

  • Nominal Power Consumption

    9 Watts (Measured at 1080p60)

Environmental

Jump to...

  • Operating Temperature

    32 degree F - 104 degree F (0 degree - 40 degree C)

Physical

Jump to...

  • Construction

    Milled Aluminum (Chassis) and regulation-compliant PCB
    Plastic Cap

  • Mountability

    Multiple mounting options with M3 and 1/4" holes

  • Dimensions

    6 x 3.4 x 1" (152 x 86 x 25mm)

  • Weight

    11.2 oz (318g)

Other

Jump to...

  • UPC Code

    818264023495

1 Accessories for Teradek Bolt Sidekick XT 500 Universal Wireless Video Receiver

  • All Accessories (1)
  • Cables & Adapters (1)
Teradek 18 Watt AC Adapter 6ft Cable to 2-pin Lemo
Teradek 18 Watt AC Adapter 6ft Cable to 2-pin Lemo
$139.00
Recommended

About Teradek Bolt Sidekick

The Sidekick XT is Teradek's top of the line universal 500 ft. receiver compatible with all versions of our Bolt 500, 1000, 3000, XT and LT models. With dual SDI outputs, 3D LUT support, and a built-in 5 GHz Spectrum Analyzer, the Sidekick XT is Teradek's most powerful universal receiver yet.

Note: You must have an existing Transmitter to pair this Receiver with and each Transmitter can pair with a total of 4 Receivers.

Teradek Bolt Sidekick Features

  • 500' wireless range
  • Dual SDI outputs + HDMI output
  • Compatible with all Bolt 500, 1000, 3000 systems + XT and LT
  • 3D LUTs and 5GHz Spectrum Analyzer built-in
  • Supports timecode & metadata

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 500' wireless range
  • Dual SDI outputs + HDMI output
  • Compatible with all Bolt 500, 1000, 3000 systems + XT and LT
  • 3D LUTs and 5GHz Spectrum Analyzer built-in
  • Supports timecode & metadata

What's in the box:

  • Bolt Sidekick XT Receiver
  • USB 2.0 Cable (A-Male to Mini-B)
  • PSU 2-Pin Connector to 18W AC Adapter Cable (6')
  • HDMI Type A to Type A Cable (18 ")
  • SDI BNC to BNC Cable (10 ")
  • Teradek 1 Year Limited Warranty
