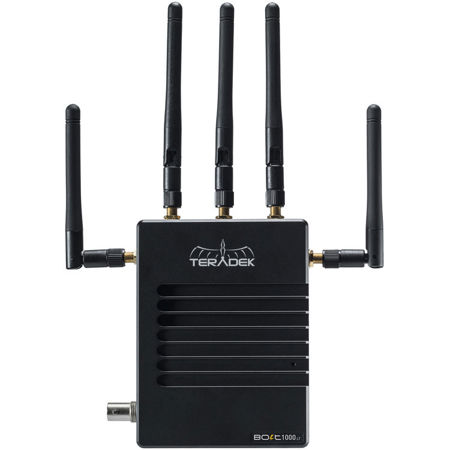

Teradek Bolt 1000 LT 3G-SDI Wireless Video Transmitter and Receiver Deluxe Kit, 1000' Line of Sight, Gold Mount

SKU: TE1019551G

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Teradek Bolt 1000 LT Deluxe Kit Specifications

Additional Included Items

Additional Included Items

Jump to...
  • Additional Included Items

    - Military-Grade Protective SKB Case
    - Wooden Camera Ultra Arm Mini Monitor Mount (1/4"-20 to 1/4"-20) with Arm Ball (3/8"-16)
    - Wooden Camera NATO Lock Kit
    - 9.84x5.91" Vinyl Zipper Bag
    - 2.5mm Hex L Key (3-5/6" Length)
    - Hex L Key (3/16 x 2 13/16" Length)

Transmitter Included Items

Jump to...
  • Transmitter Included Items

    - 18" 2-Pin Connector to PowerTap Cable
    - 1/4"-20 Hot Shoe Adapter
    - 2x 2dBi Wi-Fi 2.4/5.8GHz Antenna
    - USB 2.0 A-Male to Mini-B Cable
    - 10" SDI (BNC to BNC) Cable

Receiver Included Items

Jump to...
  • Receiver Included Items

    - 5x Antennas
    - Thumbscrew
    - 1/4"-20 Lightstand Adapter
    - 6' PSU 2-Pin Connector to 18W AC Adapter Cable
    - USB 2.0 A-Male to Mini-B Cable
    - 10" SDI (BNC to BNC) Cable
    - 14.4V Factory-Installed Gold Mount Female Battery Plate Attached to RX

Transmitter: Video

Jump to...
  • Video Inputs

    1x SD/HD/3G-SDI (75Ohms BNC)

  • Video Outputs

    1x HD/SD/3G-SDI Loop-out (75Ohms BNC)

  • SDI Ancillary Data Support

    Supports metadata, timecode and start/stop flags from certain camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)

  • Delay Tx to Rx

    <0.001sec (without format conversion)

Transmitter: Supported Resolutions

Jump to...
  • Supported Resolutions

    1080p: 23.98/24/25/29.97/30/50/59.94/60
    1080psf: 23.98/24/25/29.97/30
    1080i: 50/59.94/60
    720p: 50/59.94/60
    480p: 59.94
    576p: 50 (via HDMI ports only)
    480i (NTSC)/576i (PAL)

Transmitter: Video Processing

Jump to...
  • Video Compression

    Visually lossless

  • Color Correction

    CDL/1024 1D LUT (supports 10-bit color)
    33x33x33 3D LUT (supports 10-bit color)

Transmitter: Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

Transmitter: Inputs

Jump to...
  • Audio Input

    Embedded Audio Input

Transmitter: Interfaces

Jump to...
  • HTTP

    No

  • Configuration Interfaces

    No

  • Switches

    On/Off and Reset Switch

  • Desktop App

    Feature-rich Bolt Manager Application for OSX & Windows

  • USB Interface Functionality

    Upgrade via Mini-USB

Transmitter: Network

Jump to...
  • Wireless

    Non-DFS Frequencies:
    US: 5.19 to 5.23 GHz and 5.755 to 5.795 GHz
    EU & JP: 5.19 to 5.23 GHz

    DFS Frequencies:
    US: 5.27 to 5.55 GHz and 5.67 GHz
    EU & JP: 5.27 to 5.67 GHz

  • RF Channel Selection

    Auto only (NOT configurable)

  • Encryption

    AES-128

  • RF Power

    19 dbm EIRP (with two 2dbi antennas)

  • Range

    Up to 1000' (304.80m) line of sight

  • Unicast Multicast

    Unicast/Multicast

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones

Transmitter: Power

Jump to...
  • Power Input

    2-Pin Connector 7-28 VDC

  • Battery

    No

  • Nominal Power Consumption

    7.5 Watts (Measured at 1080p60)

Transmitter: Environmental

Jump to...
  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

Transmitter: General

Jump to...
  • Construction

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with M3 and 1/4" holes
    3/8" ARRI style accessory mount

Receiver: Mount

Jump to...
  • Mount Type

    Gold Mount

Receiver: Video

Jump to...
  • Video Outputs

    1x SD/HD/3G-SDI (75Ohms BNC)
    1x USB 3.0 micro B receptacle

  • SDI Ancillary Data Support

    Supports metadata, timecode and start/stop flags from certain camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)

  • Delay Tx to Rx

    <0.001sec (without format conversion)

Receiver: Supported Resolutions

Jump to...
  • Supported Resolutions

    1080p: 23.98/24/25/29.97/30/50/59.94/60
    1080psf: 23.98/24/25/29.97/30
    1080i: 50/59.94/60
    720p: 50/59.94/60
    480p: 59.94
    576p: 50 (via HDMI ports only)
    480i (NTSC)/576i (PAL)

Receiver: Video Processing

Jump to...
  • Video Compression

    Visually lossless

  • Test Pattern Generator Support

    Yes

  • Color Correction

    CDL/1024 1D LUT (supports 10-bit color)
    33x33x33 3D LUT (supports 10-bit color)

Receiver: Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

Receiver: Inputs

Jump to...
  • Audio Input

    Embedded Audio Input

Receiver: Interfaces

Jump to...
  • HTTP

    No

  • Configuration Interfaces

    OLED Screen with Menu Joystick Navigation

  • Switches

    On/Off and Reset Switch

  • Desktop App

    Feature-rich Bolt Manager Application for OSX & Windows

  • USB Interface Functionality

    Upgrade via Mini-USB

Receiver: Network

Jump to...
  • Wireless

    Non-DFS Frequencies:
    US: 5.19 to 5.23 GHz and 5.755 to 5.795 GHz
    EU & JP: 5.19 to 5.23 GHz

    DFS Frequencies:
    US: 5.27 to 5.55 GHz and 5.67 GHz
    EU & JP: 5.27 to 5.67 GHz

  • RF Channel Selection

    Auto only (NOT configurable)

  • Encryption

    AES-128

  • RF Power

    17 dbm EIRP (with one 2 dbi TX antenna)

  • Range

    Up to 1000' (304.80m) line of sight

  • Unicast Multicast

    Unicast/Multicast

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones

Receiver: Power

Jump to...
  • Power Input

    2-Pin Connector 7-17 VDC

  • Battery

    No

  • Nominal Power Consumption

    8.5 Watts (Measured at 1080p60)

Receiver: Environmental

Jump to...
  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

Receiver: General

Jump to...
  • Construction

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with M3 and 1/4" holes

General

Jump to...
  • Case

    Military-standard waterproof hard case with custom foam

  • Dimensions

    Transmitter: 0.95 x 2.6 x 4.47" (2.41 x 6.60 x 11.35cm)
    Receiver: 1.0 x 3.4 x 4.5" (2.54 x 8.64 x 11.43cm)
    Case: 13.5 x 9.5 x 6.5" (34.29 x 24.13 x 16.51cm)
    Zipper Bag: 250 x 150mm (9.84 x 5.91")

  • Weight

    Transmitter: 8 oz (226.80g)
    Receiver: 10.1 oz (286.33g)

  • UPC Code

    818264023600

About Teradek Bolt 1000 LT Deluxe Kit

The Bolt LT takes Teradek's industry-leading wireless performance and packages it into an affordable, streamlined series of zero-delay wireless video systems. Not only lighter, but smaller too, the Bolt LT is the essential, no-frills high performance wireless video system. Each transmitter includes a single 3G-SDI or HDMI input with matching looping output, while the receiver includes a single 3G-SDI or HDMI output.

Several 3/8" and 1/4"-20 mounting points allow Bolt LT to mount seamlessly to any camera rig and integrated bi-directional Sony L-series or Canon LP-E6 pass-through battery plates allow you to power your system far more easily than before. Existing 3rd-generation Bolt users can rejoice because Teradek designed the Bolt LT to be backward compatible with the Bolt 500, 1000, Sidekick II and 703 Bolt, as well as the powerful new Bolt XT.

This feature makes it easier than ever to build onto existing Bolt systems or plug into others already operating on set. The Bolt LT also retains critical features from the previous generation, including AES 128 encryption to protect your video feed from prying eyes and multicasting to up to 4 receivers.

Teradek Bolt 1000 LT Deluxe Kit Features

  • Compatible with 3rd generation Bolt 1000, Bolt 1000 XT, Sidekick II and 703 Bolt
  • SDI loop out on TX
  • External antennas on TX and RX
  • Smaller and lighter chassis design with robust mounting points (3/8" and 1/4"-20)
  • Extremely affordable and offers the same wireless performance as the XT

What's in the box:

  • Teradek Bolt 1000 LT 3G-SDI Wireless Video Transmitter
  • Bolt 1000 LT 3G-SDI Wireless Video Receiver
  • Teradek 1 Year Limited Warranty
  • (See Specifications for Additional Included Items)
