Teradek 3G-SDI/HDMI Wireless Video Transceiver Set, Includes Bolt 3000 XT Transmitter and Bolt 10K Receiver, Gold Mount
SKU: TE1019991G
This item is no longer available.
Share:
Overview
Compare
Specs
Protection

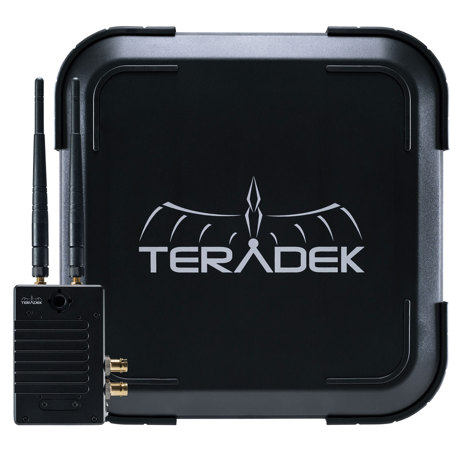

About Teradek Bolt 3000 XT + Bolt 10K
-- Bolt 3000 XT Transmitter --
The Bolt 3000 XT Transmitter sends pristine 1080p60 video wirelessly and instantly to monitors up to 3000 ft. away. Each transmitter can support up to 4 monitor receivers and comes with additional features such as wired/wireless pairing, rapid reconnect, built-in frequency analyzer, rapid reconnect and metadata, timecode & start/stop transport.
• Compatible with 3rd generation Bolt 3000
• Professional software features: 3D LUTs, 5GHz spectrum analyzer, manual channel selection
• Smaller and lighter chassis design with robust mounting points (3/8" and 1/4"-20)
• Dual input (SDI + HDMI) and SDI loop out
The Bolt XT satisfies the needs of the most discerning professionals, from powerful software tools and rock-solid performance to smart power options and backward compatibility. A key feature of the Bolt XT is its backward compatibility with Bolt 500, 1000, 3000, Sidekick II and 703 Bolt, giving users more flexibility building onto their existing systems or linking with others already on set. Unlike alternative wireless video systems, Bolt XT includes a unique AES 128 encryption algorithm to protect your video footage, ensuring that only authorized receivers can connect to your transmitter.
Each transmitter includes an HDMI, 3G-SDI and looping 3G-SDI output. Receivers feature an HDMI output as well as dual 3G-SDI outputs. While wireless performance is critical on set, so are practical mounting options that ensure optimal performance and a quick set-up. With the Bolt XT line, Teradek has added an integrated NATO rail on the receiver, several 1/4"-20 and 3/8" mounting points and an ARRI rosette on the transmitter to greatly improve available mounting options.
An all-new aluminum chassis further reduces the size and weight of the Bolt line, with receivers also allowing for integrated pass-through power. Available battery plate accessories include V- or Gold-mount, in addition to bi-directional Sony L-series or Canon LP-E6 plates on the Bolt 500 XT. Teradek has also replaced the internal antennas on the Bolt 500 XT transmitter with an external set to enhance wireless performance when operating in environments with large obstacles or heavy interference.
The Bolt XT, like the previous generation, is multicast capable up to 4 receivers and includes built-in cross conversion and Teradek's proprietary software utilities, including a manual frequency-selection tool, 3D LUT engine and a 5GHz spectrum analyzer to keep an eye on interference in your area.
-- Bolt 10K Receiver --
Bolt 10K is an ultra high-performance, zero-delay video receiver with a range of 10,000 feet. The RX is compatible with Bolt 3000 transmitters and functions seamlessly alongside 3000 receivers, Sidekick II and the 703 Bolt. Bolt 10K receivers support 1080p60 4:2:2 video and with a newly-designed chassis, hassle-free Tx/Rx pairing, robust range and visually lossless HD quality make this our strongest unit we've ever built.
Teradek Bolt 3000 XT + Bolt 10K Features
- Complete Bolt Set with Protective Utility Case
- Super long range (10,000 ft.) receiver for Bolt 3000 TX
- Works alongside Bolt 3000, 703 Bolt and Sidekick II receivers
- Fully integrated panel antenna
- Built-in Gold battery plate
- 3G-SDI and HDMI outputs
