Teradek Bolt 4K 750 12G-SDI/HDMI Wireless TX & RX Deluxe Kit, 750', Gold Mount
See all Teradek items

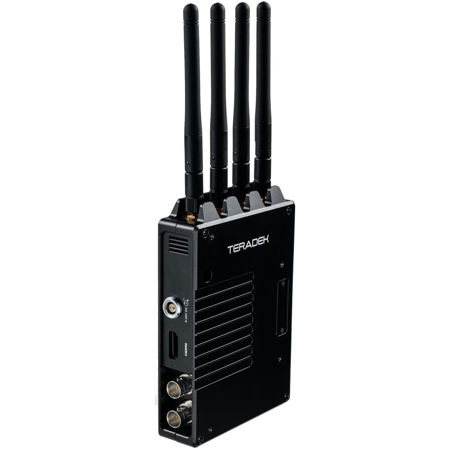

Teradek Bolt 4K 750 12G-SDI/HDMI Wireless Transmitter and Receiver Deluxe Kit, 750' Range, Gold Mount

SKU: TE102100G
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Teradek 10-2210: Picture 1 regular
Teradek Bolt 4K LT 1500 3G-SDI/HDMI Wireless Tx, Rx Deluxe Kit, 1500',Gold Mount
$8,290.00
Teradek 10-2260: Picture 1 regular
Teradek Bolt 6 LT 3G-SDI/HDMI Wireless Tx & Rx Deluxe Kit, Gold Mount,750' Range
$3,690.00
Teradek Bolt 6 LT w/Int Antenna: Picture 1 regular
Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit, Gold Mount
$3,690.00
Teradek 10-2270: Picture 1 regular
Teradek Bolt 6 LT 3G-SDI/HDMI Wireless Tx & Rx Deluxe Kit,Gold Mount,1500' Range
$8,690.00$7,290.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Teradek Bolt 4K Specifications

Additional Included Items

Additional Included Items

Jump to...

  • Additional Included Items

    Hot Shoe Adapter
    2x 18" (Bit 118) 2-Pin Connector to PowerTap Cable
    18" (Bit 718) 2-Pin Connector to 2-Pin Connector (Alexa) Cable
    3' USB Male Type A (Full) to USB Male Type B (Micro) Cable
    2x 18" Ultra Thin HDMI Male Type A (Full)-HDMI Male Type A (Full) Cable
    2x 18" SDI 12G BNC to BNC Cable
    4x Screw FlatHead Phillips Black Oxide 18-8 S S 0-80 x 1/8"
    2.5mm Hex L Key (3-5/8")
    2x Screw Socket Cap A S/M3 x 16mm

  • Additional Included Items (Contd.)

    PSU 2-Pin Connector to 30W AC Adapter (Int) with 6' Cable
    Quick Start Guide

Transmitter: Video

Jump to...

  • Video Inputs

    1x 12G-SDI SMPTE 2082-1 standard / 75 Ohm (accepts 12G-SDI, 6G-SDI, or 3G-SDI)
    1x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4)

  • Video Outputs

    1x Loopout 12G-SDI SMPTE 2082-1 standard / 75 Ohm

  • Sdi Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit

  • Input Cross Conversion

    Yes, HDMI to SDI

  • Delay Tx To Rx

    <0.001sec

Transmitter: Supported Resolutions

Jump to...

  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Transmitter: Video Processing

Jump to...

  • Video Compression

    Visually Lossless

  • Video Format Conversion Support

    Connect an HD source to the Tx and get a 4K signal out of Rx
    Connect a 4K source to the Tx, get HD resolution out of Rx
    You can also mix & match from a single source:
    4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx
    Input/output configurations are controlled directly on units or via Bolt 4K app

  • Color Correction

    None

Transmitter: Audio Processing

Jump to...

  • Audio Format

    48kHz 24-bit PCM

Transmitter: Inputs

Jump to...

  • Audio Input

    Embedded SDI/HDMI Audio Input (2 Channel)

Transmitter: Interfaces

Jump to...

  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • USB Interface Functionality

    Upgrade via Micro-USB

Transmitter: Network

Jump to...

  • Antennas

    4 External 2dBi RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz and 5.755 - 5.795 GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • Channel Bandwidth

    13x 40MHz wide channels

  • Rf Channel Selection

    Auto, Manual
    Manual available for non-DFS Channels

  • Encryption

    AES-256, RSA-1024 key exchange

  • Rf Power

    19 dbm EIRP (4 external 2dBi antennas) (<80mW transmit power)

  • Range

    Up to 750', line of sight

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can coexist with WiFi and 5GHz cordless phones
    Can operate up to 6 sets in same location

Transmitter: Power

Jump to...

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Battery

    Gold Mount battery plate

  • Nominal Power Consumption

    20 Watts

Transmitter: Environmental

Jump to...

  • Operating Temperature

    32-104 Degree F (0-40 Degree C)

Transmitter: Physical

Jump to...

  • Construction

    Milled Aluminum(Chassis) and regulation-compliant PCB

  • Mountability

    Integrated Gold-Mount Male and Female (with passthrough power)
    Multiple mounting options with M3 and 3/8" holes

  • Dimensions

    5.1 x 3.5 x 1.06" (132 x 91 x 27mm)

  • Weight

    12.6 oz (358g)

Receiver: Video

Jump to...

  • Video Outputs

    2x 12G-SDI SMPTE 2082-1 standard / 75 Ohm (accepts 12G-SDI, 6G-SDI, or 3G-SDI)
    1x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4)

  • Sdi Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit

  • Input Cross Conversion

    Yes, HDMI to SDI

  • Delay Tx To Rx

    <0.001sec

Receiver: Supported Resolutions

Jump to...

  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Receiver: Video Processing

Jump to...

  • Video Compression

    Visually Lossless

  • Video Format Conversion Support

    Connect an HD source to the Tx and get a 4K signal out of Rx
    Connect a 4K source to the Tx, get HD resolution out of Rx
    You can also mix & match from a single source:
    4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx
    Input/output configurations are controlled directly on units or via Bolt 4K app

  • Color Correction

    17x17x17 3D LUT (supports 10-bit color)

Receiver: Audio Processing

Jump to...

  • Audio Format

    48kHz 24-bit PCM

Receiver: Output

Jump to...

  • Audio Output

    Embedded SDI/HDMI Audio Output (2 Channel)

Receiver: Interfaces

Jump to...

  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • USB Interface Functionality

    Upgrade via Micro-USB

Receiver: Network

Jump to...

  • Antennas

    6 External 2 dBi antennas (included) or optional Array Panel Antenna

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz and 5.755 - 5.795 GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • Channel Bandwidth

    13x 40MHz wide channels

  • Rf Channel Selection

    Auto, Manual
    Manual available for non-DFS Channels

  • Encryption

    AES-256, RSA-1024 key exchange

  • Rf Power

    17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)

  • Range

    Up to 750', line of sight

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can coexist with WiFi and 5GHz cordless phones
    Can operate up to 6 sets in same location

Receiver: Power

Jump to...

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Battery

    Gold Mount battery plate

  • Nominal Power Consumption

    18 Watts

Receiver: Environmental

Jump to...

  • Operating Temperature

    32-104 Degree F (0-40 Degree C)

Receiver: Physical

Jump to...

  • Construction

    Milled Aluminum(Chassis) and regulation-compliant PCB

  • Mountability

    Integrated Gold-Mount Male and Female (with passthrough power)
    Multiple mounting options with M3 and 3/8" holes

  • Dimensions

    4.40 x 5.47 x 1.06" (112 x 139 x 27mm)

  • Weight

    15.2 oz (432g)

Other

Jump to...

  • UPC Code

    818264025239

About Teradek Bolt 4K

Bolt 4K is a revolution in wireless video featuring the best reliability and image quality in the industry. The deluxe kit includes extra cables, adapters, carrying case and other essentials you need to get started.

Real-Time 4K Wireless Video
Transmit uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay. Up to 750 ft. of range.

True HDR Color
Bolt 4K is compliant with the HLG, PQ, and HDR-10 standards, making it an invaluable tool on set for HDR workflows.

Rock-Solid Reliability
Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments.

Universal Compatibility
Each transmitter can send video to up to 6 receivers. Compatible with any model in the Bolt 4K line.

Inputs/Outputs

• Transmitter: 1x 12G-SDI, 1x HDMI 2.0, 1x 12G-SDI looping output
• Receiver: 2x 12G-SDI, 1x HDMI 2.0

Battery Plates
Gold mount battery plate with pass-through power available on both TX & RX.

Camera Metadata
Send start / stop flags, timecode, and other ancillary data over the wireless link. On the receiver side, upload and apply custom 3D LUTs to monitor each take with the look you're after.

Bolt App for iOS and Android
Remotely pair units, configure settings, and utilize all of Bolt 4K's features from any iOS smartphone or tablet. The Bolt App uses Bolt 4K's integrated Bluetooth to give you all of its settings in the palm of your hand.

Teradek Bolt 4K Features

  • Includes: 1 TX, 1 RX in a convenient Protective SKB Case
  • Video: Up to 4K60FPS
  • Range: 750 ft.
  • Inputs: 12G-SDI, HDMI 2.0
  • Outputs: 12G-SDI, HDMI 2.0
  • Multicast: Up to 6 RXs
  • Compatibility: Bolt 4K 750, Bolt 4K 1500

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Includes: 1 TX, 1 RX in a convenient Protective SKB Case
  • Video: Up to 4K60FPS
  • Range: 750 ft.
  • Inputs: 12G-SDI, HDMI 2.0
  • Outputs: 12G-SDI, HDMI 2.0
  • Multicast: Up to 6 RXs

What's in the box:

  • Bolt 750 12G-SDI/HDMI Wireless Transmitter (Gold Mount)
  • Bolt 750 12G-SDI/HDMI Wireless Receiver (Gold Mount)
  • 4x Bolt 4K Wire Cover Plate (Machined Anodized)
  • Bolt 4K TX Mounting Bracket
  • Lightstand Adapter 3/8 "
  • Case XL-Bolt 4K Transmitter/4K Receiver and Antenna Array
  • 9x Antenna 2dBi Wi-Fi 2.4/5.8GHz (Small Antenna)<br>Wooden Camera-Ultra Arm Monitor Mount (1/4-20 to
  • (See Specification Section for Additional Included Items)
  • Teradek 1 Year Limited Warranty
