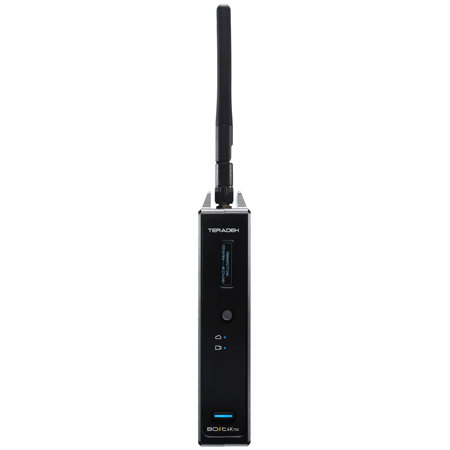

Teradek Bolt 4K 750 12G-SDI/HDMI Wireless Transmitter, 750' Range

SKU: TE102101

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Teradek Bolt 4K 750 TX Specifications

Video
  • Video Inputs

    1x 12G-SDI SMPTE 2082-1 standard / 75 Ohms (accepts 12G-SDI, 6G-SDI, or 3G-SDI)
    1x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4)

  • Video Outputs

    1x Loopout 12G-SDI SMPTE 2082-1 standard / 75 Ohms

  • SDI Ancillary Data Support

    Supports transmitting metadata, timecode and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit

  • Input Cross Conversion

    Yes, HDMI to SDI

  • Delay Tx to Rx

    <0.001sec

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Video Format Conversion Support

    Connect an HD source to the Tx and get a 4K signal out of Rx
    Connect a 4K source to the Tx, get HD resolution out of Rx
    You can also mix & match from a single source:
    4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx
    Input/output configurations are controlled directly on units or via Bolt 4K app

  • Color Correction

    No

Audio Processing

Jump to...
  • Audio Format

    48kHz 24-bit PCM

  • Audio Input

    Embedded SDI/HDMI Audio Input (2 Channel)

Physical

Jump to...
  • Construction

    Milled Aluminum(Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"x20 and M3 holes

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • USB Interface Functionality

    Upgrade via Micro-USB

Network

Jump to...
  • Antennas

    4 External 2dBi RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies:
    5.190 to 5.230 GHz and 5.755 to 5.795 GHz
    DFS Frequencies:
    5.270 to 5.670 GHz

  • Channel Bandwidth

    14x 40MHz wide channels

  • RF Channel Selection

    Auto, Manual
    Manual available for non-DFS Channels

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    19 dbm EIRP (4 external 2dBi antennas) (<80mW transmit power)

  • Range

    Up to 750', line of sight

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Battery

    No

  • Nominal Power Consumption

    20 Watts

Environmental

Jump to...
  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

General

Jump to...
  • Dimensions

    132 x 91 x 27mm (5.20 x 3.58 x 1.06")

  • Weight

    358g (12.63 oz)

  • UPC Code

    818264025499

About Teradek Bolt 4K 750 TX

Bolt 4K is a revolution in wireless video featuring the best reliability and image quality in the industry.

Real-Time 4K Wireless Video
Transmit uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay. Up to 750 ft. of range.

True HDR Color
Bolt 4K is compliant with the HLG, PQ and HDR-10 standards, making it an invaluable tool on set for HDR workflows.

Rock-Solid Reliability
Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments.

Universal Compatibility
Each transmitter can send video to up to 6 receivers. Compatible with any model in the Bolt 4K line.

Inputs/Outputs
1x 12G-SDI, 1x HDMI 2.0, 1x 12G-SDI loopout.

Camera Metadata
Send start / stop flags, timecode and other ancillary data over the wireless link. On the receiver side, upload and apply custom 3D LUTs to monitor each take with the look you're after.

Bolt App for iOS
Remotely pair units, configure settings and utilize all of Bolt 4K's features from any iOS smartphone or tablet. The Bolt App uses Bolt 4K's integrated Bluetooth to give you all of its settings in the palm of your hand.

What's in the box:

  • Teradek Bolt 4K 750 12G-SDI/HDMI Wireless Transmitter
  • 18 " HDMI Male Type A (Full) to HDMI Male Type A (Full) Cable
  • 18 " (Bit 118) 2-Pin Connector to PowerTap Cable
  • 3' USB Male Type A (Full) to USB Male Type B (Micro) Cable
  • 18 " SDI 12G BNC to BNC Cable
  • Large Universal Box
  • Foam
  • Insert for Large Universal Box
  • PSU 2-Pin Connector to 30W AC Adapter (Int) with 6' Cable
  • 4x Antenna 2dBi Wi-Fi 2.4/5.8GHz (Small Antenna)
  • Quickstart Guide
  • Teradek 1 Year Limited Warranty
