Teradek Bolt 4K MAX 12G-SDI/HDMI Wireless Deluxe Kit, Includes Transmitter, Receiver and Array 4K Panel Antenna, V-Mount
SKU: TE102120V
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
Questions & Answers
FAQ
What is included in the Bolt 4K MAX 12G-SDI/HDMI Wireless Deluxe Kit?
The Bolt 4K MAX Wireless Deluxe Kit includes a transmitter, receiver, an Array 4K Panel Antenna, and a V-mount for easy mounting on a camera or other equipment.
What is the transmission range of the Bolt 4K MAX?
The Bolt 4K MAX can transmit up to an impressive 5,000 ft. line of sight when using the next-generation Array 4K Panel Antenna.
What is the Fixed Frequency Mode in the Bolt 4K MAX?
The Fixed Frequency Mode in the Bolt 4K MAX locks onto your designated 5GHz channel, ensuring enhanced performance even in challenging RF environments.
What industries or applications is the Bolt 4K MAX suitable for?
The Bolt 4K MAX is ideal for use in film and television production, as well as for live events and concerts, or any application that requires high-quality, reliable wireless transmission of video and audio signals.
What makes the Bolt 4K MAX's antenna design unique?
The Bolt 4K MAX features a unique antenna design that ensures a clearer wireless signal and faster reconnection times over long distances.
Reviews about this item
Review Summary
Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.
TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.
Invest In Your Gear and Peace Of Mind!
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
Repair or Replacement
If we can’t fix it, we’ll replace it at no additional cost.
Accidental Damage
Protect your product from drops, spills, and more.
Peace of Mind
Enjoy your gear without fear. We have you covered!
Malfunction Protection
When regular use of your product over time results in mechanical or electrical failure.
Zero Deductible
We will never charge you a deductible after the purchase of a plan.
Customer-Focused Support
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
Teradek Wireless Deluxe Kit Specifications
Item Includes
Item Includes
Jump to...Additional Included Items
- 2x 18" 2-Pin PowerTap Cable
- 18" 2-Pin Conn. to 2-Pin Conn. Cable
- 3' USB Male Type A (Full)-USB Male Type B (Micro) Cable
- 2x 18" SDI 12G BNC to BNC Cable
- XL Case
- 6' PSU 2-Pin 30W AC Adapter Cable
- 9x Small Antenna
- 5" Wooden Camera-Ultra Arm Monitor Mount (1/4-20 to 3/8-16)
Transmitter: Video
Jump to...Video Inputs
1x 12G-SDI SMPTE 2082-1 standard / 75 Ohms (accepts 12G-SDI, 6G-SDI, or 3G-SDI)
1x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4)Video Outputs
1x Loop out 12G-SDI SMPTE 2082-1 standard / 75 Ohms
SDI Ancillary Data Support
Supports transmitting metadata, timecode and start/stop flags from most camera manufacturers
Color Sampling
SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Input Cross Conversion
Yes, HDMI to SDI
Delay Tx To Rx
<0.001sec
Transmitter: Supported Resolution
Jump to...Supported Resolutions
4Kp23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p50 576p59.94/60
480i(NTSC)/576i(PAL)
Transmitter: Video Processing
Jump to...Video Compression
Visually Lossless
Video Format Conversion Support
Connect an HD source to the Tx and get a 4K signal out of Rx
Connect a 4K source to the Tx, get HD resolution out of Rx
You can also mix & match from a single source:
4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx
Input/output configurations are controlled directly on units or via Bolt 4K appColor Correction
No
Transmitter: Audio Processing
Jump to...Audio Format
48kHz 24-bit PCM
Transmitter: Inputs
Jump to...Audio Input
Embedded SDI/HDMI Audio Input (2 Channel)
Transmitter: Interfaces
Jump to...Configuration Interfaces
OSD with Menu, Joystick Navigation
Switches
On/Off Switch
USB Interface Functionality
Upgrade via Micro-USB
Transmitter: Network
Jump to...Antennas
4x External 2dBi RP-SMA antennas (included)
Wireless
Non-DFS Frequencies:
5.190 - 5.230GHz and 5.755 - 5.795GHz
DFS Frequencies:
5.270 - 5.670GHzChannel Bandwidth
14x 40MHz wide channels
RF Channel Selection
Auto, Manual
Manual available for non-DFS ChannelsEncryption
AES-256, RSA-1024 key exchange
RF Power
19 dbm EIRP (4 external 2dBi antennas) (<80mW transmit power)
Range
Up to 1500', line of sight
Unicast Multicast
Can connect one Transmitter to up to 6 Receivers
Noise Rejection
Can coexist with Wi-Fi and 5GHz cordless phones
Can operate up to 6 sets in same location
Transmitter: Power
Jump to...Power Input
2-Pin Circular locking Connector 7-28V DC
Battery
No
Nominal Power Consumption
20 Watts
Receiver: Video
Jump to...Video Outputs
2x 12G-SDI SMPTE 2082-1 standard / 75 Ohms (accepts 12G-SDI, 6G-SDI, or 3G-SDI)
1x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4)SDI Ancillary Data Support
Supports transmitting metadata, timecode and start/stop flags from most camera manufacturers
Color Sampling
SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Input Cross Conversion
Yes, HDMI to SDI
Delay Tx To Rx
<0.001sec
Receiver: Supported Resolution
Jump to...Supported Resolutions
4Kp23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p50 576p59.94/60
480i(NTSC)/576i(PAL)
Receiver: Video Processing
Jump to...Video Compression
Visually Lossless
Video Format Conversion Support
Connect an HD source to the Tx and get a 4K signal out of Rx
Connect a 4K source to the Tx, get HD resolution out of Rx
You can also mix & match from a single source:
4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx
Input/output configurations are controlled directly on units or via Bolt 4K appColor Correction
17x17x17 3D LUT (supports 10-bit color)
Receiver: Audio Processing
Jump to...Audio Format
48kHz 24-bit PCM
Receiver: Outputs
Jump to...Audio Output
Embedded SDI/HDMI Audio Output (2 Channel)
Receiver: Interfaces
Jump to...Configuration Interfaces
OSD with Menu, Joystick Navigation
Switches
On/Off Switch
USB Interface Functionality
Upgrade via Micro-USB
Receiver: Network
Jump to...Antennas
5 External 2 dBi antennas (included) or optional Array Panel Antenna
Wireless
Non-DFS Frequencies:
5.190 - 5.230GHz and 5.755 - 5.795GHz
DFS Frequencies:
5.270 - 5.670GHzChannel Bandwidth
14x 40MHz wide channels
RF Channel Selection
Auto, Manual
Manual available for non-DFS ChannelsEncryption
AES-256, RSA-1024 key exchange
RF Power
17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)
Range
Up to 1500', line of sight
Unicast Multicast
Can connect one Transmitter to up to 6 Receivers
Noise Rejection
Can coexist with Wi-Fi and 5GHz cordless phones
Can operate up to 6 sets in same location
Receiver: Power
Jump to...Power Input
2-Pin Circular locking Connector 6-28 VDC
Battery
No
Nominal Power Consumption
18 Watts
General
Jump to...Operating Temperature
0 to 40 deg. C (32 to 104 deg. F)
Construction
Milled Aluminum(Chassis) and regulation-compliant PCB
Mount
V-Mount
Dimensions
Transmitter: 132 x 91 x 27mm (5.20 x 3.58 x 1.06")
Receiver: 112 x 139 x 27mm (4.41 x 5.47 x 1.06")Weight
Bolt 4K Tx without antennas (no battery plates): 360g (12.70 oz)
Bolt 4K Tx with 4x antennas (no battery plates): 408g (14.39 oz)
Bolt 4K Rx without antennas (no battery plates): 440g (15.52 oz)
Bolt 4K Rx with 5x antennas (no battery plates): 496g (17.50oz)
V-Mount battery plate set (male+female): 220g (7.76 oz)
Other
Jump to...UPC Code
818264025826
About Teradek Wireless Deluxe Kit
Bolt 4K MAX is the most reliable, highest performance wireless video system we've ever created. Featuring exclusive technology found only in this model, the MAX is designed to be your mission critical wireless workhorse. Transmit up to an 5,000 ft. line of sight with the next-generation Array 4K Panel Antenna. Fixed Frequency Mode locks onto your designated 5GHz channel for enhanced performance in challenging RF environments. A unique antenna design provides a clearer wireless signal with faster reconnection times over long distances.
What's in the box:
- Teradek Bolt 4K MAX 12G-SDI/HDMI Wireless Transmitter
- Bolt 4K MAX 12G-SDI/HDMI Wireless Receiver

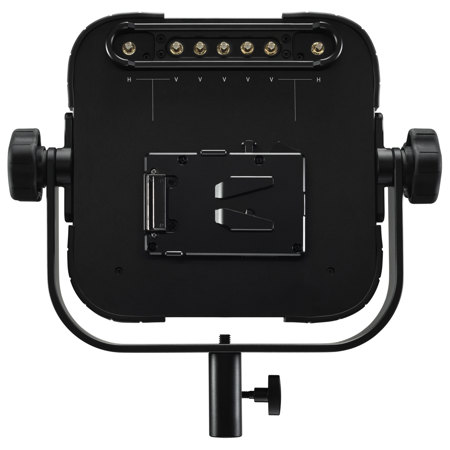

- Antenna Array with V-Mount
- 4x Bolt 4K Wire Cover Plate
- Bolt 4K TX Mounting Bracket
- 3/8 " Lightstand Adapter
- Hot Shoe Adapter
- 4x Flathead Phillips Screw
- 2x Screw Socket Cap A S (M3 x 16mm)
- 2.5mm Hex L Key
- 2x 18 " HDMI Male Type A (Full)-HDMI Male Type A (Full) Cable
- Quick Start Guide
- Teradek 1 Year Limited Warranty
- (See Specification for More Included Items)
