1x HDMI 1.4b Type-A receptacle
Supports reading metadata, timecode, and start/stop flags from most camera manufacturers
SDI: YCbCr 4:2:2, 10-bit
HDMI: RGB 4:4:4, 8-bit
<0.001sec
4Kp23.98/24/25/29.97/30
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p50 576p59.94/60
480i(NTSC)/576i(PAL)
Visually Lossless
None
48kHz 24-bit PCM
Embedded HDMI Audio Input (2 Channel)
SmallHD Monitor UI
Bolt App
SmallHD Monitor UI
2x 5pin Locking Connector CCU (Host)
Via SmallHD Monitor
2x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
Non-DFS Frequencies: 5.190 - 5.230GHz, 5.755 - 5.795GHz, 5.945 - 6.425GHz
DFS Frequencies: 5.270 - 5.670GHz
Auto, Manual
AES-256, RSA-1024 key exchange
23 dbm EIRP
Up to 750' (228.6m), line of sight
Can coexist with Wi-Fi and 5GHz cordless phones
Can operate up to 6 sets in same location
Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
2-Pin Circular locking Connector 6-18 VDC
7 Watts
32 to 104 Degree F (0 to 40 Degree C)
Optional, not included
Lithium-ion
Non-universal
1
Milled Aluminum (Chassis) and regulation-compliant PCB
SmallHD 7" (17.78cm) Monitor
2.36 x 4.05 x 1.29" (60 x 103 x 33mm)
7.3 oz (206g)
818264028445

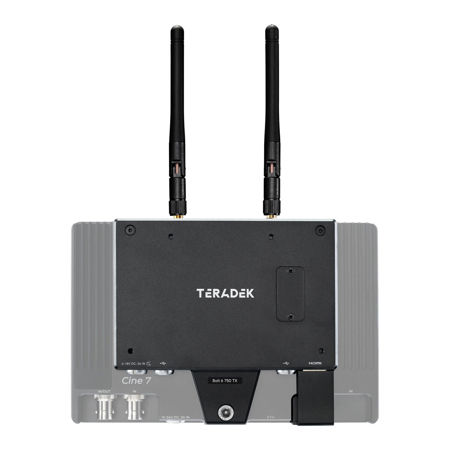

With the Teradek Bolt 6 750 Transmitter Monitor Module, enhance your cinematic journey by optimizing your video transmission and camera control. This high-quality, durable module is specifically designed for SmallHD Smart 7 Monitors, offering an innovative solution for seamless 4K transmission over an extended range of up to 750 feet.
Experience the freedom of wirelessly transmitting high-definition 4K30 HDR videos directly to any Bolt 4K receiver. This advanced transmitter module is compatible with SmallHD Cine 7, Indie 7, and 702 Touch monitors, ensuring reliable, interference-free transmission over the 5 GHz band with zero delay.
The Bolt 6 750 Transmitter Monitor Module revolutionizes camera control. By connecting to an optional Bolt 4K RX monitor module with camera control software, the I/O signal allows for intuitive, instant control of supported cameras, directly from your touchscreen monitor.
Stay connected with the desktop Bolt Manager software and the Bolt app available for iOS or Android. These software tools offer features like spectrum analyzers and channel selection, enhancing your connection experience. Bluetooth connectivity ensures easy pairing and protection.
The module's capability to input up to 4K30 video from the camera ensures a high-resolution preview. With HDMI block connection, you'll benefit from 10-bit 4:2:2 HDR support, delivering unmatched video quality. Security is also prioritized, with AES-256 encryption and RSA 1024 key pairing ensuring your content remains secure.
The Bolt 6 employs the newer 6GHz wireless frequency, providing a less congested wireless setting and minimizing interference. While it retains the capability to operate in 5GHz Mode for compatibility, using the 6GHz Mode with the Bolt 6 ensures rapid connections and enhanced overall wireless performance.
The Teradek Bolt 6 750 Transmitter Monitor Module is versatile and compatible with a range of cameras, including ARRI, and future options for RED KOMODO and Sony VENICE. It can transmit simultaneously to up to six Bolt 4K or Bolt 6 series receivers and is cross-compatible with all Bolt 4K and 4K LT series receivers and the Bolt 4K RX monitor module.
Designed to mount effortlessly on the back of SmallHD monitors, this advanced module is a game-changer in the world of video transmission and camera control. Elevate your cinematic endeavors with the Teradek Bolt 6 750 Transmitter Monitor Module, the gear designed to set your content apart.
