Teradek Bolt 4K LT MAX 3000 3G-SDI/HDMI Wireless Transmitter and Receiver Deluxe Kit, 3000' Range, Gold-Mount
SKU: TE102220G
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
About Teradek Bolt 4K LT MAX

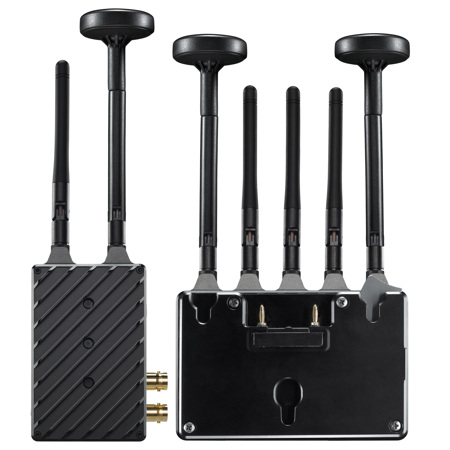

The Bolt 4K LT MAX TX/RX (Deluxe Set, Gold Mount) is a real time wireless video transmission system that supports video signals up to 4Kp30 via 4Kp30 via HDMI, and 1080p60 via SDI, at a distance of up to 5000+ ft line-of-sight, with less than 1ms of delay. Key features include increased range with lighter weight, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and unlimited receivers using broadcast mode. These devices are cross-compatible with the entire Bolt 4K Family. This deluxe set includes the Bolt 4K LT MAX TX, the Gold Mount version of the Bolt 4K LT MAX RX, a carrying case and other essentials you need to get started.
Zero-Delay 4K Wireless Video
Transmit and receive uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay. Up to and beyond 5000 + feet of range.
True HDR Color
Supports 10-Bit 4:2:2
Rock-Solid Reliability
Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments.
Universal Compatibility
Send & receive signal to any Bolt 4K series RX/TX device for expanding workflow requirements.
Broadcast Mode
Supports Broadcast Mode which means you can connect unlimited receivers simultaneously. Broadcast mode also can increase your wireless video range to 5000 feet and beyond with the next-generation Array 4K Panel Antenna.
Transmitter:
• Input: 1x HDMI 2.0 (up to 4Kp30), 1x 3G-SDI (up to 1080p60)
• Output: 1x 3G-SDI (up to 1080p60)
Receiver:
• Output: 1x HDMI 2.0 (up to 4Kp30), 2x 3G-SDI (up to 1080p60)
Battery Plates
Gold Mount battery plate with pass-through power.
Camera Metadata
Send start / stop flags, timecode, and other ancillary data over the wireless link. On the receiver side, upload and apply custom 3D LUTs to monitor each take with the look you're after.
Bolt App for iOS and Android
Remotely pair units, configure settings, and utilize all of Bolt 4K's features from any iOS smartphone or tablet. The Bolt App uses Bolt 4K's integrated Bluetooth to give you all of its settings in the palm of your hand.
Teradek Bolt 4K LT MAX Features
- Video: Up to 4Kp30
- Range: 3000' (914.4m) (Standard Mode) up to 5000' (1524m) (Broadcast Mode)
- Inputs: 3G-SDI, HDMI 2.0
- Outputs: 3G-SDI, HDMI 2.0
- Multicast: Unlimited with Broadcast Mode
- Compatibility: Bolt 4K Family
