Closeout

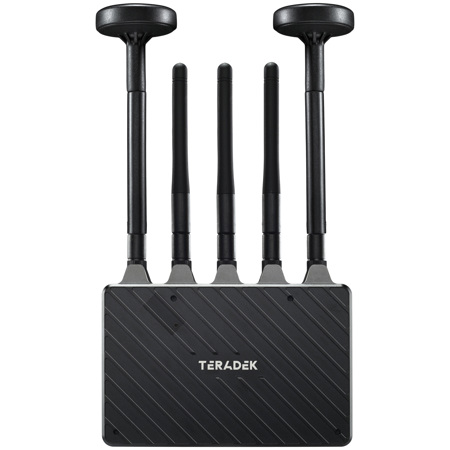

Teradek Bolt 4K LT MAX 3000 3G-SDI/HDMI Wireless Receiver, 3000' Range

SKU: TE102222 MFR: 10-2222
Earn VIP Reward Points

Key Features

  • Experience stable signal transmission with this Teradek wireless receiver.
  • Achieve high resolution video up to 3000' with low latency, perfect for live broadcasts.
  • Enjoy easy setup and a durable build for reliable, long-term wireless video.
  • This wireless receiver supports both 3G-SDI and HDMI for flexible connectivity.
  • Streamline your workflow with long range and seamless integration using this receiver.
  • Get superior performance with a stable signal, ideal for professional video applications.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek Bolt 4K LT MAX Specifications

Video
  • Video Outputs

    3G-SDI SMPTE 424M standard/75 Ohm (BNC x 1)
    HDMI 1.4b Type-A receptacle

  • Sdi Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit

  • Delay Tx To Rx

    <0.001sec

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30(HDMI only)
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Format Conversion Support

    Connect an HD source to the Tx and get a 4K signal out of Rx
    Connect a 4K source to the Tx, get HD resolution out of Rx
    You can also mix & match from a single source:
    4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx
    Input/output configurations are controlled directly on units or via Bolt 4K app

  • Color Correction

    None

Audio Processing

Jump to...
  • Audio Format

    48kHz 24-bit PCM

Outputs

Jump to...
  • Audio Output

    Embedded SDI/HDMI Audio Input (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Mobile App

    Bolt App

  • Desktop App

    Bolt Manager application for OSX & Windows

  • Usb Interface Functionality

    Upgrade via Micro-USB

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    5x External 2dBi antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz and 5.755 - 5.795 GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • Channel Bandwidth

    13x 40MHz wide channels

  • Rf Channel Selection

    Auto, Manual
    Manual available for non-DFS Channels

  • Encryption

    AES-256, RSA-1024 key exchange

  • Rf Power

    17 dbm EIRP (1x external 2dBi antenna; <51mW transmit power)

  • Range

    Up to 3000' (914.4m) line of sight (5000' (1524m) with optional Bolt 4K Array Antenna)

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can coexist with WiFi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Battery

    None, optional Gold or V mount battery plate

  • Nominal Power Consumption

    11 Watts

Environmental

Jump to...
  • Operating Temperature

    32 Degree F to +104 Degree F (0 Degree C to +40 Degree C)

Physical

Jump to...
  • Material

    Milled Aluminum(Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"x20 and M3 holes

  • Dimensions

    4.8 x 3.7 x 1" (122 x 94 x 27mm)

  • Weight

    10.3 oz (292g)

  • UPC Code

    818264026786

About Teradek Bolt 4K LT MAX

If you're seeking a high-performance wireless video receiver, the Bolt 4K LT MAX RX is the perfect solution. This advanced device supports real-time video signals up to 4Kp30 via HDMI and 1080p60 via SDI, delivering an impressive range of up to 5000+ feet line-of-sight with less than 1ms delay.

One of the key features of this wireless receiver is its enhanced range and faster reconnection times, making it a reliable choice for professional use. It also offers easy setup via a dedicated Bluetooth App, available for both iOS and Android platforms.

The Bolt 4K LT MAX RX is not just a standalone device; it's part of the larger Bolt 4K family, offering cross-compatibility with all Bolt 4K series RX devices. This allows for seamless expansion of your workflow requirements.

Experience real-time 4K wireless video with this device, capable of receiving uncompressed video in 1080p and 2160p at 60FPS with minimal delay. It supports true HDR color with 10-Bit 4:2:2, ensuring high-quality visuals.

The Bolt 4K LT MAX RX stands out for its rock-solid reliability, offering 8x the wireless performance of previous Bolt generations. This ensures that your video is delivered flawlessly, even in challenging RF environments.

The device also supports Broadcast Mode, allowing you to connect unlimited receivers simultaneously. This feature can significantly increase your wireless video range to 5000 feet and beyond when used with the next-generation Array 4K Panel Antenna.

The Bolt 4K LT MAX RX is equipped with multiple outputs, including 1x HDMI 2.0 (up to 4Kp30) and 2x 3G-SDI (up to 1080p60). It also supports camera metadata, allowing you to send start/stop flags, timecode, and other ancillary data over the wireless link.

On the receiver side, you can upload and apply custom 3D LUTs to monitor each take with the desired look. All these features can be easily managed from the Bolt App for iOS, which uses the Bolt 4K's integrated Bluetooth to give you full control over its settings right in the palm of your hand.

Teradek Bolt 4K LT MAX Features

  • Video: Up to 4Kp30
  • Range: 3000' (914.4m) (Standard Mode) up to 5000' (1524m) (Broadcast Mode)
  • Outputs: HDMI 2.0 (up to 4Kp30), 2x 3G-SDI (up to 1080p60)
  • Compatibility: Bolt 4K Family

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience stable signal transmission with this Teradek wireless receiver.
  • Achieve high resolution video up to 3000' with low latency, perfect for live broadcasts.
  • Enjoy easy setup and a durable build for reliable, long-term wireless video.
  • This wireless receiver supports both 3G-SDI and HDMI for flexible connectivity.
  • Streamline your workflow with long range and seamless integration using this receiver.
  • Get superior performance with a stable signal, ideal for professional video applications.

What's in the box:

  • Teradek Bolt 4K LT MAX 3000 3G-SDI/HDMI Wireless Receiver
  • Lightstand Adapter 1/4"-20
  • Hot Shoe Adapter
  • 2-Pin Lemo to P-Tap Cable (18")
  • USB Male Type A to USB Male Type B Cable (3')
  • Ultra Thin HDMI Male Type A to HDMI Male Type A Cable (18")
  • SDI BNC to SDI BNC Cable (10")
  • 18 Watt AC Adapter Cable (6' )(2-Pin Connector)
  • 5x Antenna 2dBi V4.9-7.3GHz RP-SMA
  • 2x Antenna 2dBi H Mushroom V4.9-7.3Ghz RP-SMA
  • Teradek 1 Year Limited Warranty
