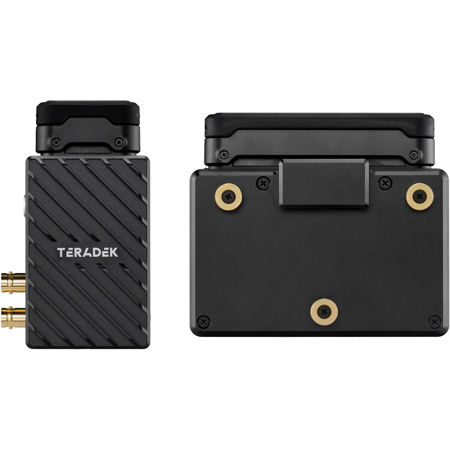

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter and Receiver Kit with Internal Antennas, Gold Mount, 750' Range
SKU: TE102260GII MFR: 10-2260-GII
Earn VIP Reward Points
Key Features
- Experience seamless wireless video with the Teradek Bolt 6 LT 750's long transmission range.
- Enjoy superior image quality with visually lossless compression for professional results.
- Achieve reliable connection with AES-256 encryption, ensuring secure wireless video feeds.
- The Bolt 6 LT offers low latency, keeping your live streams in sync for viewers.
- Easily monitor & manage your broadcast equipment via the intuitive Bolt Manager application.
- Streamline your workflow using versatile mounting options for transmitters & receivers.
Ships from Manufacturer?
Free Shipping
See Options
Qty
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$129.99
3 Year
$179.99
4 Year
$215.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Teradek Bolt 6 LT w/Int Antenna
While the Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter and Receiver Kit with Internal Antennas and Gold Mount is a high-performance video transmission system, it's more than just that. It's a versatile solution that supports high-definition video up to 1080p60 10-bit 422 HDR over 3G-SDI, and even 4K30 over HDMI, making it ideal for professional videography and broadcasting needs.
Leveraging Teradek's patented Zero-Delay silicon chip technology, the Bolt 6 LT ensures seamless wireless video transmission over 5GHz and 6GHz radio frequencies. This advanced technology allows for real-time, uninterrupted video streaming, a crucial feature for live events and professional film production.
The Bolt 6 LT offers three distinct line-of-sight options: 750 ft., 1500 ft., and the MAX model. The MAX model can be configured for an impressive range of up to 5,000 ft when paired with the optional Array Antenna and Broadcast Mode. This extended range capability makes it a suitable choice for large-scale productions and outdoor events.
In addition, the MAX model's Broadcast Mode allows for an increase in the number of Receivers from 6 per Transmitter to unlimited per Transmitter, providing scalability for larger broadcasting setups. The 750 model comes with V (vertical) antennas, while the 1500 and MAX models include both V antennas and H (horizontal) antennas. These H antennas are specifically designed to maximize signal robustness in challenging RF environments, ensuring consistent, high-quality video transmission.
For those seeking a more compact and durable solution, the 750 model of Bolt 6 LT can be optionally equipped with permanent internal antennas. This feature allows for reliable zero-delay transmission, even in a smaller form factor.
The kit options for the Bolt 6 LT include the Transmitter and Receiver as standalone units or within a Deluxe kit. The Deluxe kit also includes Gold or V-Mount Battery plates, offering flexibility for different power requirements.
In essence, the Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter and Receiver Kit with Internal Antennas and Gold Mount is a comprehensive solution for wireless video transmission, offering flexibility, reliability, and high-quality performance.
Teradek Bolt 6 LT w/Int Antenna Features
- Lossless HD video transmission up to 750' line of sight
- Bright OLED displays for clear readouts
- Wireless reception of UHD 4K30 video, 10-bit 4:2:2 HDR support
- Video inputs via 3G-SDI or HDMI, with loop outputs
- Receiver outputs through 3G-SDI and HDMI
- Compatibility with Bolt 4K models over the 5 GHz band
- Convenient carry case for easy portability and storage
- SDI Eye Pattern Tool ensures cable reliability
- Enhanced "long range" mode for optimal transmission
- Compact and lightweight design for effortless setup
- Ability to transmit to up to six Bolt 4K or Bolt 6 receivers
- Secure AES-256 encryption
- Wireless control via iOS/Android app with a spectrum analyzer and remote configuration
- Practically instant wireless video with zero-delay (<0.001sec)
Warranty Information
This product has a limited warranty of 12 months.
