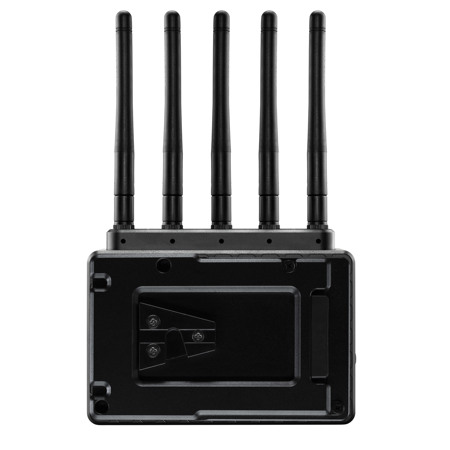

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver, V-Mount, 750' Range

SKU: TE102262V MFR: 10-2262-V
Earn VIP Reward Points

Key Features

  • Experience reliable connection with this Teradek wireless receiver, designed for seamless video transmission.
  • Achieve high resolution video output with 3G-SDI & HDMI, ensuring top-notch clarity for your broadcast needs.
  • Enjoy low latency streaming, perfect for live events or real-time monitoring with this wireless video system.
  • Set up easily with multiple mounting options; integrate this receiver into any production environment quickly.
  • Secure your transmission using AES-256 encryption, keeping your content private and protected from interference.
  • Extend your reach up to 750' with this wireless receiver, ideal for larger sets or remote shooting locations.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek 10-2262 Specifications

Video
  • Video Outputs

    3G-SDI SMPTE 424M standard / 75 Ohm (1x BNC)
    1x HDMI 1.4b Type-A receptacle

  • SDI Ancillary Data Support

    Supports reading metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit

  • Output Video Scaling

    No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30 (HDMI only)
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p59.94 576p50
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Test Pattern Generator Support

    Yes

  • Spectrum Analyzer

    Yes

  • Color Correction

    17 x 17 x 17 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

Outputs

Jump to...
  • Audio Output

    Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Mobile App

    Bolt App

  • Desktop App

    Bolt Manager application for OSX & Windows

  • USB Interface Functionality

    Upgrade via Micro-USB

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    5x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425 GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    21 dbm EIRP

  • Range

    Up to 750' (228.6m), line of sight

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Interoperability

    Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Nominal Power Consumption

    11 Watts

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"-20 and 3/8"-16 holes

  • Dimensions

    4.80 x 3.70 x 1.06" (122 x 94 x 27mm)

  • Weight

    10.3 oz (292g)

  • UPC Code

    818264028292

About Teradek 10-2262

Just imagine the possibilities with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver, a cutting-edge, real-time wireless video receiver that supports 4K video. This advanced receiver is powered by Teradek's patented Zero-Delay technology, ensuring you receive color-accurate, True-HDR videos in under 0.001 seconds.

Designed for a variety of production needs, this high-quality receiver offers a remarkable range of up to 750 feet. It boasts fast reconnection times and an intuitive setup process via the Bolt Manager App, available for both iOS and Android.

The Bolt 6 LT 750 stands out in the market with its use of the 6GHz band, providing users with superior image quality and reduced interference. This innovative feature offers 12 new channels for frequency adjustments, making it an ideal choice for use in high-traffic areas.

This reliable receiver is not just about receiving signals; it also passes metadata, timecode, and start/stop flags from most camera manufacturers. It offers new tools for high-end users, including better visibility over connections and signals, adding confidence to your workflow, regardless of the environment.

The Bolt 6 LT 750 also introduces the new Long Range Mode, offering enhanced video quality at longer distances. For seamless and wireless camera-control setup, a 5-pin USB adapter can be used in conjunction with SmallHD Smart Monitors.

The Bolt 6 LT 750 is cross-compatible with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules. This compatibility gives you the flexibility to expand your workflow requirements as needed.

Equipped with both 4K HDMI and 1080p SDI input and outputs, the Bolt 6 LT 750 caters to a wide range of production needs. If your production requires HDMI only, you can opt for the Bolt 6 LT HDMI model.

Unlike many devices that use the crowded 5GHz frequency, the Bolt 6 LT 750 utilizes the newly opened 6GHz wireless frequency for a dramatically quieter wireless environment. This ensures faster connections and less interference for a superior wireless experience. However, it can still be set up in 5GHz Mode for backwards compatibility.

In conclusion, the Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver is a durable, innovative, and reliable choice for professionals seeking advanced video equipment.

Teradek 10-2262 Features

  • Zero-Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency Access
  • Bolt 4K Cross-Compatibility
  • Improved Long Range Mode
  • Outputs: HDMI, 3G-SDI

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience reliable connection with this Teradek wireless receiver, designed for seamless video transmission.
  • Achieve high resolution video output with 3G-SDI & HDMI, ensuring top-notch clarity for your broadcast needs.
  • Enjoy low latency streaming, perfect for live events or real-time monitoring with this wireless video system.
  • Set up easily with multiple mounting options; integrate this receiver into any production environment quickly.
  • Secure your transmission using AES-256 encryption, keeping your content private and protected from interference.
  • Extend your reach up to 750' with this wireless receiver, ideal for larger sets or remote shooting locations.

What's in the box:

  • Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver (V-Mount)
  • 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • 18" 2-Pin Connector to PowerTap Cable (Bit 118)
  • 10" 3G-SDI BNC to BNC Cable
  • 6' PSU 2-Pin Connector to 18W AC Adapter (Int) Cable
  • 3' USB Male Type-A (Full) to USB Male Type-B (Micro) Cable
  • 2x Antenna
  • Teradek 1 Year Limited Warranty
