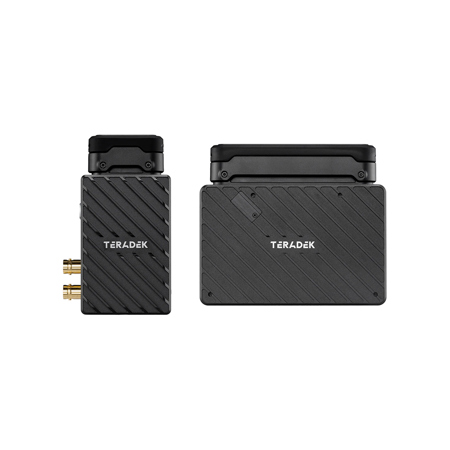

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas, 750' Range

SKU: TE102263I MFR: 10-2263-I
Earn VIP Reward Points

Key Features

  • Experience reliable wireless video with the Bolt 6 LT, transmitting up to 750 feet.
  • Enjoy low latency, visually lossless video for seamless, real-time monitoring on set.
  • Stream high-quality 1080p video via 3G-SDI or HDMI with this versatile wireless transmitter.
  • The Bolt 6 LT offers AES-256 encryption for secure wireless broadcast of your video content.
  • Easily mount this compact transmitter with multiple 1/4"-20 and M3 mounting options.
  • Connect up to 6 receivers for multicasting, expanding your wireless video workflow.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-07-13T16:26:04

Rated 1 out of 5

Teradek now doesn't include a hard case

I am astonished that Teradek no longer includes a hard case even though I just paid almost $3k for it. That is just crazy.

KEITH G.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek Bolt 6 LT w/Int Antenna Specifications

Video
  • Video Inputs

    3G-SDI SMPTE 424M standard / 75 Ohm (BNC x 1)
    1x HDMI 1.4b Type-A receptacle

  • Video Outputs

    3G-SDI SMPTE 424M standard / 75 Ohm (BNC x 1)

  • Sdi Ancillary Data Support

    Supports reading metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit

  • Delay Tx To Rx

    <0.001sec

  • Input Cross Conversion

    Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30 (HDMI only)
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Color Correction

    None

Audio Processing

Jump to...
  • Audio Compression

    48 kHz 24-bit PCM

  • Audio Input

    Embedded SDI/HDMI Audio Input (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Mobile App

    Bolt App

  • Desktop App

    Bolt Manager application for OSX & Windows

  • USB Interface Functionality

    Upgrade via Micro-USB

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    4x Internal 2dBi Antennas

  • Wireless

    DFS Frequencies: 5.270 - 5.670 GHz Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, and 5.945 - 6.425GHz

  • Rf Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • Rf Power

    23 dbm EIRP

  • Range

    Up to 750' (228m) , line of sight

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)

  • Interoperability Compatibility

    Can coexist with WiFi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Battery

    None, optional Sony/Canon dual battery plate

  • Nominal Power Consumption

    9 Watts

Environmental

Jump to...
  • Operating Temperature

    0-140 degree F (0-40 degree C)

Battery

Jump to...
  • Battery Info

    Optional, Not Included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Construction

    Milled Aluminum(Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"x20 and M3 holes

  • Dimensions

    2.8 x 4.7 x 1.3" (72 x 119.8 x 33.1mm)

  • Weight

    7.5 oz (212g)

  • UPC Code

    810156140365

About Teradek Bolt 6 LT w/Int Antenna

A cutting-edge solution for high-quality video transmission, the Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas is designed to deliver up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. This advanced wireless video transmitter utilizes Teradek's patented Zero-Delay silicon chip technology, ensuring seamless video transmission over 5GHz and 6GHz radio frequencies.

The Bolt 6 LT TX stands out with its three line-of-sight options, offering a range of 750 ft, 1500 ft, and up to a staggering 5,000 ft with the MAX model when paired with the optional Array Antenna and Broadcast Mode. This flexibility makes it an ideal choice for diverse broadcasting needs.

Cross-compatibility with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules, allows for easy expansion of your workflow requirements. This feature enables you to link up to 6 receivers to one transmitter, or even unlimited receivers when used in Broadcast Mode, available on MAX models.

The 750 model of the Bolt 6 LT TX comes equipped with V (vertical) Antennas, while the 1500 and MAX models include both V Antennas and H (horizontal) antennas. These H Antennas are specifically designed to maximize signal robustness in challenging RF environments.

For those seeking a more compact and durable form factor, the 750 model of the Bolt 6 LT TX can optionally include permanent internal antennas, ensuring reliable zero-delay transmission without compromising on size or durability. This makes the Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas a versatile and reliable choice for all your wireless video transmission needs.

Teradek Bolt 6 LT w/Int Antenna Features

  • Zero-Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency Access
  • Bolt 4K Cross-Compatibility
  • Improved Long Range Mode
  • Outputs: HDMI, 3G-SDI

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience reliable wireless video with the Bolt 6 LT, transmitting up to 750 feet.
  • Enjoy low latency, visually lossless video for seamless, real-time monitoring on set.
  • Stream high-quality 1080p video via 3G-SDI or HDMI with this versatile wireless transmitter.
  • The Bolt 6 LT offers AES-256 encryption for secure wireless broadcast of your video content.
  • Easily mount this compact transmitter with multiple 1/4"-20 and M3 mounting options.
  • Connect up to 6 receivers for multicasting, expanding your wireless video workflow.

What's in the box:

  • Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas
  • 18" 2-Pin to P-Tap Cable
  • 6' 2-Pin to AC Adapter 18W
  • 18" Ultra Thin HDMI Male to Male Cable
  • 10" SDI Cable
  • 3.2' USB-C 2.0 Male to Male Cable
  • Teradek 1 Year Limited Warranty
