Questions & Answers

FAQ

What is the range of the Bolt 6 LT 750 HDMI Wireless Transmitter and Receiver Kit?

The Bolt 6 LT 750 HDMI Wireless Transmitter and Receiver Kit offers a range of up to 750 feet.

What is the function of the Bolt Manager App?

The Bolt Manager App allows for easy setup and management of the Bolt 6 LT 750 HDMI Wireless Transmitter and Receiver Kit. It is available for both iOS and Android devices.

Is the Bolt 6 LT 750 HDMI Wireless Transmitter and Receiver Kit compatible with other Bolt 4K series devices?

Yes, the Bolt 6 LT is cross-compatible with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules.

What wireless frequency does the Bolt 6 LT 750 HDMI Wireless Transmitter and Receiver Kit use?

The Bolt 6 LT primarily utilizes the 6GHz wireless frequency for reduced interference and faster connections. However, it can also be set up in 5GHz Mode for backwards compatibility.

What is the Long Range Mode in the Bolt 6 LT 750 HDMI Wireless Transmitter and Receiver Kit?

The Long Range Mode is a feature that enhances video quality over greater distances, offering more versatility in shooting scenarios.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Teradek Bolt 6 LT Specifications

Video
  • Video Inputs

    Transmitter: 1x HDMI 1.4b Type-A receptacle

  • Video Outputs

    1x HDMI 1.4b Type-A receptacle

  • Color Sampling

    HDMI: RGB/YCrCb 4:4:4, 8/10-bit; YCrCb 4:2:2

  • Delay Tx to Rx

    <0.001sec

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p59.94/60 576p50

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Test Pattern Generator Support

    None

  • Spectrum Analyzer

    Yes

  • Color Correction

    None

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

  • Audio Input

    Embedded HDMI Audio Input (2 Channel)

Outputs

Jump to...
  • Audio Output

    Receiver: Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Mobile App

    Bolt App

  • Desktop App

    Bolt Manager application for OSX & Windows

  • USB Interface Functionality

    Upgrade via USB-C
    5-Pin Locking Connector CCU

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    Transmitter: 2x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    Receiver: 5x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425 GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    Transmitter: 23 dbm EIRP
    Receiver: 21 dbm EIRP

  • Range

    Up to 750' (228.6m), line of sight

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Interoperability

    Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Nominal Power Consumption

    Transmitter: 7 Watts
    Receiver: 6 Watts

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"-20 and 3/8"-16 holes

  • Dimensions

    Transmitter: 2.36 x 4.05 x 1.30" (60 x 103 x 33mm)
    Receiver: 4.80 x 3.70 x 1.06" (122 x 94 x 27mm)

  • Weight

    Transmitter: 7.3 oz (206g)
    Receiver: 10.3 oz (292g)

  • UPC Code

    818264028827

About Teradek Bolt 6 LT

Find unparalleled video transmission quality with the Bolt 6 LT 750 HDMI Wireless Transmitter and Receiver Kit, Gold Mount. This state-of-the-art system offers real-time wireless video transmission, supporting 4K video with Teradek's patented Zero-Delay technology. Experience less interference with the innovative use of the 6GHz wireless frequency, ensuring a smoother, more reliable connection.

The Bolt 6 LT is designed to transmit and receive color-accurate, True-HDR videos in under 0.001 seconds, thanks to the included Bolt 6 LT video Transmitter and Receiver. With a range of 750 ft, this system ensures fast reconnection times and stable connectivity, even in challenging environments.

Setting up the Bolt 6 LT is a breeze with the intuitive Bolt Manager App, available for iOS and Android. This system not only offers superior image quality but also provides more options for frequency adjustments with 12 new channels, especially useful in high-traffic areas.

The Bolt 6 LT HDMI Set is more than just a transmitter and receiver. It can pass metadata, timecode, and start/stop flags from most camera manufacturers, making it a versatile tool for high-end users. It also offers enhanced visibility over connections and signals, adding confidence to your workflow.

Take advantage of the new Long Range Mode for improved video quality at longer distances. For added convenience, a 5-pin USB adapter, sold separately, enables wireless camera-control setup when using SmallHD Smart Monitors.

The compact design of the included Transmitter and Receiver is cross-compatible with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules. This compatibility allows you to expand your workflow requirements and link up to 6 receivers to one transmitter.

Unlike many devices that use the crowded 5GHz frequency, the Bolt 6 LT utilizes the newly opened 6GHz wireless frequency for a quieter wireless environment and faster connections. However, it can still be set up in 5GHz Mode for backwards compatibility. With the Bolt 6 LT 750 HDMI Wireless Transmitter and Receiver Kit, Gold Mount, you're investing in a better wireless experience.

Teradek Bolt 6 LT Features

  • Zero-Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency Access
  • Bolt 4K Cross-Compatibility
  • Improved Long Range Mode
  • Inputs: HDMI (Transmitter Only)
  • Outputs: HDMI

Key Features

  • Zero-Delay 4K video transmission with patented technology for real-time wireless streaming
  • Extended 750' range with True-HDR video capability for color-accurate, high-quality footage
  • Utilizes 6GHz frequency for reduced interference and stable connections in congested areas
  • Easy setup and management with the Bolt Manager App for iOS and Android devices
  • Cross-compatible with Bolt 4K Series for expanded workflow options and multi-receiver linking
  • New Long Range Mode enhances video quality over greater distances for versatile shooting scenarios

What's in the box:

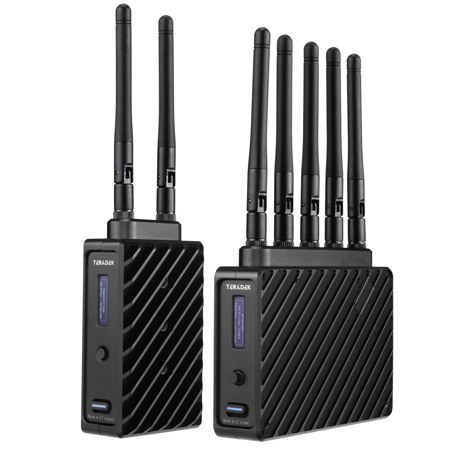

  • Bolt 6 LT 750 HDMI Wireless Transmitter (Gold Mount)
  • Bolt 6 LT 750 HDMI Wireless Receiver (Gold Mount)
  • 2x 18" 2-Pin Connector to PowerTap Cable (Bit 118)
  • 6' PSU 2-Pin Connector to 18W AC Adapter (Int) Cable
  • 2x 3.28' USB 2.0 Type-A Male to USB Type-C Male Cable
  • 2x Bolt 4K LT Receiver Battery Cover
  • Hot Shoe Adapter
  • 2x Phillips Flat Head Screw
  • 1/4"-20 Lightstand Adapter
  • Large Case
  • 7x Antenna
  • Teradek 1 Year Limited Warranty
