Teradek Bolt 6 LT Specifications

Video
  • Video Inputs

    Transmitter: 1x HDMI 1.4b Type-A receptacle

  • Video Outputs

    1x HDMI 1.4b Type-A receptacle

  • Color Sampling

    HDMI: RGB/YCrCb 4:4:4, 8/10-bit; YCrCb 4:2:2

  • Delay Tx to Rx

    <0.001sec

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p59.94/60 576p50

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Test Pattern Generator Support

    None

  • Spectrum Analyzer

    Yes

  • Color Correction

    None

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

  • Audio Input

    Embedded HDMI Audio Input (2 Channel)

Outputs

Jump to...
  • Audio Output

    Receiver: Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Mobile App

    Bolt App

  • Desktop App

    Bolt Manager application for OSX & Windows

  • USB Interface Functionality

    Upgrade via USB-C
    5-Pin Locking Connector CCU

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    Transmitter: 2x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    Receiver: 5x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425 GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    Transmitter: 23 dbm EIRP
    Receiver: 21 dbm EIRP

  • Range

    Up to 750' (228.6m), line of sight

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Interoperability

    Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Nominal Power Consumption

    Transmitter: 7 Watts
    Receiver: 6 Watts

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"-20 and 3/8"-16 holes

  • Dimensions

    Transmitter: 2.36 x 4.05 x 1.30" (60 x 103 x 33mm)
    Receiver: 4.80 x 3.70 x 1.06" (122 x 94 x 27mm)

  • Weight

    Transmitter: 7.3 oz (206g)
    Receiver: 10.3 oz (292g)

  • UPC Code

    818264028834

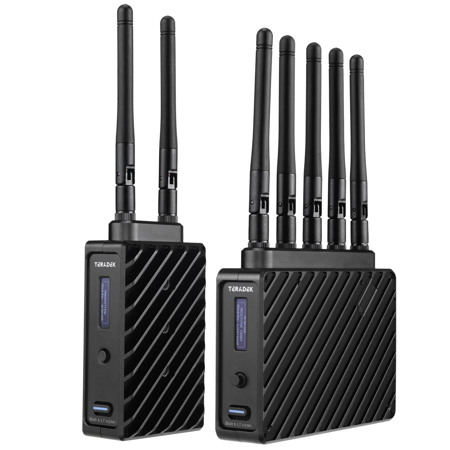

About Teradek Bolt 6 LT

What sets the Bolt 6 LT 750 HDMI Wireless Transmitter and Receiver Kit apart is its cutting-edge ability to deliver real-time, high-definition video transmission with exceptional clarity and precision. This advanced system supports 4K video and harnesses Teradek's patented Zero-Delay technology, ensuring that your video content is transmitted with virtually no latency - under 0.001 seconds - to maintain the integrity of your live production or event.

Crafted for durability and high-quality performance, the Bolt 6 LT 750 is equipped with an innovative 6GHz wireless frequency band, which significantly reduces interference compared to the congested 5GHz band used by many other devices. This leap in technology provides users with a much cleaner wireless environment, enhancing the stability and reliability of your video feed even in high-traffic areas.

The Bolt 6 LT 750 boasts an impressive 750-foot range, offering unparalleled flexibility and freedom in setting up your video transmission workflow. With the ability to link up to six receivers to a single transmitter, this system is designed for scalability and is cross-compatible with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Modules. This compatibility ensures a seamless integration into your existing setup, making it a smart choice for professionals looking to expand their capabilities.

The intuitive setup process is further simplified with the Bolt Manager App, available for both iOS and Android devices, which allows for quick configuration and monitoring of your connections. The Bolt 6 LT 750 also introduces new tools for high-end users, providing better visibility over connections and signals, and adding confidence to your workflow, no matter the complexity of the environment.

For those seeking advanced features, the Bolt 6 LT 750 includes a new Long Range Mode, which enhances video quality over longer distances, and the ability to pass metadata, timecode, and start/stop flags from most camera manufacturers. Additionally, a 5-pin USB adapter (sold separately) enables wireless camera-control setup when used with SmallHD Smart Monitors.

The Bolt 6 LT 750 HDMI Wireless Transmitter and Receiver Kit is not only a testament to reliable and advanced technology but also to the innovative solutions that are essential for today's film, television, and live event productions. With its robust design, compatibility with a wide range of devices, and the use of the less crowded 6GHz wireless frequency, the Bolt 6 LT 750 stands out as a superior choice for professionals seeking a high-quality, long-range wireless video transmission system.

Teradek Bolt 6 LT Features

  • Zero-Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency Access
  • Bolt 4K Cross-Compatibility
  • Improved Long Range Mode
  • Inputs: HDMI (Transmitter Only)
  • Outputs: HDMI

Key Features

  • High-definition, real-time wireless video transmission system with 750-foot range
  • Supports 4K video and utilizes Teradek's patented Zero-Delay technology
  • Operates on advanced 6GHz wireless frequency for reduced interference
  • Cross-compatible with the entire Bolt 4K Series for expanded workflow
  • Includes innovative Long Range Mode for enhanced video quality at greater distances

What's in the box:

  • Bolt 6 LT 750 HDMI Wireless Transmitter (V-Mount)
  • Bolt 6 LT 750 HDMI Wireless Receiver (V-Mount)
  • 2x 18" 2-Pin Connector to PowerTap Cable (Bit 118)
  • 6' PSU 2-Pin Connector to 18W AC Adapter (Int) Cable
  • 2x 3.28' USB 2.0 Type-A Male to USB Type-C Male Cable
  • 2x Bolt 4K LT Receiver Battery Cover
  • Hot Shoe Adapter
  • 2x Phillips Flat Head Screw
  • 1/4"-20 Lightstand Adapter
  • Large Case
  • 7x Antenna
  • Teradek 1 Year Limited Warranty
