What is the range of the Bolt 6 LT HDMI Wireless Receiver?

The Bolt 6 LT HDMI Wireless Receiver offers a range of up to 750 feet, providing greater flexibility for positioning and signal transmission.

What kind of video quality does the Bolt 6 LT HDMI Wireless Receiver support?

The Bolt 6 LT HDMI Wireless Receiver supports 4K video with Teradek's patented Zero-Delay technology, delivering high-quality, color-accurate, True-HDR videos.

What wireless frequency does the Bolt 6 LT HDMI Wireless Receiver use?

The Bolt 6 LT HDMI Wireless Receiver utilizes the newly opened 6GHz wireless frequency for better image quality and reduced interference. It can also be set up in 5GHz Mode for backwards compatibility.

Is the Bolt 6 LT HDMI Wireless Receiver compatible with other devices in the Bolt series?

Yes, the Bolt 6 LT HDMI Wireless Receiver is cross-compatible with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules.

Does the Bolt 6 LT HDMI Wireless Receiver support the transmission of metadata, timecode, and start/stop flags?

Yes, the Bolt 6 LT HDMI Wireless Receiver supports the transmission of metadata, timecode, and start/stop flags from most camera manufacturers.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Teradek Bolt 6 LT Specifications

Video
  • Video Outputs

    1x HDMI 1.4b Type-A receptacle

  • Color Sampling

    HDMI: RGB/YCrCb 4:4:4, 8/10-bit; YCrCb 4:2:2

  • Delay Tx to Rx

    <0.001sec

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p59.94/60 576p50

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Test Pattern Generator Support

    None

  • Spectrum Analyzer

    Yes

  • Color Correction

    None

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

Outputs

Jump to...
  • Audio Output

    Embedded HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Mobile App

    Bolt App

  • Desktop App

    Bolt Manager application for OSX & Windows

  • USB Interface Functionality

    Upgrade via USB-C
    5-Pin Locking Connector CCU

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    5x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425 GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    21 dbm EIRP

  • Range

    Up to 750' (228.6m), line of sight

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Interoperability

    Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Nominal Power Consumption

    6 Watts

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"-20 and 3/8"-16 holes

  • Dimensions

    4.80 x 3.70 x 1.06" (122 x 94 x 27mm)

  • Weight

    10.3 oz (292g)

  • UPC Code

    818264028865

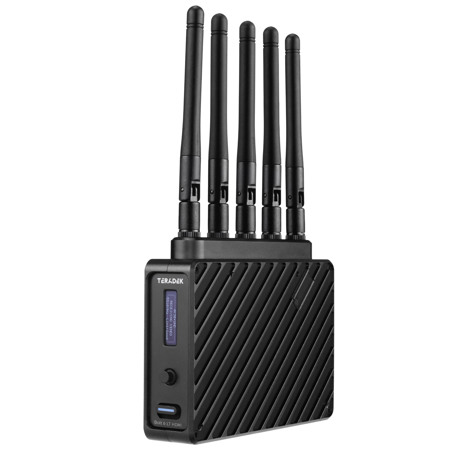

About Teradek Bolt 6 LT

When seeking a robust and reliable solution for real-time wireless video transmission, the Bolt 6 LT HDMI Wireless Receiver, Gold Mount, 750' Range stands out as an innovative choice. This advanced receiver, crafted by the reputable brand Teradek, supports 4K video with patented Zero-Delay technology, ensuring high-quality, color-accurate, True-HDR videos are delivered in under 0.001 seconds.

The Bolt 6 LT HDMI RX is designed to offer a remarkable range of 750 feet, providing users with the flexibility they need for various applications, from live events to worship services and presentations. It boasts fast reconnection times and an intuitive setup process, facilitated by the user-friendly Bolt Manager App available for both iOS and Android devices.

One of the key features of this durable receiver is its utilization of the 6GHz band, a newly opened wireless frequency that guarantees better image quality and reduced interference. This makes it an ideal choice for use in high-traffic areas, offering users more options for frequency adjustments with 12 new channels.

The Bolt 6 LT HDMI RX is not just about delivering high-quality video; it also supports the transmission of metadata, timecode, and start/stop flags from most camera manufacturers. It offers new tools for high-end users, including improved visibility over connections and signals, adding confidence to any workflow, no matter how challenging the environment.

The receiver also introduces a new Long Range Mode, offering superior video quality at longer distances. For an effortless and wireless camera-control setup, a 5-pin USB adapter can be used in conjunction with SmallHD Smart Monitors (sold separately).

The Bolt 6 LT HDMI RX is cross-compatible with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules, providing you with the flexibility to expand your workflow requirements. You can link up to 6 receivers to one transmitter, making it a versatile solution for various setups.

The Bolt 6 LT HDMI RX is designed for 4K HDMI only. If you require both 4K HDMI and 1080p SDI input and outputs, the Bolt 6 LT model is also available.

In terms of wireless communication, the Bolt 6 LT HDMI RX stands out with its use of the newly opened 6GHz wireless frequency. This frequency offers a quieter wireless environment compared to the crowded 5GHz frequency used by many devices, resulting in faster connections and less interference for a superior wireless experience. However, it can still be set up in 5GHz Mode for backwards compatibility.

In summary, the Bolt 6 LT HDMI Wireless Receiver, Gold Mount, 750' Range is a high-quality, reliable, and advanced solution for your wireless video transmission needs.

Teradek Bolt 6 LT Features

  • Zero-Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency Access
  • Bolt 4K Cross-Compatibility
  • Improved Long Range Mode
  • Outputs: HDMI

Key Features

  • Real-time wireless video receiver supporting 4K video with Zero-Delay technology
  • Provides a range of 750 feet for flexible positioning and optimal signal transmission
  • Utilizes the quieter 6GHz wireless frequency for better image quality and reduced interference
  • Compatible with the Bolt Manager App for intuitive setup on iOS and Android devices
  • Supports metadata, timecode, and start/stop flags transmission from most camera manufacturers
  • Cross-compatible with the entire Bolt 4K Series for expanded workflow requirements

What's in the box:

  • Teradek Bolt 6 LT 750 HDMI Wireless Receiver (Gold Mount)
  • 18" 2-Pin Connector to PowerTap Cable (Bit 118)
  • 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • 6' PSU 2-Pin Connector to 18W AC Adapter (Int) Cable
  • 3.28' USB 2.0 Type-A Male to USB Type-C Male Cable
  • Bolt 4K LT Receiver Battery Cover
  • 2x Phillips Flat Head Screw
  • 5x Antenna
  • Teradek 1 Year Limited Warranty
