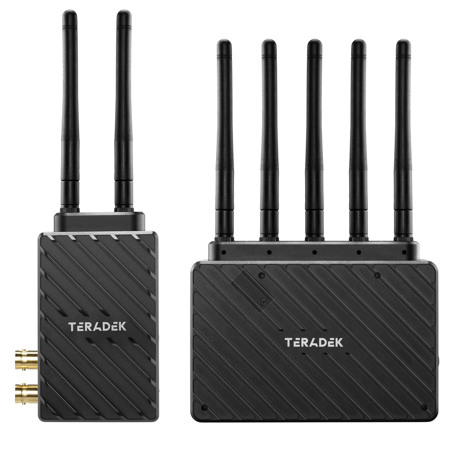

Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Transmitter and Receiver Kit, 1500' Range

SKU: TE102270 MFR: 10-2270
Earn VIP Reward Points

Key Features

  • Experience stable signal transmission up to 1500' with this wireless video transmitter kit.
  • Enjoy low latency, visually lossless HD video with SDI/HDMI inputs and outputs for pro use.
  • This durable build Teradek Bolt 6 LT supports 1080p60, ensuring high-quality wireless broadcast.
  • Set up easily with included accessories; perfect for on-location wireless video monitoring.
  • Achieve high resolution video with 4Kp30 (HDMI only), ideal for professional filmmaking.
  • This long range system features AES-256 encryption for secure wireless video transmission.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek 10-2270 Specifications

Video
  • Video Inputs

    Transmitter: 3G-SDI SMPTE 424M standard / 75 Ohm (1x BNC)
    1x HDMI 1.4b Type-A receptacle

  • Video Outputs

    Transmitter: 3G-SDI SMPTE 424M standard / 75 Ohm (1x BNC)
    Receiver: 3G-SDI SMPTE 424M standard / 75 Ohm (1x BNC)

  • SDI Ancillary Data Support

    Supports reading metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit

  • Delay Tx to Rx

    Transmitter: <0.001sec

  • Input Cross Conversion

    Transmitter: Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)

  • Output Video Scaling

    Receiver: No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30 (HDMI only)
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p59.94 576p50
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Test Pattern Generator Support

    Receiver: Yes

  • Spectrum Analyzer

    Receiver: Yes

  • Color Correction

    Transmitter: None
    Receiver: 17 x 17 x 17 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

  • Audio Input

    Transmitter: Embedded SDI/HDMI Audio Input (2 Channel)

Outputs

Jump to...
  • Audio Output

    Receiver: Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Mobile App

    Bolt App

  • Desktop App

    Bolt Manager application for OSX & Windows

  • USB Interface Functionality

    Upgrade via Micro-USB

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    Transmitter: 2x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    Receiver: 5x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    Transmitter: 23 dbm EIRP
    Receiver: 21 dbm EIRP

  • Range

    Up to 1500' (457.2m), line of sight

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Interoperability

    Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT Transmitter and Receiver (limited by shortest range device)

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Nominal Power Consumption

    Transmitter: 9 Watts
    Receiver: 11 Watts

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Transmitter: Multiple mounting options with 1/4"-20 and M3 holes
    Receiver: Multiple mounting options with 1/4"-20 and 3/8"-16 holes

  • Dimensions

    Transmitter: 2.36 x 4.05 x 1.29" (60 x 103 x 33mm)
    Receiver: 4.80 x 3.70 x 1.06" (122 x 94 x 27mm)

  • Weight

    Transmitter: 7.3 oz (206g)
    Receiver: 10.3 oz (292g)

  • UPC Code

    818264028308

About Teradek 10-2270

You can elevate your production capabilities with the advanced Bolt 6 LT 1500 3G-SDI/HDMI Wireless Transmitter and Receiver Kit. This innovative kit is designed to redefine wireless video transmission, delivering high-quality, lossless HD video over an impressive range of up to 1500 feet.

Experience superior clarity and range with this reliable system, capable of receiving UHD 4K30 video with 10-bit 4:2:2 HDR support. This feature sets it apart as one of the most advanced and high-performing wireless video transmission systems in the industry.

The Bolt 6 LT 1500 offers unparalleled flexibility with its adaptable inputs and outputs. The transmitter can accommodate video over both 3G-SDI or HDMI, complete with 3G-SDI and HDMI loop outputs. Simultaneously, the receiver outputs video flawlessly through 3G-SDI and HDMI, ensuring compatibility with a wide range of devices.

This durable kit seamlessly integrates with all Bolt 4K models on the 5 GHz wireless band, offering the potential for workflow expansion with the entire Bolt 4K Series. If your requirements lean towards HDMI, the Bolt 6 LT HDMI model is also available.

The Bolt 6 LT 1500 stands out with its use of the newly minted 6GHz wireless frequency. This innovative technology minimizes interference, especially in areas with high electronic activity, paving the way for faster connections, reduced disruptions, and an enhanced wireless experience.

Beyond just transmitting videos, the Bolt 6 LT 1500 offers advanced tools designed for professionals. Enjoy consistent visibility over connections and signals with the innovative Long Range Mode, promising exceptional video quality even from afar. For users utilizing SmallHD Smart Monitors, the 5-pin USB adapter, available separately, streamlines the wireless camera-control setup.

Stay connected and manage your Bolt 6 LT Set effortlessly with the intuitive Bolt Manager App, available for both iOS and Android. The app ensures stable connectivity, quick reconnections, and a user-friendly interface.

The Bolt 6 LT 1500 3G-SDI/HDMI Wireless Transmitter and Receiver Kit is more than just another piece of equipment. It's a state-of-the-art solution equipped with cutting-edge features, designed to redefine industry standards and enhance your wireless video transmission experience.

Teradek 10-2270 Features

  • Supports the advanced 6 GHz wireless frequency, compatible with Bolt 6 series devices
  • Fully cross-compatible with the Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series over 5 GHz signal spectrum
  • Capable of video input up to UHD 4K30 via HDMI and 1080p60 through SDI with SDI loop output
  • Built-in SDI Eye Pattern Tool ensuring optimal SDI cable health
  • Fully supports the superior Rec 2020 HDR in the vivid 10-bit 4:2:2 color spectrum
  • Enhanced "long range" mode for improved distance performance
  • Compact, streamlined chassis design for optimal portability
  • Multicast capability to up to six compatible Bolt 4K or Bolt 6 receivers
  • Secure transmissions with AES-256 encryption protocol
  • Comprehensive 3G-SDI/HDMI transmitter and receiver set designed for modern videography
  • Line-of-sight transmission range of up to a staggering 1500'
  • Flawless, no-delay 10-bit 4:2:2 support for pristine visual delivery
  • Seamless integration with Bolt 4K series 5G TX/RX
  • Equipped with seven antennas, ensuring robust connection and minimal interference
  • A versatile mobile application available on both iOS and Android, offering spectrum analysis and remote configuration capabilities
  • Zero-Delay wireless video for real-time transmission
  • Bolt 4K Cross-Compatibility ensuring a diverse range of setup configurations
  • Enhanced Long Range Mode to maintain video quality across larger distances

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience stable signal transmission up to 1500' with this wireless video transmitter kit.
  • Enjoy low latency, visually lossless HD video with SDI/HDMI inputs and outputs for pro use.
  • This durable build Teradek Bolt 6 LT supports 1080p60, ensuring high-quality wireless broadcast.
  • Set up easily with included accessories; perfect for on-location wireless video monitoring.
  • Achieve high resolution video with 4Kp30 (HDMI only), ideal for professional filmmaking.
  • This long range system features AES-256 encryption for secure wireless video transmission.

What's in the box:

  • Bolt 6 LT Transmitter
  • Bolt 6 LT Receiver
  • Lightstand Adapter 1/4"-20
  • Hot Shoe Adapter
  • 18" 2-Pin Connecter to PowerTap Cable (Bit 118)
  • 2x 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • 2x 10" 3G-SDI BNC to BNC Cable
  • 6' 2-Pin Connecter to 18W AC Adapter (Int)
  • 3' USB Male Type-A (Full) to USB Male Type-B (Micro) Cable
  • 7x Antennas
  • Large Case
  • Teradek 1 Year Limited Warranty
