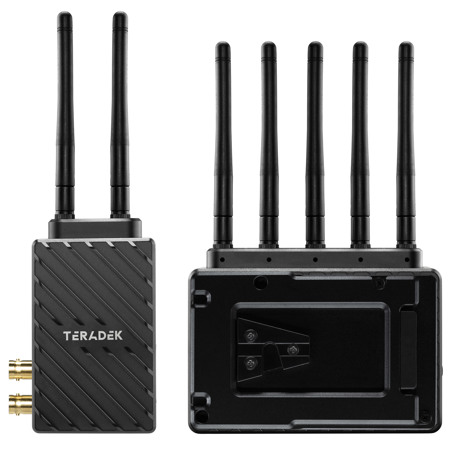

Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Transmitter and Receiver Deluxe Kit, V-Mount, 1500' Range

SKU: TE102270V MFR: 10-2270-V
Earn VIP Reward Points

Key Features

  • Experience reliable connection with this Teradek Bolt 6 LT wireless video transmitter and receiver kit.
  • Achieve high resolution video up to 1500' with low latency, perfect for professional monitoring.
  • Enjoy easy setup with the included accessories, making this wireless system ready to use out-of-the-box.
  • This durable system supports 3G-SDI/HDMI, ensuring seamless integration with your existing equipment.
  • Streamline your workflow with long range wireless, ideal for on-location shoots and live broadcasting.
  • The Bolt 6 LT offers AES-256 encryption, securing your wireless video transmissions for sensitive projects.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek 10-2270 Specifications

Includes

Includes

Jump to...
  • Additional Included Items

    5x 4" RP-SMA Female to RP-SMA Female Cable
    2x 10" 3G-SDI BNC to BNC Cable
    3' USB Male Type-A (Full) to USB Male Type-B (Micro) Cable
    6' PSU 2-Pin Connecter to 18W AC Adapter (Int)
    Wooden Camera Offset Mount
    3x Antenna
    XL Case

  • Video Inputs

    Transmitter: 3G-SDI SMPTE 424M standard / 75 Ohm (1x BNC)
    1x HDMI 1.4b Type-A receptacle

  • Video Outputs

    Transmitter: 3G-SDI SMPTE 424M standard / 75 Ohm (1x BNC)
    Receiver: 3G-SDI SMPTE 424M standard / 75 Ohm (1x BNC)

  • Video Outputs

    Transmitter: 3G-SDI SMPTE 424M standard / 75 Ohm (1x BNC)
    Receiver: 3G-SDI SMPTE 424M standard / 75 Ohm (1x BNC)

  • SDI Ancillary Data Support

    Supports reading metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit

  • Delay Tx to Rx

    Transmitter: <0.001sec

  • Input Cross Conversion

    Transmitter: Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)

  • Output Video Scaling

    Receiver: No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30 (HDMI only)
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p59.94 576p50
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Test Pattern Generator Support

    Receiver: Yes

  • Spectrum Analyzer

    Receiver: Yes

  • Color Correction

    Transmitter: None
    Receiver: 17 x 17 x 17 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

  • Audio Input

    Transmitter: Embedded SDI/HDMI Audio Input (2 Channel)

Outputs

Jump to...
  • Audio Output

    Receiver: Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Mobile App

    Bolt App

  • Desktop App

    Bolt Manager application for OSX & Windows

  • USB Interface Functionality

    Upgrade via Micro-USB

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    Transmitter: 2x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    Receiver: 5x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    Transmitter: 23 dbm EIRP
    Receiver: 21 dbm EIRP

  • Range

    Up to 1500' (457.2m), line of sight

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Interoperability

    Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT Transmitter and Receiver (limited by shortest range device)

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Nominal Power Consumption

    Transmitter: 9 Watts
    Receiver: 11 Watts

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Transmitter: Multiple mounting options with 1/4"-20 and M3 holes
    Receiver: Multiple mounting options with 1/4"-20 and 3/8"-16 holes

  • Dimensions

    Transmitter: 2.36 x 4.05 x 1.29" (60 x 103 x 33mm)
    Receiver: 4.80 x 3.70 x 1.06" (122 x 94 x 27mm)

  • Weight

    Transmitter: 7.3 oz (206g)
    Receiver: 10.3 oz (292g)

  • UPC Code

    818264028322

About Teradek 10-2270

Just when you thought wireless video transmission couldn't get any better, the Bolt 6 LT 1500 3G-SDI/HDMI Wireless Transmitter and Receiver Deluxe Kit, V-Mount, 1500' Range steps in to revolutionize your production experience. This advanced and reliable system is designed to transmit and receive real-time, color-accurate, True-HDR videos in under 0.001 seconds, thanks to Teradek's patented Zero-Delay technology.

The Bolt 6 LT Set is not just a transmitter and receiver; it's a complete kit designed for high-quality video production. With a remarkable range of 1500 feet, it offers unparalleled flexibility in the placement of your equipment, making it an ideal choice for film and television production, live events, and any application that requires a robust wireless signal.

This innovative system utilizes the newly opened 6GHz wireless frequency, providing less interference and better image quality. In high-traffic areas, the 6GHz frequency offers 12 new channels for frequency adjustments, giving you more options and consistent, stable connectivity.

The Bolt 6 LT Set is also equipped with the ability to pass metadata, timecode, and start/stop flags from most camera manufacturers. It offers new tools for high-end users, including improved visibility over connections and signals, adding confidence to your workflow, no matter how challenging the environment.

The kit includes our most compact transmitter and receiver design ever, both of which are cross-compatible with the entire Bolt 4K Series. This compatibility gives you the flexibility to expand your workflow as needed. The Bolt 6 LT Set supports both 4K HDMI and 1080p SDI input and outputs, but an HDMI-only model is also available for those with specific production needs.

Experience a quieter wireless environment with the Bolt 6 LT Set, which uses the 6GHz wireless frequency for faster connections and less interference. This durable and high-quality system is designed to provide a superior wireless experience, making it a must-have for any professional production setup.

Teradek 10-2270 Features

  • Zero-Delay wireless video
  • 6GHz Wireless Frequency Access
  • Bolt 4K Cross-Compatibility
  • Improved Long Range Mode
  • Inputs: HDMI, 3G-SDI (Transmitter Only)
  • Outputs: HDMI, 3G-SDI

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience reliable connection with this Teradek Bolt 6 LT wireless video transmitter and receiver kit.
  • Achieve high resolution video up to 1500' with low latency, perfect for professional monitoring.
  • Enjoy easy setup with the included accessories, making this wireless system ready to use out-of-the-box.
  • This durable system supports 3G-SDI/HDMI, ensuring seamless integration with your existing equipment.
  • Streamline your workflow with long range wireless, ideal for on-location shoots and live broadcasting.
  • The Bolt 6 LT offers AES-256 encryption, securing your wireless video transmissions for sensitive projects.

What's in the box:

  • Bolt 6 LT Transmitter (V-Mount)
  • Bolt 6 LT Receiver (V-Mount)
  • Antenna Array
  • 2x Bolt 4K LT Receiver Battery Cover
  • Lightstand Adapter 1/4"-20
  • Hot Shoe Adapter
  • 2x Phillips Flat Head Screw
  • 2x 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • 18" 2-Pin Connecter to PowerTap Cable (Bit 118)
  • 18" 2-Pin Connecter to 2-Pin Connecter (Alexa) Cable (Bit 718)
  • (See Specification Section for Additional Included Items)
  • Teradek 1 Year Limited Warranty
