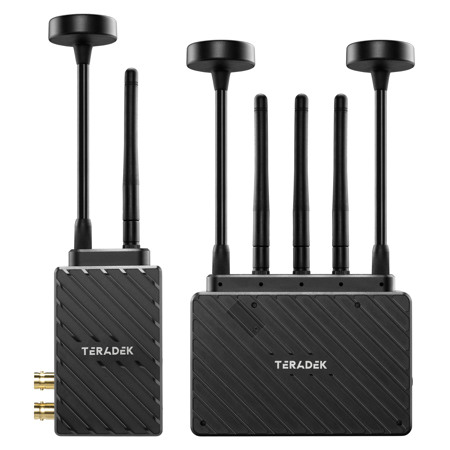

Teradek Bolt 6 LT MAX 3G-SDI/HDMI Wireless Transmitter and Receiver Kit, Up to 5000'

SKU: TE102279 MFR: 10-2279
Earn VIP Reward Points

Key Features

  • Experience reliable connection with this Teradek Bolt 6 LT MAX kit for seamless video transmission.
  • Achieve long range wireless video up to 5000' with low latency, ideal for demanding shoots.
  • Enjoy high resolution support up to 4K30 (HDMI only) for crystal-clear broadcast quality video.
  • This wireless transmitter and receiver kit offers ease of use with intuitive OSD menu navigation.
  • Benefit from durable construction, ensuring reliable performance in various production environments.
  • Streamline your workflow using multiple mounting options for versatile on-set integration.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek 10-2279 Specifications

Video
  • Video Inputs

    Transmitter: 3G-SDI SMPTE 424M standard / 75 Ohm (1x BNC)
    1x HDMI 1.4b Type-A receptacle

  • Video Outputs

    Transmitter: 3G-SDI SMPTE 424M standard / 75 Ohm (1x BNC)
    Receiver: 3G-SDI SMPTE 424M standard / 75 Ohm (1x BNC)
    1x HDMI 1.4b Type-A receptacle

  • SDI Ancillary Data Support

    Supports reading metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit

  • Delay Tx to Rx

    Transmitter: <0.001sec

  • Input Cross Conversion

    Transmitter: Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)

  • Output Video Scaling

    Receiver: No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30 (HDMI only)
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p59.94 576p50
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Test Pattern Generator Support

    Receiver: Yes

  • Spectrum Analyzer

    Receiver: Yes

  • Color Correction

    Transmitter: None
    Receiver: 17 x 17 x 17 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

  • Audio Input

    Transmitter: Embedded SDI/HDMI Audio Input (2 Channel)

Outputs

Jump to...
  • Audio Output

    Receiver: Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Mobile App

    Bolt App

  • Desktop App

    Bolt Manager application for OSX & Windows

  • USB Interface Functionality

    Upgrade via Micro-USB

  • Bluetooth

    2.4GHz

Network

Jump to...
  • Antennas

    Transmitter:
    External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    Mushroom Antenna

    Receiver:
    3x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    2x Mushroom Antenna

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230GHz, 5.755 - 5.795GHz, 5.945 - 6.425GHz
    DFS Frequencies: 5.270 - 5.670GHz

  • RF Power

    Transmitter: 23 dbm EIRP
    Receiver: 21 dbm EIRP

  • Range

    Up to 5000' (1524m), line of sight

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Interoperability

    Transmitter: Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
    Receiver: Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Power Consumption

    Transmitter: 9 Watts
    Receiver: 11 Watts

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Transmitter: Multiple mounting options with 1/4"x20 and M3 holes
    Receiver: Multiple mounting options with 1/4"x20 and 3/8"x16 holes

  • Dimensions

    Transmitter: 2.36 x 4.05 x 1.29" (60 x 103 x 33mm)
    Receiver: 4.80 x 3.7 x 1.06" (122 x 94 x 27mm)

  • Weight

    Transmitter: 7.3 oz (206g)
    Receiver: 10.3 oz (292g)

  • UPC Code

    818264028377

About Teradek 10-2279

From the cutting-edge studios of film and television production to the dynamic environments of live events, the Bolt 6 LT MAX 3G-SDI/HDMI Wireless Transmitter and Receiver Kit stands as a beacon of innovation and reliability in wireless video transmission. This high-quality system supports 4K video and harnesses Teradek's patented Zero-Delay technology to deliver real-time, color-accurate, True-HDR videos with an imperceptible latency of under 0.001 seconds.

The Bolt 6 LT MAX is designed with durability and advanced technology in mind, utilizing the newly opened 6GHz wireless frequency to significantly reduce interference, ensuring stable and consistent connectivity even in the most challenging conditions. With the inclusion of 12 new channels, users in high-traffic areas gain greater flexibility for frequency adjustments, making this system a versatile choice for a wide range of applications.

The intuitive setup process is further simplified with the Bolt Manager App, available for both iOS and Android devices, allowing for fast reconnection times and easy management of the system's robust features. The Bolt 6 LT MAX also boasts the ability to pass metadata, timecode, and start/stop flags from most camera manufacturers, streamlining the production workflow.

For high-end users, the Bolt 6 LT MAX offers enhanced visibility over connections and signals, adding a layer of confidence to the workflow. The new Long Range Mode ensures superior video quality at extended distances, up to an impressive 5000 feet, providing unparalleled freedom in transmitter and receiver placement.

The kit's compact and cross-compatible design allows for seamless integration with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Modules. This feature enables users to link up to 6 receivers to one transmitter or to connect unlimited receivers in Broadcast Mode, expanding workflow possibilities.

Equipped with both 4K HDMI and 1080p SDI inputs and outputs, the Bolt 6 LT MAX caters to a diverse array of professional needs. While the 5GHz frequency is often congested with devices such as Wi-Fi routers, cell phones, and other wireless video systems, the Bolt 6 LT MAX's use of the 6GHz frequency creates a dramatically quieter wireless environment. However, for those requiring backward compatibility, the system can still operate in 5GHz Mode.

The Bolt 6 LT MAX 3G-SDI/HDMI Wireless Transmitter and Receiver Kit is not just a tool but a reliable partner for filmmakers, broadcasters, and content creators who demand the best in wireless video transmission technology.

Teradek 10-2279 Features

  • Zero Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency Access
  • Bolt 4K Cross-Compatibility
  • Improved Long Range Mode
  • Inputs: HDMI, 3G-SDI (For Transmitter only)
  • Outputs: HDMI, 3G-SDI

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience reliable connection with this Teradek Bolt 6 LT MAX kit for seamless video transmission.
  • Achieve long range wireless video up to 5000' with low latency, ideal for demanding shoots.
  • Enjoy high resolution support up to 4K30 (HDMI only) for crystal-clear broadcast quality video.
  • This wireless transmitter and receiver kit offers ease of use with intuitive OSD menu navigation.
  • Benefit from durable construction, ensuring reliable performance in various production environments.
  • Streamline your workflow using multiple mounting options for versatile on-set integration.

What's in the box:

  • Bolt 6 LT MAX Wireless Transmitter
  • Bolt 6 LT MAX Wireless Receiver
  • Lightstand Adapter 1/4"-20
  • Hot Shoe Adapter
  • 18" 2-Pin Connector to PowerTap Cable (Bit 118)
  • 2x 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • 2x 10" SDI BNC to BNC Cable
  • 6' PSU 2-Pin Connector to 18W AC Adapter (Int) Cable
  • 3' USB Male Type-A (Full) to USB Type-B Male (Micro) Cable
  • 4x Standard Antenna
  • 3x Mushroom Antenna
  • Large Case
  • Teradek 1 Year Limited Warranty
