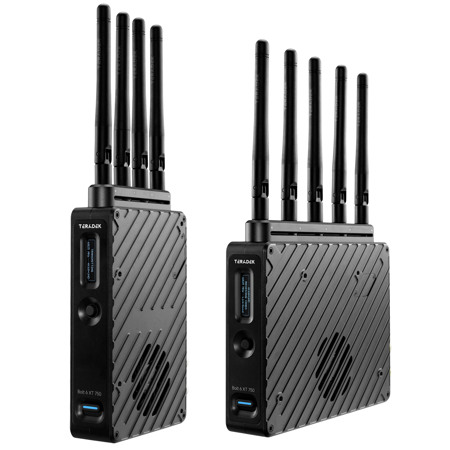

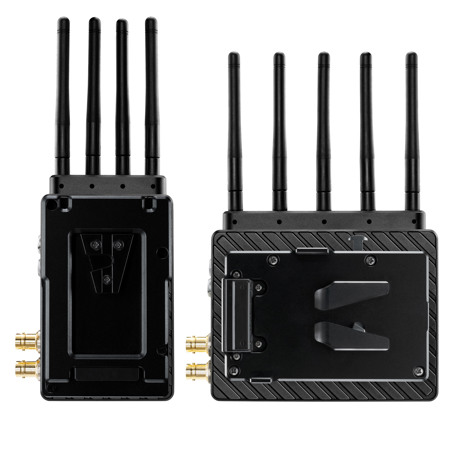

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter and Receiver Deluxe Kit, V-Mount, 750' Range

SKU: TE102300V MFR: 10-2300-V
Earn VIP Reward Points

Key Features

  • Experience reliable connection with this Teradek Bolt 6 XT wireless transmitter/receiver kit.
  • Achieve high resolution video up to 4K with near-zero latency, perfect for live broadcasts.
  • Enjoy long range video transmission up to 750', ideal for on-location film production.
  • This compact size system offers easy setup, so you can quickly begin your video projects.
  • Benefit from a robust 12G-SDI/HDMI wireless system, ensuring a stable video signal.
  • Utilize the V-Mount deluxe kit for seamless integration with professional camera setups.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek 10-2300 Specifications

Includes

Includes

Jump to...
  • Additional Included Items

    2x 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
    2x 18" 12G-SDI BNC to BNC Cable
    6' PSU 2-Pin Connecter to 30W AC Adapter (Int) Cable
    9x Antenna
    Wooden Camera Universal Ultra Arm Monitor Mount (Combo 1/4-20" & 3/8-16/ 5")
    3.28' USB 2.0 Type-A Male to USB Type-C Male Cable
    4x Bolt 6 XT Battery Cover Plates (Front/Rear)
    Large Case

  • Video Inputs

    Transmitter: 12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • Video Outputs

    Transmitter: 12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    Receiver: 12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • SDI Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit

  • Delay Tx to Rx

    Transmitter: <0.001sec

  • Input Cross Conversion

    Transmitter: Yes, HDMI to SDI

  • Output Video Scaling

    Receiver: Yes, Framerate and Resolution Scaling

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Color Correction

    Transmitter: None
    Receiver: 17 x 17 x 17 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

  • Audio Input

    Transmitter: Embedded SDI/HDMI Audio Input (2 Channel)

Outputs

Jump to...
  • Audio Output

    Receiver: Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • USB Interface Functionality

    Upgrade via USB-C
    5pin Locking Connector CCU

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    Transmitter: 4x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    Receiver: 5x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    Transmitter: 23 dbm EIRP
    Receiver: 21 dbm EIRP

  • Range

    Up to 750' (228.6m), line of sight

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Power Consumption

    Transmitter: 20 Watts
    Receiver: 18 Watts

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Transmitter: Multiple mounting options with 1/4"x20 and M3 holes
    Receiver: Multiple mounting options with 1/4"x20 and 3/8"x16 holes

  • Dimensions

    Transmitter: 5.19 x 3.58 x 1.06" (132 x 91 x 27mm)
    Receiver: 4.40 x 5.47 x 1.06" (112 x 139 x 27mm)

  • Weight

    Transmitter: 12.1 oz (344g)
    Receiver: 15.2 oz (430g)

  • UPC Code

    818264027103

About Teradek 10-2300

Because the Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter and Receiver Deluxe Kit is a cutting-edge, real-time wireless video transmission system, it offers unparalleled performance in the field of professional video and audio applications. This innovative system supports 4K video, leveraging Teradek's patented Zero-Delay technology to deliver color-accurate, True-HDR videos in under 0.001 seconds.

The Bolt 6 XT 750 kit, with its compact and lightweight design, includes a high-quality transmitter and receiver that can effortlessly cover a range of up to 750 feet. This long-range capability provides greater flexibility in the placement of your equipment, making it ideal for use in filmmaking, live events, and broadcasting.

The system's use of the newly opened 6GHz wireless frequency ensures less interference and better image quality. In high-traffic areas, this frequency offers Bolt 6 XT users more options for frequency adjustments with 12 new channels, ensuring consistent, stable connectivity.

The Bolt 6 XT 750 kit also supports both SDI and HDMI, ensuring compatibility with a wide variety of cameras and monitors. It can pass metadata, timecode, and start/stop flags from most camera manufacturers, adding to its versatility.

The Bolt Manager App for iOS or Android facilitates an intuitive and easy setup, while the integrated 5-pin USB port allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors. The system also features an improved long-range wireless video mode and new tools for high-end users to monitor their connections and signals, adding confidence to the workflow in challenging environments.

The Bolt 6 XT 750 kit is cross-compatible with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules, providing you with the flexibility to expand your workflow requirements.

In the crowded 5GHz frequency space, the Bolt 6 XT 750 kit stands out by using the less congested 6GHz wireless frequency, ensuring faster connections and less interference for a superior wireless experience. However, it can still be set up in 5GHz Mode for backwards compatibility.

In conclusion, the Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter and Receiver Deluxe Kit is a reliable, durable, and high-quality solution for professional video and audio applications, offering a seamless blend of performance, flexibility, and compatibility.

Teradek 10-2300 Features

  • Zero-Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency
  • Bolt 4K Cross-Compatibility
  • Lightweight and Quiet
  • Built in 5-pin USB for camera control
  • Inputs: 12G-SDI, HDMI 2.0 (Transmitter)
  • Outputs: 12G-SDI, HDMI 2.0

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience reliable connection with this Teradek Bolt 6 XT wireless transmitter/receiver kit.
  • Achieve high resolution video up to 4K with near-zero latency, perfect for live broadcasts.
  • Enjoy long range video transmission up to 750', ideal for on-location film production.
  • This compact size system offers easy setup, so you can quickly begin your video projects.
  • Benefit from a robust 12G-SDI/HDMI wireless system, ensuring a stable video signal.
  • Utilize the V-Mount deluxe kit for seamless integration with professional camera setups.

What's in the box:

  • Bolt 6 XT Transmitter (V-Mount)
  • Bolt 6 XT Receiver (V-Mount)
  • Bolt 4K Tx Mounting Bracket
  • Lightstand Adapter 3/8"
  • Hot Shoe Adapter
  • 4x Screw Flat Head Phillips
  • 2x Screw Socket Cap A S (M3x16mm)
  • Hex L-Key 2.5mm Size 3-5/8" Length
  • 2x 18" 2-Pin Connecter to PowerTap Cable (Bit 118)
  • 18" 2-Pin Connecter to 2-Pin Connecter (Alexa) Cable (Bit 718)
  • (See Specification Section for Additional Included Items)
  • Teradek 1 Year Limited Warranty
