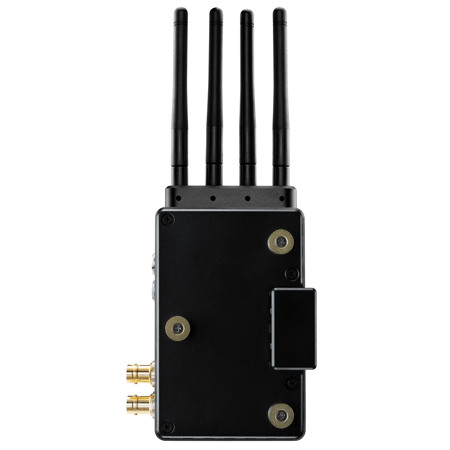

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter, Gold Mount, 750' Range

SKU: TE102301G MFR: 10-2301-G
Earn VIP Reward Points

Key Features

  • Experience stable signal transmission with this Teradek wireless transmitter.
  • Achieve high resolution video up to 4Kp60 with near-zero latency.
  • Enjoy a long range of up to 750' for flexible, wireless video workflows.
  • Set up is easy: be ready to transmit wireless video in just minutes.
  • Durable milled aluminum chassis ensures reliability in demanding conditions.
  • Supports 12G-SDI and HDMI for professional broadcast equipment compatibility.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$129.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek Bolt 6 XT Specifications

Video
  • Video Inputs

    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • Video Outputs

    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)

  • SDI Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB 4:4:4, 8-bit

  • Delay Tx to Rx

    <0.001sec

  • Input Cross Conversion

    Yes, HDMI to SDI

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Color Correction

    None

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

  • Audio Input

    Embedded SDI/HDMI Audio Input (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • USB Interface Functionality

    Upgrade via USB-C
    5pin Locking Connector CCU

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    4x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    23 dbm EIRP

  • Range

    Up to 750' (228.6m), line of sight

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Power Consumption

    20 Watts

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"-20 and M3 holes

  • Dimensions

    5.19 x 3.58 x 1.06" (132 x 91 x 27mm)

  • Weight

    12.1 oz (344g)

  • UPC Code

    818264027127

About Teradek Bolt 6 XT

If you're seeking a high-quality, reliable, and advanced solution for real-time wireless video transmission, look no further than the Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter. This innovative device supports 4K video and leverages Teradek's patented Zero-Delay technology to deliver color-accurate, True HDR videos in under 0.001 seconds.

The Bolt 6 XT 750 is designed with a range of up to 750 feet, making it an ideal choice for film and television production, live events, and other applications requiring long-distance wireless signal transmission. Its compatibility with both SDI and HDMI inputs enhances its versatility, allowing it to work seamlessly with a variety of devices.

The Bolt 6 XT 750 stands out with its use of the 6GHz wireless frequency, reducing interference and ensuring better image quality. This feature is particularly beneficial in high-traffic areas, offering users more options for frequency adjustments with 12 new channels.

This durable transmitter is not only capable of passing metadata, timecode, and start/stop flags from most camera manufacturers, but it also boasts fast reconnection times and an intuitive setup process via the Bolt Manager App for iOS or Android.

The Bolt 6 XT 750 has been redesigned for a seamless fit into your setup. Its smaller, lighter-weight build runs cooler and 50% quieter than the Bolt 4K, enhancing your user experience. An integrated 5-pin USB port facilitates effortless, wireless camera-control setup when used with SmallHD Smart Monitors, and an improved long-range wireless video mode adds to its functionality.

The Bolt 6 XT 750 is cross-compatible with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules, providing you with the flexibility to expand your workflow requirements.

In the crowded space of 5GHz frequency devices, the Bolt 6 XT 750 stands apart by utilizing the newly opened 6GHz wireless frequency. This ensures a quieter wireless environment with faster connections and less interference, although it can still be set up in 5GHz Mode for backwards compatibility.

In summary, the Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter is a reliable, advanced, and versatile solution for professionals seeking high-quality, interference-free wireless video and audio transmission.

Teradek Bolt 6 XT Features

  • Zero-Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency
  • Bolt 4K Cross-Compatibility
  • Lightweight and Quiet
  • Built in 5-pin USB for camera control
  • Inputs: 12G-SDI, HDMI 2.0
  • Outputs: 12G-SDI, HDMI 2.0

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience stable signal transmission with this Teradek wireless transmitter.
  • Achieve high resolution video up to 4Kp60 with near-zero latency.
  • Enjoy a long range of up to 750' for flexible, wireless video workflows.
  • Set up is easy: be ready to transmit wireless video in just minutes.
  • Durable milled aluminum chassis ensures reliability in demanding conditions.
  • Supports 12G-SDI and HDMI for professional broadcast equipment compatibility.

What's in the box:

  • Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter (Gold Mount)
  • 2x Bolt 6 XT Battery Cover (Front/Rear)
  • 2x Screw Flat Head Phillips
  • 18" 2-Pin Connecter to PowerTap Cable (Bit 118)
  • 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • 6' PSU 2-Pin Connecter to 30W AC Adapter (Int) Cable
  • 4x Antenna
  • 3.28' USB 2.0 Type-A Male to USB Type-C Male Cable
  • Teradek 1 Year Limited Warranty
