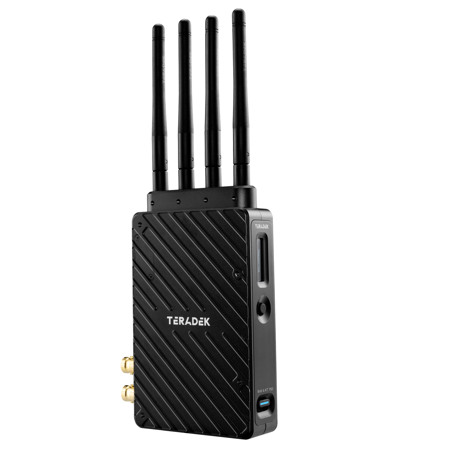

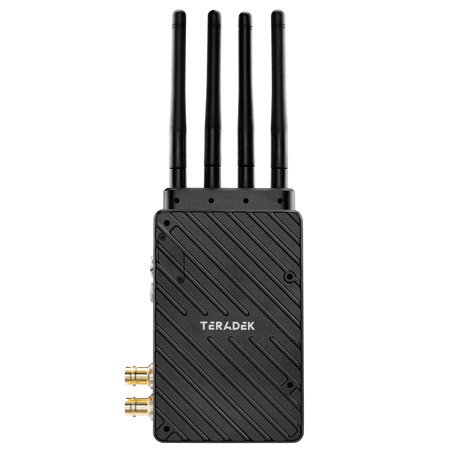

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter, 750' Range

SKU: TE10231 MFR: 10-2301
Earn VIP Reward Points

Key Features

  • Experience seamless video with this Teradek wireless transmitter, offering a stable connection.
  • Achieve up to 750' range with this wireless video transmitter, perfect for on-location shoots.
  • Enjoy high resolution video with low latency, ideal for live broadcasts and real-time monitoring.
  • This 12G-SDI/HDMI wireless transmitter supports multiple mounting options for flexible setups.
  • Ensure signal security with AES-256 encryption on this Teradek Bolt 6 XT wireless system.
  • Set up quickly with this wireless transmitter; it coexists with Wi-Fi and 5GHz cordless phones.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$129.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek Bolt 6 XT Specifications

Video
  • Video Inputs

    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • Video Outputs

    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)

  • SDI Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB 4:4:4, 8-bit

  • Delay Tx to Rx

    <0.001sec

  • Input Cross Conversion

    Yes, HDMI to SDI

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Color Correction

    None

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

  • Audio Input

    Embedded SDI/HDMI Audio Input (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • USB Interface Functionality

    Upgrade via USB-C
    5pin Locking Connector CCU

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    4x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    23 dbm EIRP

  • Range

    Up to 750' (228.6m), line of sight

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Power Consumption

    20 Watts

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"-20 and M3 holes

  • Dimensions

    5.19 x 3.58 x 1.06" (132 x 91 x 27mm)

  • Weight

    12.1 oz (344g)

  • UPC Code

    818264027110

About Teradek Bolt 6 XT

The Bolt 6 XT TX is a real-time wireless video transmitter that supports 4K video with Teradek's patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. This transmitter allows you to send color accurate, True HDR videos in under 0.001 seconds.

Key features of the Bolt 6 XT Transmitter include range options designed for a variety of production needs, fast reconnection times, an intuitive, easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 XT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 XT users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.

Bolt 6 XT has been redesigned to seamlessly fit into your setup, with a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K. An integrated 5-pin USB port allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors, and an improved long range wireless video mode. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.

The Transmitter is cross-compatible with the entire Bolt 4K Series - including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules - giving you the option to expand your workflow requirements. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

About 6GHz
Wifi routers, cell phones, IOT devices, and competitor wireless video systems are among the many devices that use the 5GHz frequency to communicate wirelessly, making it a highly crowded space where you'll likely encounter frequent interference and even video dropouts. Bolt 6 uses the newly opened 6GHz wireless frequency for a dramatically quieter wireless environment (though it can still be set up in 5GHz Mode for backwards compatibility). In 6GHz Mode, Bolt 6 users will access faster connections and less interference for a better wireless experience.

Teradek Bolt 6 XT Features

  • Zero-Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency
  • Bolt 4K Cross-Compatibility
  • Lightweight and Quiet
  • Built in 5-pin USB for camera control
  • Inputs: 12G-SDI, HDMI 2.0
  • Outputs: 12G-SDI, HDMI 2.0

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience seamless video with this Teradek wireless transmitter, offering a stable connection.
  • Achieve up to 750' range with this wireless video transmitter, perfect for on-location shoots.
  • Enjoy high resolution video with low latency, ideal for live broadcasts and real-time monitoring.
  • This 12G-SDI/HDMI wireless transmitter supports multiple mounting options for flexible setups.
  • Ensure signal security with AES-256 encryption on this Teradek Bolt 6 XT wireless system.
  • Set up quickly with this wireless transmitter; it coexists with Wi-Fi and 5GHz cordless phones.

What's in the box:

  • Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter
  • 18" 2-Pin Connecter to PowerTap Cable (Bit 118)
  • 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • 18" SDI 12G BNC to BNC Cable
  • 6' PSU 2-Pin Connecter to 30W AC Adapter (Int) Cable
  • 4x Antenna
  • 3.28' USB 2.0 Type-A Male to USB Type-C Male Cable
  • Teradek 1 Year Limited Warranty
