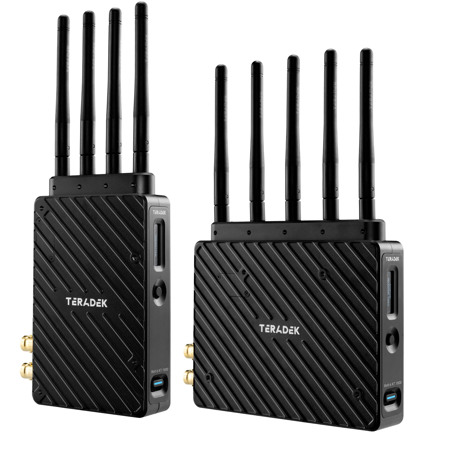

Teradek Bolt 6 XT 1500 12G-SDI/HDMI Wireless Transmitter and Receiver Kit, 1500' Range

SKU: TE102310 MFR: 10-2310
Earn VIP Reward Points

Key Features

  • Experience reliable wireless video with the Bolt 6 XT 1500's robust connectivity.
  • Achieve pristine image quality with visually lossless video compression technology.
  • Enjoy long range transmission up to 1500', perfect for on-location flexibility.
  • Benefit from low latency (<0.001sec) for real-time monitoring and seamless workflows.
  • Simplify your setup with easy to use interfaces and multiple mounting options.
  • Ensure a secure broadcast with AES-256 encryption for worry-free wireless video.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Teradek 10-2310 Specifications

Video
  • Video Inputs

    Transmitter: 12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • Video Outputs

    Transmitter: 12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    Receiver: 12G-SDI SMPTE 2082-1 / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • SDI Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB 4:4:4, 8-bit

  • Delay Tx to Rx

    <0.001sec

  • Input Cross Conversion

    Transmitter: Yes, HDMI to SDI

  • Output Video Scaling

    Receiver: Yes, Framerate and Resolution Scaling

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Color Correction

    Transmitter: None
    Receiver: 17 x 17 x 17 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

  • Audio Input

    Transmitter: Embedded SDI/HDMI Audio Input (2 Channel)

Outputs

Jump to...
  • Audio Output

    Receiver: Embedded SDI/HDMI Audio Output (2 Channel)

Network

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • USB Interface Functionality

    Upgrade via USB-C
    5pin Locking Connector CCU

  • Bluetooth

    2.4 GHz

  • Antennas

    Transmitter: 4x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    Receiver: 5x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    Transmitter: 23 dbm EIRP
    Receiver: 21 dbm EIRP

  • Range

    Up to 1500' (457.2m), line of sight

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Power Consumption

    Transmitter: 20 Watts
    Receiver: 18 Watts

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Transmitter: Multiple mounting options with 1/4"x20 and M3 holes
    Receiver: Multiple mounting options with 1/4"x20 and 3/8"x16 holes

  • Dimensions

    Transmitter: 5.19 x 3.62 x 1.06" (132 x 91 x 27 mm)
    Receiver: 4.4 x 5.47 x 1.06" (112 x 139 x 27mm)

  • Weight

    Transmitter: 12.1 oz (344g)
    Receiver: 15.2 oz (430g)

  • UPC Code

    818264027172

About Teradek 10-2310

When capturing the essence of your visual story, the Bolt 6 XT 1500 12G-SDI/HDMI Wireless Transmitter and Receiver Kit stands as a paragon of innovation and reliability in the field of wireless video transmission. This advanced system is engineered to support 4K video, harnessing Teradek's patented Zero-Delay technology to deliver real-time, color-accurate, True-HDR content with an imperceptible latency of less than 0.001 seconds.

The Bolt 6 XT 1500 is a durable and high-quality solution, offering a remarkable 1500-foot range that surpasses many alternatives on the market. Its versatility is further enhanced by its compatibility with both SDI and HDMI inputs, making it an indispensable tool for filmmakers, live event producers, and broadcast professionals seeking a wireless setup that doesn't compromise on quality or practicality.

Key features of the Bolt 6 XT 1500 include a variety of range options tailored to diverse production needs, rapid reconnection times, and an intuitive setup process facilitated by the Bolt Manager App, available for both iOS and Android devices. The system ensures consistent and stable connectivity, even in the most challenging environments.

Utilizing the less congested 6GHz wireless frequency band, the Bolt 6 XT 1500 delivers superior image quality with reduced interference. In high-traffic areas, users benefit from 12 additional channels for frequency adjustments, ensuring a cleaner signal path. The system is also adept at passing metadata, timecode, and start/stop flags from a wide array of camera manufacturers.

The Bolt 6 XT 1500 has been thoughtfully redesigned for seamless integration into any professional setup. Its compact and lightweight construction runs cooler and operates 50% quieter than its predecessor, the Bolt 4K. An integrated 5-pin USB port simplifies wireless camera-control setup when paired with SmallHD Smart Monitors, and an enhanced long-range wireless video mode further elevates its performance.

For those seeking to monitor their connections and signals with precision, the Bolt 6 XT 1500 offers new tools that add confidence to the workflow. The included transmitter and receiver are cross-compatible with the entire Bolt 4K Series, allowing for flexible expansion of your workflow requirements. Optional upgrades include Gold or V-Mount Battery plates for added convenience.

In an era where 5GHz Wifi routers, cell phones, IoT devices, and competing wireless video systems crowd the spectrum, the Bolt 6 XT 1500's use of the newly opened 6GHz wireless frequency ensures a dramatically quieter wireless environment. While it retains backward compatibility with 5GHz Mode, the 6GHz Mode opens the door to faster connections and minimal interference, providing a superior wireless experience for the most demanding video applications.

Teradek 10-2310 Features

  • Zero Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency
  • Bolt 4K Cross-Compatibility
  • Lightweight and Quiet
  • Built in 5-pin USB for camera control
  • Inputs: 12G-SDI, HDMI 2.0
  • Outputs: 12G-SDI, HDMI 2.0

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience reliable wireless video with the Bolt 6 XT 1500's robust connectivity.
  • Achieve pristine image quality with visually lossless video compression technology.
  • Enjoy long range transmission up to 1500', perfect for on-location flexibility.
  • Benefit from low latency (<0.001sec) for real-time monitoring and seamless workflows.
  • Simplify your setup with easy to use interfaces and multiple mounting options.
  • Ensure a secure broadcast with AES-256 encryption for worry-free wireless video.

What's in the box:

  • Bolt 6 XT 1500 Wireless Transmitter
  • Bolt 6 XT 1500 Wireless Receiver
  • 3/8" Lightstand Adapter
  • Hot Shoe Adapter
  • 2x 18" 2-Pin Connector to PowerTap Cable (Bit 118)
  • 2x 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • 2x 18" SDI 12G BNC to BNC Cable
  • 6' PSU 2-Pin Connector to 30W AC Adapter (Int) Cable
  • 9x Antenna
  • 3' USB 2.0 Type-A Male to USB Type-C Male Cable
  • Large Case
  • Teradek 1 Year Limited Warranty
