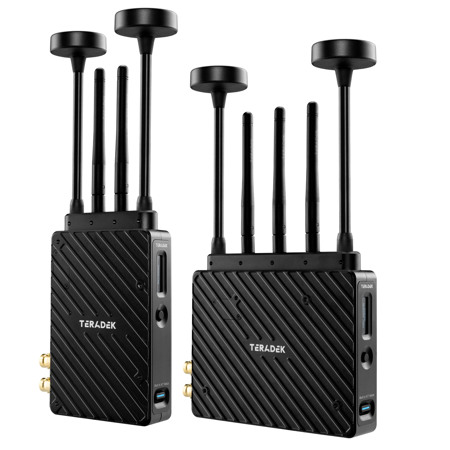

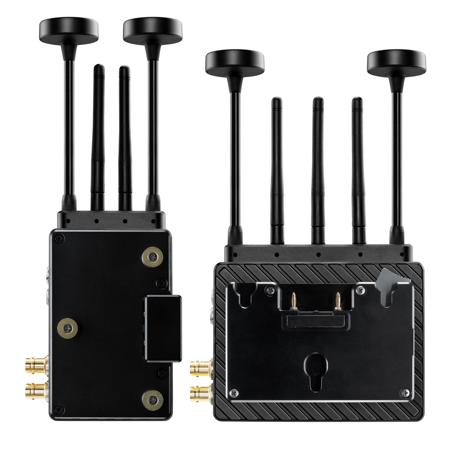

Teradek Bolt 6 XT MAX 5000 12G-SDI/HDMI Wireless Transmitter and Receiver Kit, Gold Mount, 5000' Range

SKU: TE102319G MFR: 10-2319-G
Earn VIP Reward Points

Key Features

  • Experience stable connection with this Teradek Bolt 6 XT MAX wireless system.
  • Achieve high resolution video up to 5000' with near-zero latency, ideal for live broadcasts.
  • Enjoy easy setup with this wireless video transmitter and receiver kit, ready to use out-of-the-box.
  • Durable build quality ensures reliable performance in demanding production environments.
  • Transmit pristine 4K video with 12G-SDI/HDMI, perfect for professional filmmaking workflows.
  • This long range system supports multiple receivers, expanding monitoring capabilities on set.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek Bolt 6 XT Specifications

Includes

Includes

Jump to...
  • Additional Included Items

    2x 18" 12G-SDI BNC to BNC Cable
    6' PSU 2-Pin Connector to 30W AC Adapter (Int) Cable
    5x Standard Antenna
    4x Mushroom Antenna
    Wooden Camera Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16/5")
    3.28' USB 2.0 Type-A Male to USB Type-C Male Cable
    4x Bolt 6 XT Battery Cover (Front/Rear)
    Large Case

  • Video Inputs

    Transmitter:
    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • Video Outputs

    Transmitter:
    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)

    Receiver:
    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • SDI Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB 4:4:4, 8-bit

  • Delay Tx to Rx

    <0.001sec

  • Input Cross Conversion

    Transmitter: Yes, HDMI to SDI

  • Output Video Scaling

    Receiver: Yes, Framerate and Resolution Scaling

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Color Correction

    Transmitter: None
    Receiver: 17 x 17 x 17 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

  • Audio Input

    Transmitter: Embedded SDI/HDMI Audio Input (2 Channel)

Outputs

Jump to...
  • Audio Output

    Receiver: Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • USB Interface Functionality

    Upgrade via USB-C
    5-Pin Locking Connector CCU

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    Transmitter:
    2x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    2x Mushroom Antenna

    Receiver:
    3x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    2x Mushroom Antenna

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425 GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    Transmitter: 23 dbm EIRP
    Receiver: 21 dbm EIRP

  • Range

    Up to 5000' (1524m), line of sight

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Power Consumption

    Transmitter: 20 Watts
    Receiver: 18 Watts

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Transmitter: Multiple mounting options with 1/4"-20 and M3 holes
    Receiver: Multiple mounting options with 1/4"-20 and 3/8"-16 holes

  • Dimensions

    Transmitter: 5.20 x 3.58 x 1.06" (132 x 91 x 27mm)
    Receiver: 4.41 x 5.47 x 1.06" (112 x 139 x 27mm)

  • Weight

    Transmitter: 12.1 oz (344g)
    Receiver: 15.2 oz (430g)

  • UPC Code

    818264027264

About Teradek Bolt 6 XT

Overcome the challenges of wireless video transmission with the Bolt 6 XT MAX 5000 12G-SDI/HDMI Wireless Transmitter and Receiver Kit. This advanced system is designed to deliver high-quality, color-accurate, True-HDR videos in real-time, with a remarkable delay of under 0.001 seconds. Leveraging Teradek's patented Zero-Delay technology, this innovative kit ensures seamless transmission of 4K video content, even in high-traffic areas.

The Bolt 6 XT MAX 5000 is equipped with a robust range of features tailored to meet diverse production needs. Its impressive 5000' range offers unprecedented flexibility in the placement of your transmitter and receiver, making it an ideal choice for live events, ENG crews, and film productions. The kit's compatibility with both SDI and HDMI interfaces further enhances its versatility, ensuring seamless integration with a wide array of devices.

Ease of setup is a key strength of the Bolt 6 XT MAX 5000. With the intuitive Bolt Manager App, available for iOS and Android, you can swiftly configure your system to suit your specific requirements. The kit also boasts fast reconnection times and stable connectivity, ensuring reliable performance throughout your production.

The Bolt 6 XT MAX 5000 operates on the newly opened 6GHz wireless frequency, providing superior image quality and reduced interference compared to systems using the crowded 5GHz band. This advanced system also offers 12 additional channels for frequency adjustments, enhancing its performance in high-traffic environments.

Designed for seamless integration into your setup, the Bolt 6 XT MAX 5000 features a compact, lightweight build that runs cooler and 50% quieter than the Bolt 4K. Its integrated 5-pin USB port facilitates effortless, wireless camera-control setup when used with SmallHD Smart Monitors. The kit also includes an improved long-range wireless video mode and new tools for high-end users to monitor their connections and signals, adding confidence to your workflow in challenging environments.

The Bolt 6 XT MAX 5000 is cross-compatible with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules. This allows for the expansion of your workflow requirements, with the ability to link up to 6 receivers to one transmitter, or unlimited receivers in Broadcast Mode. Experience a quieter wireless environment and faster connections with the Bolt 6 XT MAX 5000, your solution for superior wireless video transmission.

Teradek Bolt 6 XT Features

  • Zero-Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency
  • Bolt 4K Cross-Compatibility
  • Lightweight and Quiet
  • Built in 5-pin USB for camera control
  • Inputs: 12G-SDI, HDMI 2.0 (Transmitter Only)
  • Outputs: 12G-SDI, HDMI 2.0

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience stable connection with this Teradek Bolt 6 XT MAX wireless system.
  • Achieve high resolution video up to 5000' with near-zero latency, ideal for live broadcasts.
  • Enjoy easy setup with this wireless video transmitter and receiver kit, ready to use out-of-the-box.
  • Durable build quality ensures reliable performance in demanding production environments.
  • Transmit pristine 4K video with 12G-SDI/HDMI, perfect for professional filmmaking workflows.
  • This long range system supports multiple receivers, expanding monitoring capabilities on set.

What's in the box:

  • Bolt 6 XT MAX Transmitter (Gold Mount)
  • Bolt 6 XT MAX Receiver (Gold Mount)
  • Bolt 4K Tx Mounting Bracket
  • 3/8" Lightstand Adapter
  • Hot Shoe Adapter
  • 4x Phillips Flat Head Screw
  • 2x Screw Socket Cap (M3x16mm)
  • 2.5mm Hex L-Key
  • 2x 18" 2-Pin Connector to PowerTap Cable
  • 18" 2-Pin Connector to 2-Pin Connector (Alexa) Cable
  • 2x Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • (See Specification Section for Additional Included Items)
  • Teradek 1 Year Limited Warranty
