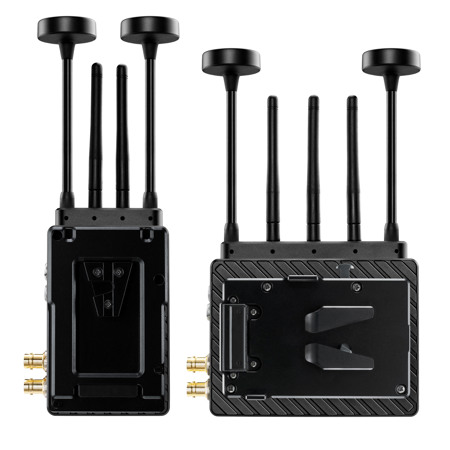

Teradek Bolt 6 XT MAX 5000 12G-SDI/HDMI Wireless Transmitter and Receiver Kit, V-Mount, 5000' Range

SKU: TE102319V MFR: 10-2319-V
Earn VIP Reward Points

Key Features

  • Experience reliable connection with the Bolt 6 XT MAX wireless transmitter/receiver kit.
  • Achieve stunning image quality with 12G-SDI/HDMI for professional video productions.
  • Enjoy low latency, visually lossless video transmission up to 5000' with this system.
  • Streamline your workflow with easy to use wireless video, perfect for on-location shoots.
  • This affordable price point unlocks high-end wireless capabilities for any filmmaker.
  • Benefit from long range wireless, transmitting to 6 receivers for expanded monitoring.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek 10-2319 Specifications

Includes

Includes

Jump to...
  • Additional Included Items

    2x 18" 12G-SDI BNC to BNC Cable
    6' PSU 2-Pin Connector to 30W AC Adapter (Int) Cable
    5x Standard Antenna
    4x Mushroom Antenna
    Wooden Camera Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16/5")
    3.28' USB 2.0 Type-A Male to USB Type-C Male Cable
    4x Bolt 6 XT Battery Cover (Front/Rear)
    Large Case

  • Video Inputs

    Transmitter:
    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • Video Outputs

    Transmitter:
    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)

    Receiver:
    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • SDI Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB 4:4:4, 8-bit

  • Delay Tx to Rx

    <0.001sec

  • Input Cross Conversion

    Transmitter: Yes, HDMI to SDI

  • Output Video Scaling

    Receiver: Yes, Framerate and Resolution Scaling

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Color Correction

    Transmitter: None
    Receiver: 17 x 17 x 17 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

  • Audio Input

    Transmitter: Embedded SDI/HDMI Audio Input (2 Channel)

Outputs

Jump to...
  • Audio Output

    Receiver: Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • USB Interface Functionality

    Upgrade via USB-C
    5-Pin Locking Connector CCU

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    Transmitter:
    2x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    2x Mushroom Antenna

    Receiver:
    3x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    2x Mushroom Antenna

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425 GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    Transmitter: 23 dbm EIRP
    Receiver: 21 dbm EIRP

  • Range

    Up to 5000' (1524m), line of sight

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Power Consumption

    Transmitter: 20 Watts
    Receiver: 18 Watts

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Transmitter: Multiple mounting options with 1/4"-20 and M3 holes
    Receiver: Multiple mounting options with 1/4"-20 and 3/8"-16 holes

  • Dimensions

    Transmitter: 5.20 x 3.58 x 1.06" (132 x 91 x 27mm)
    Receiver: 4.41 x 5.47 x 1.06" (112 x 139 x 27mm)

  • Weight

    Transmitter: 12.1 oz (344g)
    Receiver: 15.2 oz (430g)

  • UPC Code

    818264027271

About Teradek 10-2319

After revolutionizing wireless video transmission, the Bolt 6 XT MAX 5000 12G-SDI/HDMI Wireless Transmitter and Receiver Kit, V-Mount, takes the game to a whole new level. This advanced system supports 4K video transmission in real-time, leveraging Teradek's patented Zero-Delay technology. Now, experience less interference with the innovative use of the newly opened 6GHz wireless frequency.

The Bolt 6 XT MAX 5000 is designed to transmit and receive color-accurate, True-HDR videos in a staggering time of under 0.001 seconds. This is made possible with the included Bolt 6 XT video Transmitter and Receiver, both engineered for high-quality performance and reliability.

Key features of this innovative wireless transmitter and receiver kit include range options tailored to diverse production needs, lightning-fast reconnection times, and an intuitive setup process via the Bolt Manager App, available for both iOS and Android. Enjoy consistent, stable connectivity, even in the most challenging environments.

The Bolt 6 XT MAX 5000 utilizes the 6GHz band to deliver superior image quality and reduced interference. In high-traffic areas, this 6GHz wireless frequency provides users with more options for frequency adjustments, thanks to 12 new channels. Moreover, the Bolt 6 can pass metadata, timecode, and start/stop flags from most camera manufacturers, enhancing its compatibility and versatility.

Redesigned for seamless integration into your setup, the Bolt 6 XT MAX 5000 boasts a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K. An integrated 5-pin USB port facilitates effortless and wireless camera-control setup when using SmallHD Smart Monitors, and an improved long-range wireless video mode.

The Bolt 6 XT MAX 5000 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment. The included Transmitter and Receiver are cross-compatible with the entire Bolt 4K Series - including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules - giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode.

In a world where 5GHz frequency is crowded with Wifi routers, cell phones, IOT devices, and competitor wireless video systems, the Bolt 6 XT MAX 5000 uses the newly opened 6GHz wireless frequency for a dramatically quieter wireless environment. This ensures faster connections, less interference, and a superior wireless experience.

Teradek 10-2319 Features

  • Zero-Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency
  • Bolt 4K Cross-Compatibility
  • Lightweight and Quiet
  • Built in 5-pin USB for camera control
  • Inputs: 12G-SDI, HDMI 2.0 (Transmitter Only)
  • Outputs: 12G-SDI, HDMI 2.0

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience reliable connection with the Bolt 6 XT MAX wireless transmitter/receiver kit.
  • Achieve stunning image quality with 12G-SDI/HDMI for professional video productions.
  • Enjoy low latency, visually lossless video transmission up to 5000' with this system.
  • Streamline your workflow with easy to use wireless video, perfect for on-location shoots.
  • This affordable price point unlocks high-end wireless capabilities for any filmmaker.
  • Benefit from long range wireless, transmitting to 6 receivers for expanded monitoring.

What's in the box:

  • Bolt 6 XT MAX Transmitter (V-Mount)
  • Bolt 6 XT MAX Receiver (V-Mount)
  • Bolt 4K Tx Mounting Bracket
  • 3/8" Lightstand Adapter
  • Hot Shoe Adapter
  • 4x Phillips Flat Head Screw
  • 2x Screw Socket Cap (M3x16mm)
  • 2.5mm Hex L-Key
  • 2x 18" 2-Pin Connector to PowerTap Cable
  • 18" 2-Pin Connector to 2-Pin Connector (Alexa) Cable
  • 2x Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • (See Specification Section for Additional Included Items)
  • Teradek 1 Year Limited Warranty
